Quick Details
-
Main Circuit Rating Voltage:
-
380v
-
Main Circuit Rating Current:
-
125A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GLC1-95 380V
-

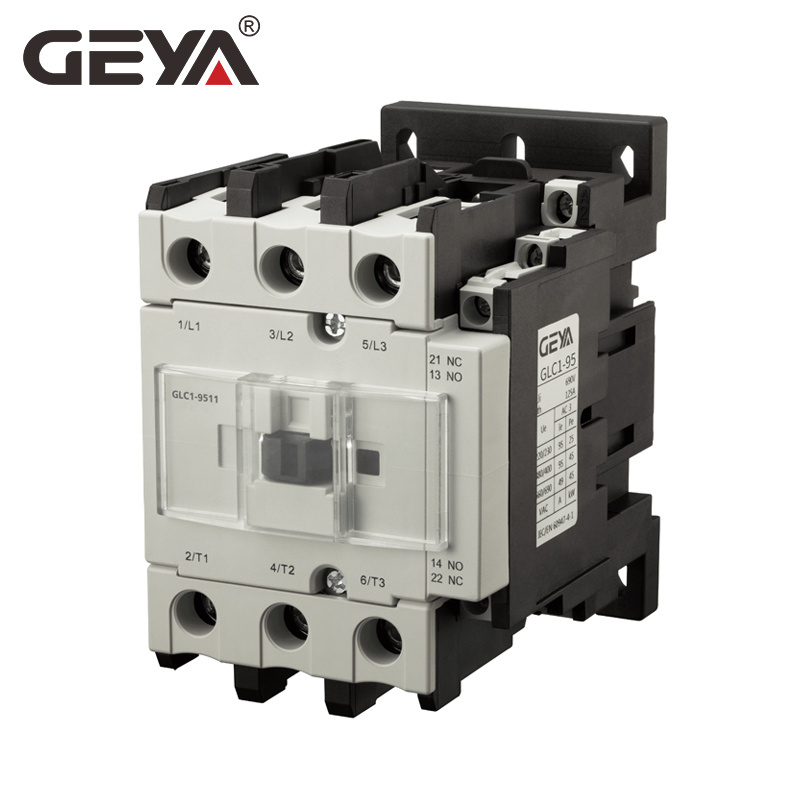

Product Name:
-
GLC1-95 380V
-
Model NO:
-
NLC1D-5010 OR NLC1D5001
-
Frequency:
-
50/60HZ
-
Rated Working Voltage:
-
up to 660V
-
Rated Working Current:
-
up to 95A
-
Incategory:
-
AC-3
-
Standard:
-
IEC60947-1
-
Certificate:
-
CE ISO9001
-
Guarantee:
-
2 Years
-
MOQ:
-
20PCS
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
380v
-
Main Circuit Rating Current:
-
125A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GLC1-95 380V
-
Product Name:
-
GLC1-95 380V
-
Model NO:
-
NLC1D-5010 OR NLC1D5001
-
Frequency:
-
50/60HZ
-
Rated Working Voltage:
-
up to 660V
-
Rated Working Current:
-
up to 95A
-
Incategory:
-
AC-3
-
Standard:
-
IEC60947-1
-
Certificate:
-
CE ISO9001
-
Guarantee:
-
2 Years
-
MOQ:
-
20PCS
············This link price is only for
GLC1-95 380V············
Product Description
General
Application
GEYA NLC1D series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to 1000V,rated operation current 9~150A under AC-3 duty.It is mainly used for making and breaking electric circuits at a long distance & for frequent starting, stopping & controlling AC Motors.It is used in combination with thermal relay to compose a magnetic motor starter. The products comply with IEC60947-4. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical-interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter.
Specification
|
Type
|
Rated working current (A)
|
|
Rated heat current (A)
|
AC3 capacity of three-phase squirrel-cage motor AC3(KW)
|
|
|
|
|
|||||
|
|
|
|
|
220/230V
|
380/400V
|
415V
|
440V
|
600/690V
|
|||||
|
|
AC3
|
AC4
|
|
KW
|
KW
|
KW
|
KW
|
KW
|
|||||
|
LC1-D09
|
9
|
3.5
|
20
|
2.2
|
4
|
4
|
4
|
5.5
|
|||||
|
LC1-D12
|
12
|
5
|
20
|
3
|
5.5
|
5.5
|
5.5
|
7.5
|
|||||
|
LC1-D18
|
18
|
7.7
|
32
|
4
|
7.5
|
9
|
9
|
10
|
|||||
|
LC1-D25
|
25
|
8.5
|
40
|
5.5
|
11
|
11
|
11
|
15
|
|||||
|
LC1-D32
|
32
|
12
|
50
|
7.5
|
15
|
15
|
15
|
18.5
|
|||||
|
LC1-D40
|
40
|
18.5
|
60
|
11
|
18.5
|
22
|
22
|
30
|
|||||
|
LC1-D50
|
50
|
24
|
80
|
15
|
22
|
25
|
30
|
33
|
|||||
|
LC1-D65
|
65
|
28
|
80
|
18.5
|
30
|
37
|
37
|
37
|
|||||
|
LC1-D80
|
80
|
37
|
110
|
22
|
37
|
45
|
45
|
45
|
|||||
|
LC1-D95
|
95
|
44
|
125
|
25
|
45
|
45
|
45
|
45
|
|||||
Packing List
|
Item
|
pcs/ctn
|
Product Weight
|
N.W(kg)
|
G.W(kg)
|
Size
|
|
GLC1-09/12
|
50.00
|
0.33
|
16.63
|
17.52
|
410mm×265mm×205mm
|
|
GLC1-18
|
50.00
|
0.35
|
17.48
|
18.37
|
410mm×265mm×205mm
|
|
GLC1-25
|
40.00
|
0.53
|
21.04
|
22.40
|
377mm×327mm×225mm
|
|
GLC1-32
|
40.00
|
0.54
|
21.44
|
22.80
|
377mm×327mm×225mm
|
|
GLC1-40
|
20.00
|
1.34
|
26.73
|
27.94
|
415mm×275mm×255mm
|
|
GLC1-50
|
20.00
|
1.34
|
26.73
|
27.94
|
415mm×275mm×255mm
|
|
GLC1-65
|
20.00
|
1.34
|
26.73
|
27.94
|
415mm×275mm×255mm
|
|
GLC1-80/95
|
16.00
|
1.36
|
21.68
|
22.84
|
385mm×275mm×280mm
|
