Quick Details
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
MINGSHUN
-
Voltage:
-
V380v
-
Dimension(L*W*H):
-
3600*1100*2100mm
-
Power (kW):
-
55
-
Weight:
-
6300 KG
-
Automatic Grade:
-
Automtic
-
Usage:
-
Production of PVC plastic pipes
-
Final product:
-
PVC pipe
-
Motor brand::
-
Siemens Beide
-
Raw material:
-
PVC Powder
-
Contactor:
-
Siemens or Schneider
-
Temperature controller:
-
RKC or OMRON
-
Main inverter brand:
-
Siemens or ABB
-
Product name:
-
PVC pipe making machine
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
132:1
-
Screw Speed (rpm):
-
70 rpm
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
MINGSHUN
-
Voltage:
-
V380v
-
Dimension(L*W*H):
-
3600*1100*2100mm
-
Power (kW):
-
55
-
Weight:
-
6300 KG
-
Automatic Grade:
-
Automtic
-
Usage:
-
Production of PVC plastic pipes
-
Final product:
-
PVC pipe
-
Motor brand::
-
Siemens Beide
-
Raw material:
-
PVC Powder
-
Contactor:
-
Siemens or Schneider
-
Temperature controller:
-
RKC or OMRON
-
Main inverter brand:
-
Siemens or ABB
-
Product name:
-
PVC pipe making machine
Product Description
One cavity PVC Production Line
Two cavities PVC Production Line
Four cavities PVC Production Line
Auxiliary Machines: Plastic Crusher / Plastic Mixer Machine / Pulverizer / Water Chiller
Application :
PVC pipe is widely used for drainage and water supply of agriculture and buildings, cable laying pipe, wire threading pipe, house decoration, etc.
PVC pipe is widely used for drainage and water supply of agriculture and buildings, cable laying pipe, wire threading pipe, house decoration, etc.
Technical Parameters
| Model/Item | Pipe range(mm) | Extruder | Max(output)kg/h | Max speed(m/min) | Total power(kw) |
| PVC-50x2 | 16-50mm | SJSZ65/132 | 250kg/h | 10m/min | 85kw |
| PVC-63 | 16-63 | SJSZ51/105 | 150 | 10 | 60 |
| PVC-110 | 50-110 | SJSZ55/110 | 180 | 10 | 70 |
| PVC-160 | 63-160 | SJSZ65/132 | 300 | 5 | 90 |
| PVC-250 | 110-250 | SJSZ80/156 | 400 | 3.5 | 120 |
| PVC-315 | 160-315 | SJSZ80/156 | 400 | 3 | 160 |
| PVC-450 | 250-450 | SJSZ92/188 | 700 | 1.5 | 200 |
| PVC-630 | 315-630 | SJSZ92/188 | 700 | 0.9 | 230 |
Production process:
preparation of raw materials + additives → mixing → feeding →conical twin-screw extruder → extrusion die →
Vacuum calibration tank
→ printer →
haul-off
→ cutter → pipe stacking rack → finished product inspection and packaging.

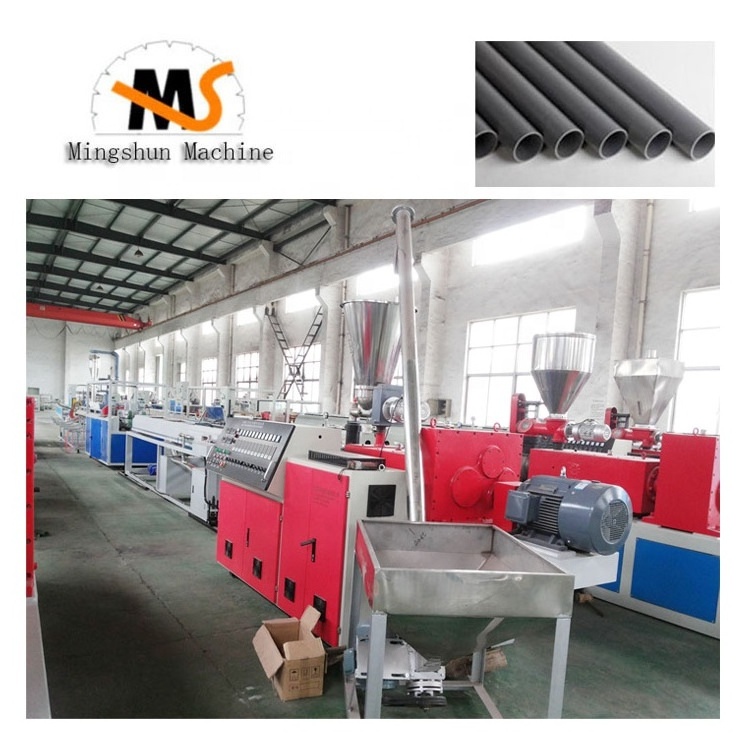

PVC one-cavity production line
This production line is mainly applicable to production
Φ20-Φ630
PVC pipes
of various wall thicknesses.It
is composed of
screw feeder, conical twin screw extruder,extrusion die, vacuum calibration tank,haul-off, motors, cutter and stacker etc.
The extruder and haul off methods are two-claw, three-claw, four-claw, six-claw, eight-claw, ten-claw, twelve claw etc. You may choose saw blade cutting type or planetary cutting type.
It is aditionaly attached with length counter and intensifying device. This line with reliable performance and high production eficiency. Our company can also manufacture special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your requirements.
PVC two-cavity production line
The production line is developed with the advanced technology of west Europe which is brought by separate-control double tube extruding by our company. This line is mainly applicable to double-cavity which has Φ16-40mm or Φ16-63mm . The main machine is SJSZ55/110 or SJSZ65/132 conical twin screw extruder is equipped with double-tubesingle control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine arecombined with the front double calibration technology to make operation more flexible let you enjoy economic benefit.
The production line is developed with the advanced technology of west Europe which is brought by separate-control double tube extruding by our company. This line is mainly applicable to double-cavity which has Φ16-40mm or Φ16-63mm . The main machine is SJSZ55/110 or SJSZ65/132 conical twin screw extruder is equipped with double-tubesingle control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine arecombined with the front double calibration technology to make operation more flexible let you enjoy economic benefit.
PVC four-cavity production line
Four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time onone machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65/132 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mm as example can get more than 8-10m/min.The whole line is composed of conical twin-screw extruder 65/132,4 cavity mould,4 cavity coling 4 calibration tank,4 station haul off,4 station cutter and 4 station tipping table.
Four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time onone machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65/132 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mm as example can get more than 8-10m/min.The whole line is composed of conical twin-screw extruder 65/132,4 cavity mould,4 cavity coling 4 calibration tank,4 station haul off,4 station cutter and 4 station tipping table.
