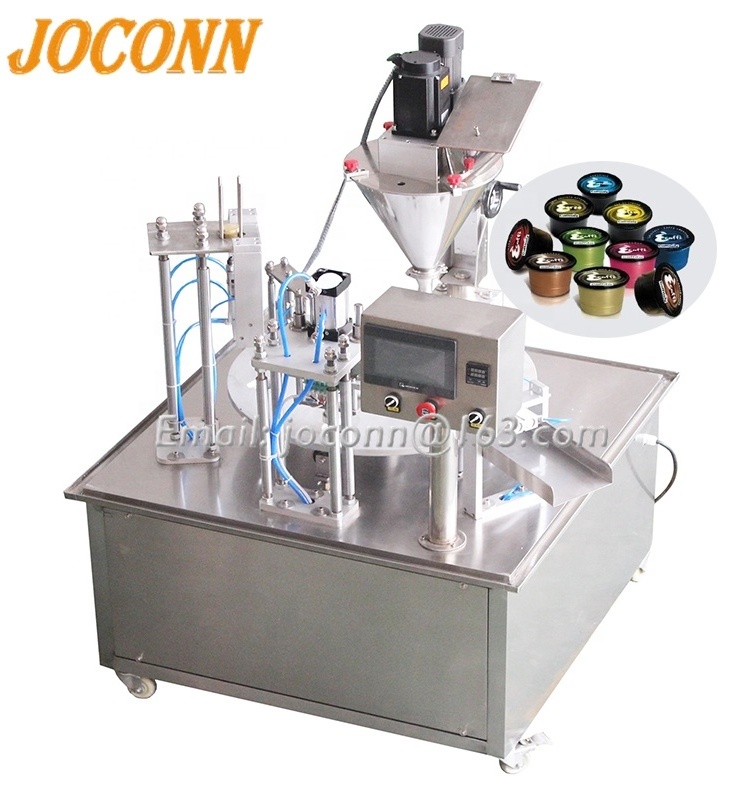

Fully Automatic Nespresso K cup Coffee Capsules Filling Sealing Machine/ Capsule coffee Filling Machine nespresso

Rotary  Fully Automatic Nespresso K cup Coffee Capsules Filling Sealing Machine/  Capsule coffee Filling Machine  nespresso

whatsapp / wechat +86 150 9322 8930

Introduction

this rotary cup filling and sealing machine is Suitable for filling plastic containers with various materials and sealing.
1 Suitable packagings: wide vials of various sizes, canisters, drums, rigid tanks, irregular rigid containers with flat sealing edges , etc..

2 Container material: Including PP, PE, PET, etc., and at the same time use the corresponding sealing film seals, such as PP film, PE film, composite film, easy to tear film, aluminum foil film and so on.

3 Applicable object: Packing material is liquid, paste, granules, block or powder material. Such as: edible oil, fresh milk , jogurt soy sauce, jam, coconut fruit, candy, popcorn ,rice ,spices, popcorn, soup, coffee powder,cacao bean powder,pudding, tea leaf, chili sauce, candy, biscuits and so on.

4 Applicable industries: catering, food, daily, medicine, tobacco, wine, clothing, chemical, home textiles, gifts, crafts, toys, hardware, machinery.

parameters

filling sealing type

features of automatic rotary cup filling and sealing machine
1, frame part: using high-quality carbon steel welding, can also be made of stainless steel, overlaid stainless steel, contact with the ground is equipped with strong bolts.
2, transmission system: motor, reducer, convex wheel separator, template, transmission chain, etc..
3, drop cup system: from the frame, slide track, storage cup warehouse, push cup cylinder and so on. By PLC control system, the signal synchronization control action is completed when the template stops.
4, filling system: storage cylinder is stainless steel 304 material, cylinder stroke work piston quantitative filling, non-contact filling, filling can be freely adjusted, quantitative accurate, with liquid level control device.
5, code system: automatic color band code(constant temperature control) adjustable, can quickly change the word code. Easy to handle.
6, the correct film system: photoelectric eye tracking automatic correction film pattern and cup mouth positive.
7, release cover system: from the cover warehouse, rotating cylinders, mechanical arms, suction cups, etc.(vacuum generator) film.
8, sealing system: using constant temperature(intelligent temperature control) hot pressure two seals, sealed orally for copper, aluminum combination, easy to replace. Sealing pressure adjustable.
9, cutting membrane mechanism: cold rush cut, cut out the film tape easy to tear mouth, convenient opening.
10, cup out system: sliding track, sliding block, variable speed motor, installation support composition.
11, control system: adopting Oumulong relay, PLC programmable control, the main components are well-known brands at home and abroad.
12 Automatic rotary cups filling sealing machines  are non-standard products, can be customized for a variety of cup-box, liquid, powder, granule and other products packaging.

structure Pictures

one filling nozzle model

double filling nozzles

products shows
