Quick Details
-
Warranty:
-
1 year
-
Rating Power:
-
120W
-
Operation Time:
-
1.5S, 1.8S, 3S, 6S
-
Arm Type Staight arm:
-
90 degree arm, 180 degree arm
-
Rating Voltage:
-
AC 220V/110V±10%, 50/60HZ
-
Mould Production:
-
High Accuracy
-
Material:
-
Galvanized plate or Cold roll plate
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUTAI, JUTAI
-
Model Number:
-
BR-110, BR-110
-
Warranty:
-
1 year
-
Rating Power:
-
120W
-
Operation Time:
-
1.5S, 1.8S, 3S, 6S
-
Arm Type Staight arm:
-
90 degree arm, 180 degree arm
-
Rating Voltage:
-
AC 220V/110V±10%, 50/60HZ
-
Mould Production:
-
High Accuracy
-
Material:
-
Galvanized plate or Cold roll plate
- 1pc/pp bag, carton for outsdie packing
- Lead Time :
-
Quantity(Units) 1 - 100 101 - 500 >500 Est. Time(days) 5 13 To be negotiated - High-quality spring Bottom anti-dip strip automatic Barrier Gate Operator for Security Area

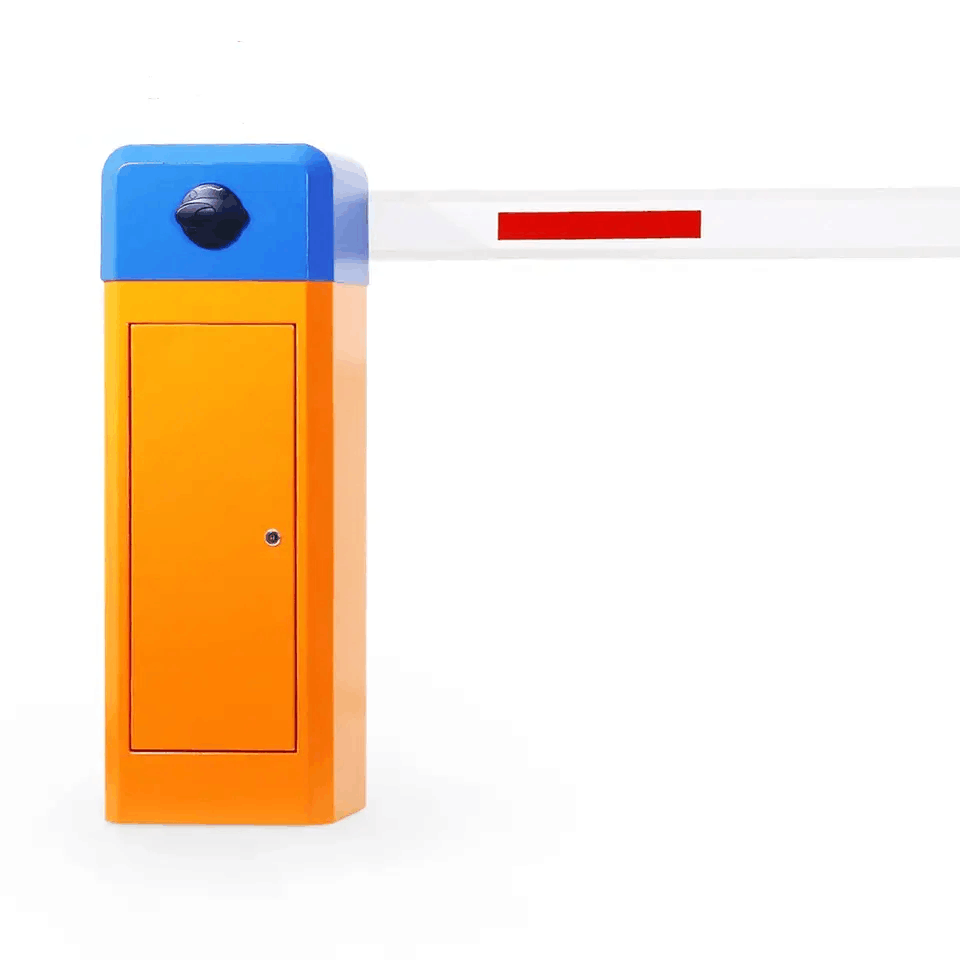

Barrier Gate Operator plays an important part in allowing access to your security area. Jutai automatic barrier gates can make sure only the authorized visitors are entering your premises. As the leading parking barrier gate manufacturer, Jutai produces reliable security barrier gate arm along with high-quality vehicle loop detectors, photocell beam sensors, RFID long range readers. If you need all parking hardware parking lot gate operator equipment, JUTAI is your best choice. An automatic parking lot Barrier Gate can be opened or closed by push button, remote control, RFID long range tags/cards, loop detectors, infrared sensors, and third party access control system.
JUTAI boom barrier advantages:
Gate Motor
: JUTAI motors are uniquely designed and patented. The motor is made of copper, Hall limiter, thermal protection.
Automatic Gate Control board:
JUTAI control board adopts imported components. The circuit adopts advanced MCU and Japanese original Omron high-power relay as the core design. Using mature computer control technology, it develops a new generation intelligent control system, which realizes the intelligent control of gates and other controls.
High-quality spring:
The tension and the relaxation of the spring are used to achieve a stable rise and fall of the control boom gate. The JUTAI boom gate spring is a double spring, which has the advantages of long service life and corrosion resistance.
Process materials:
The thickness of the sheet metal is 2.0mm. The cabinet is designed with a waterproof structure and the surface is treated with a phosphating process. JUTAI spraying, high-temperature baking, and car top coating make the chassis in the outdoor harsh environment. It has the characteristics of anti-corrosion, anti-rust, anti-ultraviolet radiation and sun exposure, which is not easy to have the problem of color fading. Compared with other company’s 1.5mm cabinets, it is more durable and not easy to fade color.
Bottom anti-dip strip:
In areas with heavy rain, the gates are often easily immersed in water containing acidic and viscous materials, causing the cabinet to be damaged by corrosion and rust. JUTAI barrier gates are intimately provided with anti-dip strips, which greatly increases the product servicing life.
Anti-collision boom:
JUTAI automatic boom gates are equipped with an anti-collision arm. When receiving the impulse generated by the impact of the vehicle, the brakes will quickly bounce back to prevent the car from breaking and will not damage the motor.
Double protection against damage:
JUTAI also provides infrared photocell beam sensors and vehicle loop detectors for anti-smashing vehicles
