Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ROMEROCA
-
Dimension(L*W*H):
-
2950*1260*2150 MM
-
Weight:
-
10000 KG
-
Brand::
-
Romeroca
-
Capacity::
-
8-10 Cartons/Min 10,000 Sq.m./10H
-
Power::
-
55KW
-
Working length:
-
915-1524mm for flooring
-
Working width:
-
152-288mm for flooring
-
Working thickness:
-
30-80mm for boxes
-
Speed:
-
8-10 boxes/min
-
Power:
-
55KW
-
Air:
-
7kg/cm2
Quick Details
-
Application:
-
APPAREL
-
Packaging Material:
-
Plastic, Paper
-
Voltage:
-
380 V, 380V/50HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ROMEROCA
-
Dimension(L*W*H):
-
2950*1260*2150 MM
-
Weight:
-
10000 KG
-
Brand::
-
Romeroca
-
Capacity::
-
8-10 Cartons/Min 10,000 Sq.m./10H
-
Power::
-
55KW
-
Working length:
-
915-1524mm for flooring
-
Working width:
-
152-288mm for flooring
-
Working thickness:
-
30-80mm for boxes
-
Speed:
-
8-10 boxes/min
-
Power:
-
55KW
-
Air:
-
7kg/cm2
Product Description

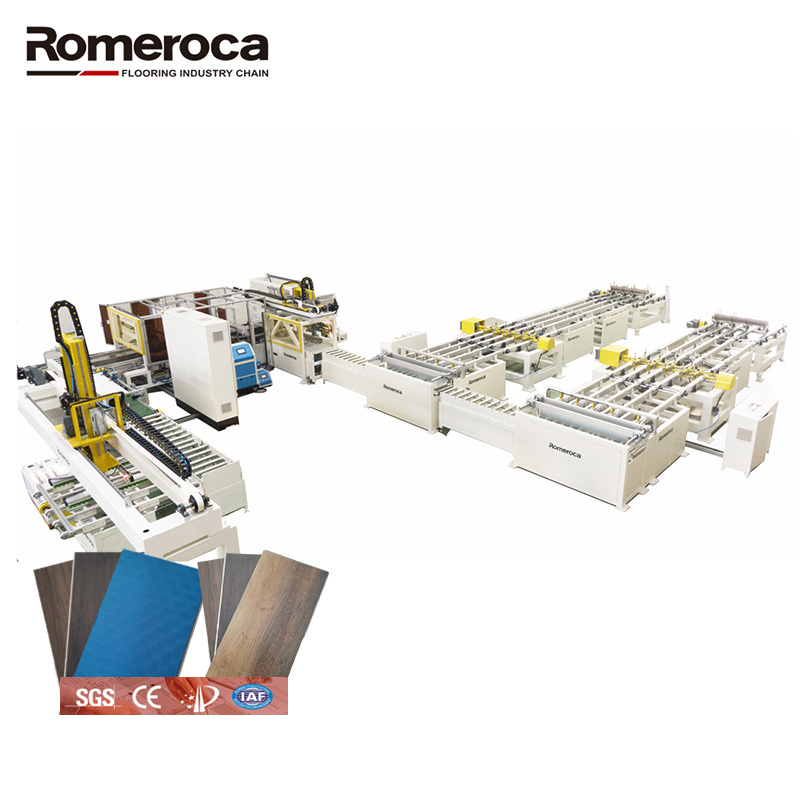

SPC Flooring Production Line
Automatic Packing Machine
|
Brand:
|
Romeroca
|
|
Capacity:
|
8-10 Cartons/Min 10,000 Sq.m./10H
|
|
Power:
|
55KW
|
Features of Romeroca SPC Flooring Automatic Packing Machine:
--Reducing labor intensity.
--Automatic feeding for the complete packaging line.
--Improve packaging quality and protecting the environment.
--Touch screen display packing speed,temperature,capacity,length etc.
--Improve working conditions, reduce floor space, reduce production costs.
--The application of IT technology and sensing technology improves the quality of the packaging automation line.
--The conveyor belt is automatically speed regulated by frequency converter and each conveyor belt is independent.
--Each machine on the production line can be matched, and other equipment can be added at any time in the future.
--Reducing labor intensity.
--Automatic feeding for the complete packaging line.
--Improve packaging quality and protecting the environment.
--Touch screen display packing speed,temperature,capacity,length etc.
--Improve working conditions, reduce floor space, reduce production costs.
--The application of IT technology and sensing technology improves the quality of the packaging automation line.
--The conveyor belt is automatically speed regulated by frequency converter and each conveyor belt is independent.
--Each machine on the production line can be matched, and other equipment can be added at any time in the future.
Romeroca automatic packing machine, it adopts German technology and Chinese top 3 SPC factories are all use it . One set of machine can join two lines of IXPE/EVA padding laminating machine, production capacity has been greatly increased and saving labor cost.
Automatic packing line includes turn-over machine, inspection conveyor, Flip-flap, boards counting, steer conveyor, processing conveyor, automatic packing machine, glue spray system, control system and pallet stacking machine.Romeroca automatic packing machine sells well in European countries like Russia, Polland and the country like Saudi Arabia and Vietnam also has the large demand.
Device List of SPC Flooring Automatic Packing Machine
|
NO.
|
Item
|
Description of Machine
|
QTY
|
|
1
|
Automatic Packing Machine
|
1-1 Automatic Packing Machine
|
1
|
|
|
|
1-2 Glue Spray System
|
1
|
|
|
|
1-3 Control System
|
1
|
|
|
|
1-4 Double-station Pallet Stacking Machine
|
1
|
|
2
|
Connection line for Packing Machine
|
2-1 Turn-over Machine
|
2
|
|
|
|
2-2 Inspection Conveyor
|
2
|
|
|
|
2-3 Filp-Flap
|
2
|
|
|
|
2-4 Boards Counting
|
2
|
|
|
|
2-5 Steer Conveyor
|
2
|
|
|
|
2-6 Processing Conveyor
|
2
|
Technical Details of SPC Flooring Automatic Packing Machine
|
No.
|
Specification
|
Remark
|
|
1
|
Size of machine
|
See drawing
|
|
2
|
Working length
|
915-1524mm for flooring
|
|
3
|
Working width
|
152-288mm for flooring
|
|
4
|
Working thickness
|
30-80mm for boxes
|
|
5
|
Speed
|
8-10 boxes/min
|
|
6
|
Power
|
55KW
|
|
7
|
Voltage
|
380V/50HZ
|
|
8
|
Air
|
7kg/cm2
|
|
9
|
Materials
|
IXPE/EVA/SPC flooring/Melt glue
|
What we are offering about SPC flooring project?
1.SPC flooring full production line:
SPC flooring Extruder machine, Mixer, Crushing & Mill machine, UV coating machine, Click slotting machine,Cutting machine, V-groove painting machine, IXPE/EVA lamination machine, Packing machine.
2.Raw materials for producing rigid core PVC flooring:
Chemicals: PVC SG5, stabilizer, ACR , CPE , PVC lubricant, PE wax.
Wear- resisting layer , PVC decor Film , IXPE/EVA underlayment, UV paint.
Romeroca already supplied 20 million meters of PVC decor film to global market.
To save shipping cost for our partners, Romeroca can mix different raw materials to ship together.
3.Spare parts for SPC flooring manufacturing line:
PCD cutters, PCD saw blades, Extruder mould, surface rollers, Screw & barrel, UV rollers, UV lamps.Romeroca can supply all kinds of accessories for all machines of rigid core vinyl flooring production.
4.Test equipments for SPC flooring factory:
Romeroca can supply all kinds of test equipments that SPC flooring manufacturing factory needs. For example: Drying Oven, Tensile tester, Wear tester, Scratch Tester, Click Strengthen tester, Click Projector, and so on.
Full production processes of SPC flooring
1. Crushing + Milling
During the SPC production process， it will generate some fragment waste materials. The Crusher and Miller can be used to crush and grind these SPC waste materials into powder, which can be recycled into the raw materials for the production of SPC. The recycled SPC material is also a necessary ingredient in the raw material ratio.
2. Mixing
Put the raw materials into a high-speed mixer for hot mixing according to a certain ratio, so that the various materials are mixed uniformly, and the moisture in the materials is removed, and then enter the cold mixer to cool the materials to prevent agglomeration and discoloration. The materials are mixed uniformly by cooling.
3. Extrusion
The mixed materials are put into the extruder, extruded by twin cone screw, and formed into sheet shape through the die. Then through four-roller/five-roller calendering unit, the wear-resistant layer and color film are laminated on the sheet by heat, to form the SPC board.
4. UV coating
A layer of UV paint is coated on the surface of the SPC board by the UV coating machine, which has the functions of preventing dust, scratching, increasing abrasion resistance, and making the glossy more uniform.
5. Cutting
Use automatic multiple ripsaw to cut the big SPC board into the small planks of the required size.
6. Slotting
Through the longitudinal and transverse double-end tenoner slotting machine, four sides edges of the SPC plank after cutting are processed into certain lock shape. The important thing is that need to choose the suitable click system and the perfect Polycrystalline diamond (PCD) click profiling cutters.
7. V-groove Painting
In global market some customers prefer to the edges of SPC flooring to be V-groove and painted with paint, similar to the edges of laminate flooring. They think this kind of flooring looks nicer. Of course, this is an optional working process.
8. IXPE/ EVA underlay laminating
Use hot melt adhesive to stick IXPE /EVA underlay on the back of the SPC flooring, which can make the flooring have better sound insulation effect and better walk feeling. Such products are more high-end.
9. Packing
Choose packing machine with different degrees of automation according to your needs, and there are fully automatic and
semi-automatic machines can be optional.
During the SPC production process， it will generate some fragment waste materials. The Crusher and Miller can be used to crush and grind these SPC waste materials into powder, which can be recycled into the raw materials for the production of SPC. The recycled SPC material is also a necessary ingredient in the raw material ratio.
2. Mixing
Put the raw materials into a high-speed mixer for hot mixing according to a certain ratio, so that the various materials are mixed uniformly, and the moisture in the materials is removed, and then enter the cold mixer to cool the materials to prevent agglomeration and discoloration. The materials are mixed uniformly by cooling.
3. Extrusion
The mixed materials are put into the extruder, extruded by twin cone screw, and formed into sheet shape through the die. Then through four-roller/five-roller calendering unit, the wear-resistant layer and color film are laminated on the sheet by heat, to form the SPC board.
4. UV coating
A layer of UV paint is coated on the surface of the SPC board by the UV coating machine, which has the functions of preventing dust, scratching, increasing abrasion resistance, and making the glossy more uniform.
5. Cutting
Use automatic multiple ripsaw to cut the big SPC board into the small planks of the required size.
6. Slotting
Through the longitudinal and transverse double-end tenoner slotting machine, four sides edges of the SPC plank after cutting are processed into certain lock shape. The important thing is that need to choose the suitable click system and the perfect Polycrystalline diamond (PCD) click profiling cutters.
7. V-groove Painting
In global market some customers prefer to the edges of SPC flooring to be V-groove and painted with paint, similar to the edges of laminate flooring. They think this kind of flooring looks nicer. Of course, this is an optional working process.
8. IXPE/ EVA underlay laminating
Use hot melt adhesive to stick IXPE /EVA underlay on the back of the SPC flooring, which can make the flooring have better sound insulation effect and better walk feeling. Such products are more high-end.
9. Packing
Choose packing machine with different degrees of automation according to your needs, and there are fully automatic and
semi-automatic machines can be optional.
