Quick Details
-
Brand Name:
-
CARSPA,OEM
-
Model Number:
-
MPPT2480D
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
1920w
-
Max PV Voltage:
-
90v
-
Certificate:
-
CE, ROHS, CE RoHS
-
Warranty:
-
24 months, 2 years
-
Rated Voltage:
-
24V
-
Charge mode:
-
Maximum Power Point Tracking
-
Battery type:
-
All rechargeable lead-acid battery
-
PV voltage range:
-
30-90V
-
Dimension:
-
29*17.6*9.5cm
-
Gross Weight:
-
2810g
-
Case protection:
-
IP20
-
Colour:
-
Silver,red
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CARSPA,OEM
-
Model Number:
-
MPPT2480D
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
1920w
-
Max PV Voltage:
-
90v
-
Certificate:
-
CE, ROHS, CE RoHS
-
Warranty:
-
24 months, 2 years
-
Rated Voltage:
-
24V
-
Charge mode:
-
Maximum Power Point Tracking
-
Battery type:
-
All rechargeable lead-acid battery
-
PV voltage range:
-
30-90V
-
Dimension:
-
29*17.6*9.5cm
-
Gross Weight:
-
2810g
-
Case protection:
-
IP20
-
Colour:
-
Silver,red

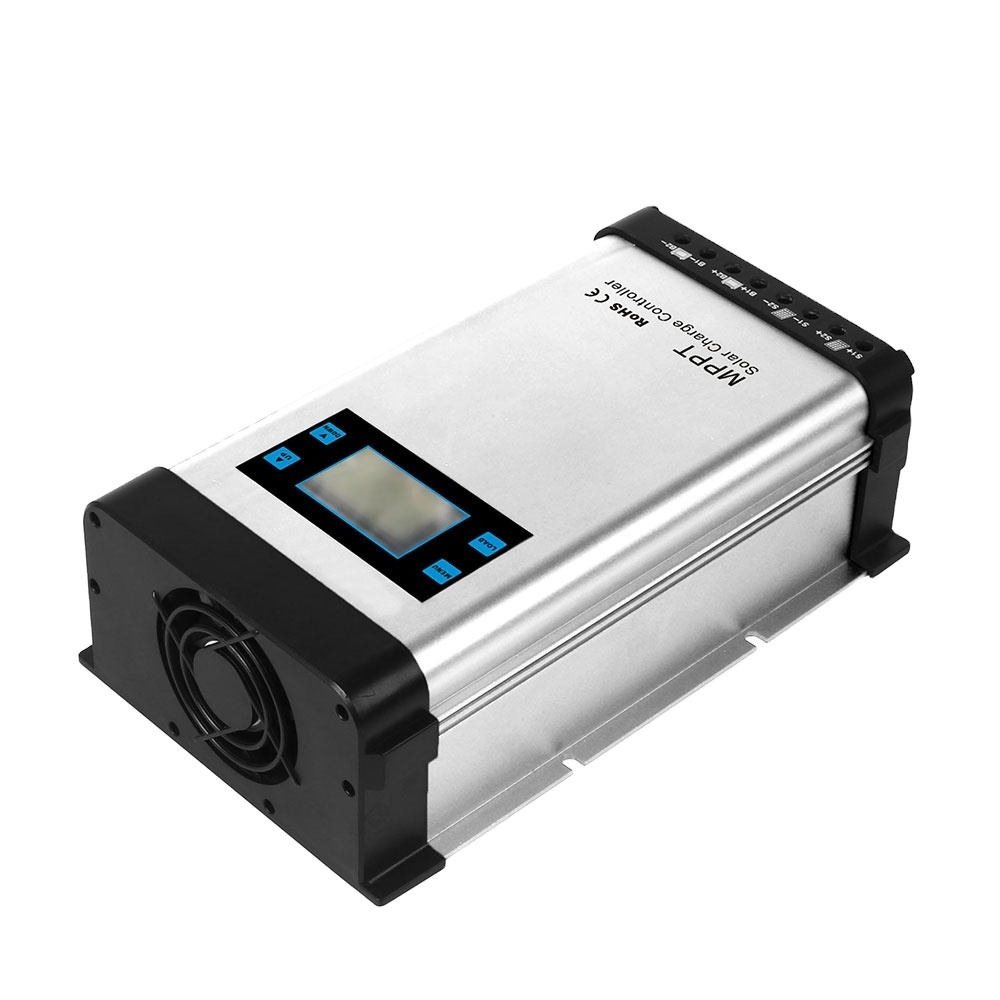

12v/24v/48v 80amp mppt solar controller,mppt solar voltage regulator with lcd/led display
Hot sale products
Click pictures to check our most popular products ↓
Product description
Introduction:
CARSPA MPPT solar controller (also known as an intelligent solar charge controller, solar charge controller, PV controller)
can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve.
Compared with ordinary solar controller,
this MPPT controller can increase the efficiency of PV modules by 10%-30%.
CARSPA- MPPT solar controllers 10A--80A include 12V series, 24V series and 48V series.
Product features:
1.Applicable to various types of batteries,
2.MPPT function,high efficiency of 99%.
3.Automatically detects 12/24V system voltage.
4.LCD display function.
5.Dual terminals for solar input.
6.Temperature sensor battery charging compensation.
7.Multiple protection function-Overload protection,over charge protection,short circuit protection,thunder protection,reverse discharge,reverse connection,under voltage protection.
This is our specification ↓
| Model | MPPT2440D | MPPT2450D | MPPT2460 | MPPT2480D |
| Working voltage of the battery | 24V | |||
| Module voltage | 30-90V | |||
| Battery type | 24V rechargeable lead-acid battery(AGM,GEL) | |||
| Max module/charge current | 40A | 50A | 60A | 80A |
| Own consumption,active | 15mA | |||
| Maximum PV input power | 1440 watts | 1800 watts | 2160 watts | 2880 watts |
| Own consumption,standby | <1mA | |||
| Own consumption with load connected | 130mA | |||
| Constant voltage charge | 29.2V(28-30V settable) | |||
| Low disconnect voltage | 22V(20.8-22.8V settable) | |||
| Low reconnect voltage | 25.6V(24.4-26.4V settable) | |||
| Case protection | IP20 | |||
| LCD screen display | Battery voltage,PV charge current ,Load discharge current, total PV charge Ah ,total discharge Ah, the setting of constant voltage charging ,the setting of low voltage disconnect,the setting of low voltage reconnet | |||
