Quick Details
-
Brand Name:
-
Tianxiang
-
Model Number:
-
TXZC3
-
Max. Working Pressure:
-
100MPA
-
IP level:
-
IP65
-
Power:
-
DC24V±5%/AC220V±5%
-
Range:
-
-0.1-100MPa
-
Setting range:
-
20%FS-80%FS (best)
-
Product name:
-
Intelligent Pressure Switch
-
Overload:
-
180%FS
-
Display:
-
4 figures LCD
-
Accuracy:
-
0.5%FS
-
Enclosure protection class:
-
IP65
-
Process connection:
-
Stainless steel 304 M20x1.5(normal)
-
Repeatability error:
-
≤0.3%FS
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tianxiang
-
Model Number:
-
TXZC3
-
Max. Working Pressure:
-
100MPA
-
IP level:
-
IP65
-
Power:
-
DC24V±5%/AC220V±5%
-
Range:
-
-0.1-100MPa
-
Setting range:
-
20%FS-80%FS (best)
-
Product name:
-
Intelligent Pressure Switch
-
Overload:
-
180%FS
-
Display:
-
4 figures LCD
-
Accuracy:
-
0.5%FS
-
Enclosure protection class:
-
IP65
-
Process connection:
-
Stainless steel 304 M20x1.5(normal)
-
Repeatability error:
-
≤0.3%FS
Product Description

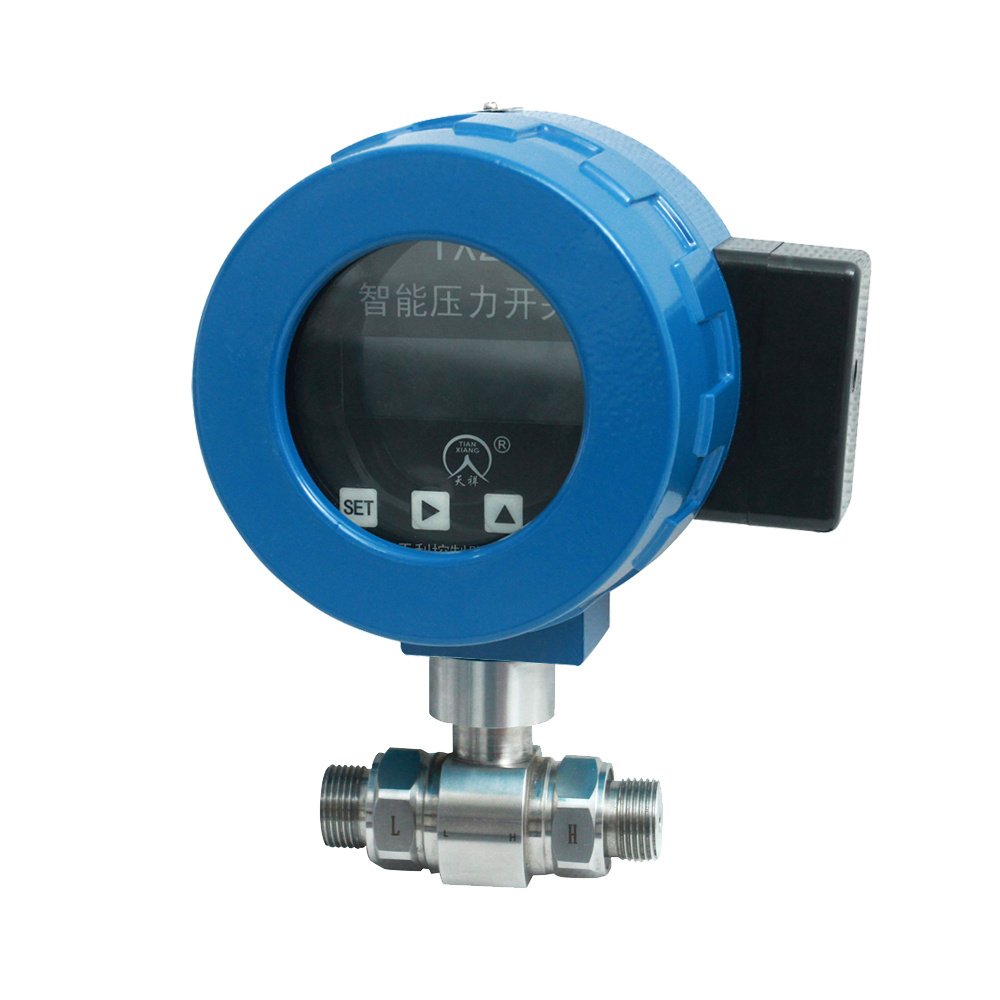

TXZC3 Intelligent Pressure Switch
TXZC3
Intelligent differential pressure switch
TXZ is intelligent type pressure switch with the German ceramic piezoresistive sensor technology, combined with high-precision industrial circuit elements gathered together with high stability and non-contact type.
Specification
|
Basic data
|
|
|
|
Power
|
DC24V±5%/AC220V±5%
|
|
|
Range
|
-0.1-100MPa
|
|
|
Setting range
|
20%FS-80%FS （best）
|
|
|
Overload
|
180%FS
|
|
|
Display
|
4 figures LCD
|
|
|
Accuracy
|
0.5%FS
|
|
|
Repeatability error
|
≤0.3%FS
|
|
|
Temperature drift
|
≤0.1%FS
|
|
|
Enclosure protection class
|
IP65
|
|
|
Output type
|
|
|
|
Switch output
|
Type:PNP / SPST
|
|
|
|
Operating life: PNP/SPST≥1,000,000 times SPST≥100,000 times
|
|
|
+
+ |
Response:PNP≤10ms
|
|
|
|
SPST :Action time:15ms,Release time:8ms
|
|
|
Process connection
|
Stainless steel 304 M20×1.5(normal）
|
|
|
Environment Condition
|
|
|
|
Medium Temp.
|
-25-80℃
|
|
|
Environment Temp.
|
-25-80℃
|
|
Selection table
