Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
3770(L)*670(W)*1450(H)
-
Weight:
-
800 KG
-
Certification:
-
ISO9001,CE
Quick Details
-
Packaging Type:
-
Belt, Film
-
Packaging Material:
-
Paper, Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
3770(L)*670(W)*1450(H)
-
Weight:
-
800 KG
-
Certification:
-
ISO9001,CE
Product Overview

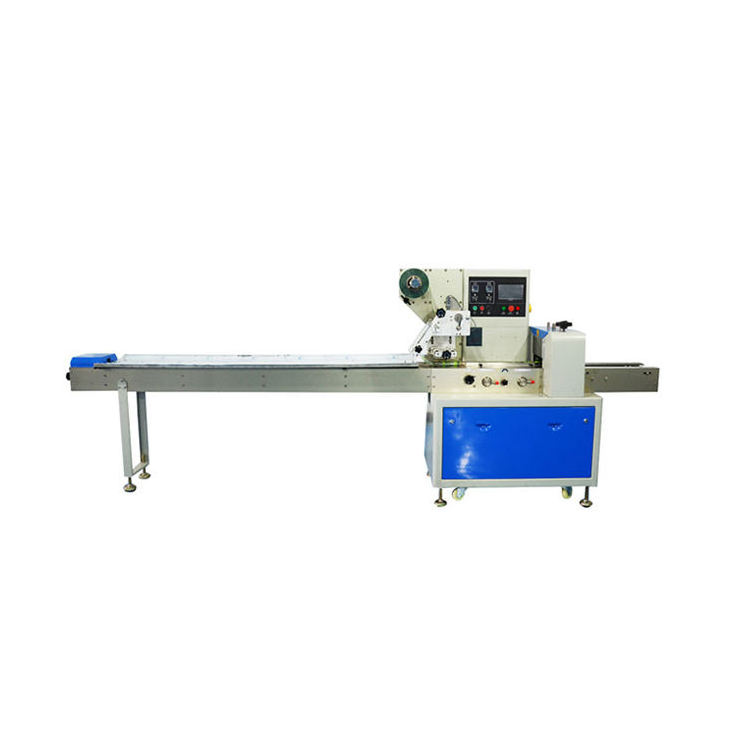

Pillow packaging machine
Pillow packaging machine, the structure is easy to operation, maintenance is very convenient and can be used in the factory, food packaging, etc
Products Description
Control area
Various parameters can be set, including speed, temperature, output, bag length, cutting position, etc., intuitively.
Film feeding area
It adopts multi-axis linkage to coordinate film feeding, which is suitable for more packaging films. The high sensitivity sensor
makes the sealing and cutting position more accurate.
makes the sealing and cutting position more accurate.
Conveyor
Using 304 stainless steel panel, more environmentally friendly and sanitary, accurate and stable feeding
Hot press seal
Independent PID control, good sealing effect
End seal
Rotate the heat-sealing incision to seal the front and back ends of the packaged product
Product Paramenters
|
Machine Model
|
SG-250B
|
SG-250D
|
SG-250S
|
||
|
Film Width
|
Max.250mm
|
Max.250mm
|
Max.180mm
|
||
|
Bag Length
|
65～190mm
|
90～220mm
|
45~90mm
|
||
|
Bag Width
|
30～110mm
|
30～110mm
|
30~80mm
|
||
|
Product Height
|
Max.40mm
|
Max.40mm
|
Max.35mm
|
||
|
Film Roll Diameter
|
Max.320mm
|
|
|
||
|
Packing Speed
|
40～230Bag/min
|
|
60-330Bag/min
|
||
|
Power
|
50/60HZ 2.4KVA
|
|
|
||
|
Machine Dimension
|
(L)3770×(W)670×(H)1450mm
|
|
|
||
|
Machine Weight
|
500KG
|
|
|
||
|
Optional Accessories
|
Coding machine/Inflatable machine/Exhaust machine/Discharge brush
|
|
|
||
|
Packaging Materials
|
BOPP/PE/ OPP/ PET
|
|
|
||
Prcduct Detail
The main performance and structure features：
1. Double frequency conversion control, bag length is set and cut immediately, no need to adjust the empty running, one step in
place, saving time and film.
2. Man-machine interface, convenient and quick parameter setting.
3. Fault self-diagnosis function, fault display is clear at a glance.
4. High-sensitivity photoelectric eye color mark tracking and digital input of the sealing and cutting position make the sealing
and cutting position more accurate.
5. Independent PID control of temperature, better suitable for various packaging materials.
6. Positioned stop function, no sticking to the knife, no waste of film.
7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
8. All control is realized by software, which is convenient for function adjustment and technology upgrade.
Scope of application:
It is suitable for packaging all kinds of regular objects such as biscuits, rice tongs, snow cakes, egg yolk pie, chocolate,
bread, instant noodles, moon cakes, daily necessities, popsicles, industrial parts, paper boxes or trays etc.
place, saving time and film.
2. Man-machine interface, convenient and quick parameter setting.
3. Fault self-diagnosis function, fault display is clear at a glance.
4. High-sensitivity photoelectric eye color mark tracking and digital input of the sealing and cutting position make the sealing
and cutting position more accurate.
5. Independent PID control of temperature, better suitable for various packaging materials.
6. Positioned stop function, no sticking to the knife, no waste of film.
7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
8. All control is realized by software, which is convenient for function adjustment and technology upgrade.
Scope of application:
It is suitable for packaging all kinds of regular objects such as biscuits, rice tongs, snow cakes, egg yolk pie, chocolate,
bread, instant noodles, moon cakes, daily necessities, popsicles, industrial parts, paper boxes or trays etc.
