Quick Details
-
Warranty:
-
1 year except wearing parts, 1 Year without Spare Parts
-
Brand Name:
-
YONJOU
-
Model Number:
-
IS Water Pump
-
Place of Origin:
-
Zhejiang, China
-
Structure:
-
Water Pump
-
Outlet Size:
-
25-125 mm
-
Material:
-
Cast Iron
-
Package:
-
International Standard Plywood Case
-
Shipment:
-
By Sea, By Air, By Express, By Truck, By Train
-
QC:
-
Yes
-
Testing:
-
Yes
-
Usage:
-
Water, Oil, Fire Fighting
-
Fuel:
-
Electric
-
Power:
-
Electric
Quick Details
-
Application:
-
Automotive Industry, Industrial Utilities, Irrigation and Agriculture
-
Pressure:
-
Low Pressure
-
Voltage:
-
380V
-
Warranty:
-
1 year except wearing parts, 1 Year without Spare Parts
-
Brand Name:
-
YONJOU
-
Model Number:
-
IS Water Pump
-
Place of Origin:
-
Zhejiang, China
-
Structure:
-
Water Pump
-
Outlet Size:
-
25-125 mm
-
Material:
-
Cast Iron
-
Package:
-
International Standard Plywood Case
-
Shipment:
-
By Sea, By Air, By Express, By Truck, By Train
-
QC:
-
Yes
-
Testing:
-
Yes
-
Usage:
-
Water, Oil, Fire Fighting
-
Fuel:
-
Electric
-
Power:
-
Electric
Summarize:

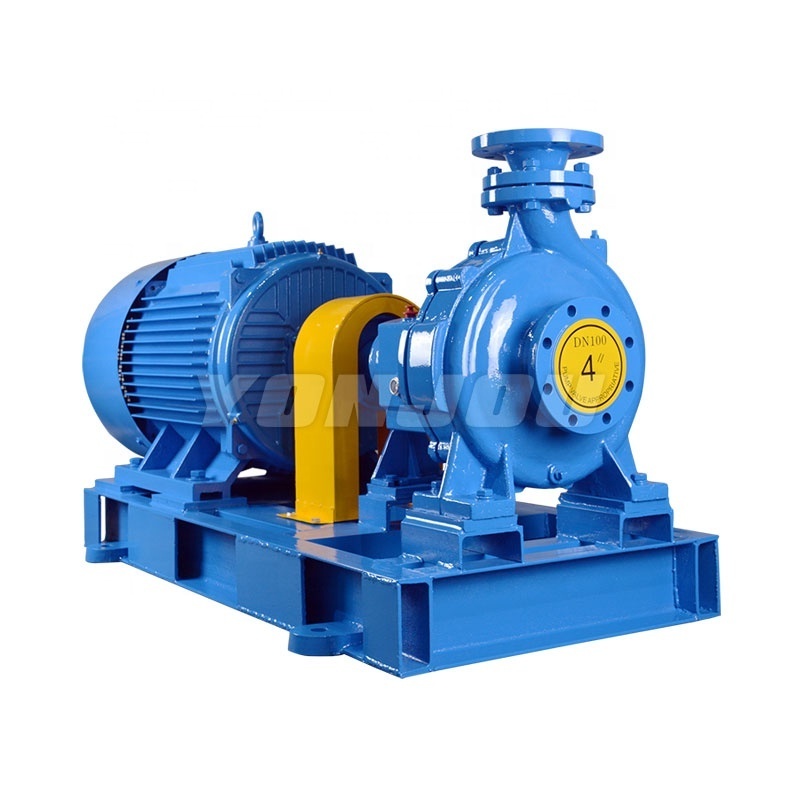

IS Centrifugal Water Pump is a standard ISO2858 design water pump. It is single-stage end-suction (axial intake) centrifugal pump and high effiency pump designed by YONJOU team,
it is improved from previous models BA and B and other single-stage water centrifugal pump. The advantages: its hydraulic capability is distributed extensively, many options for the user,
convenient to check and repair, the efficiency and manufacturing quality is up to advanced international standard.
Product details:
| Working Principle: | Single Stage End Suction Centrifugal Pump |
| Usage: | Water, Oil, Fire Fighting |
| Main Applications: |
• Water treatment • Building water supply • Chemical industry • Chemical and petrochemical industries • Pharmaceutical industry • Food and drink industrie • Cooling system • Mining |
| Shaft seal type: |
• Single Mechanical Seal • Double Mechanical Seal |
| Material: | Cast Iron |
| Impeller Type: | Close Impeller |
| Max. Temperature: | 120°C |
| Heating Jacket: | Can |
Performance data:
| Model |
Capacity m3/h |
Head m |
Power kW |
Effeciency % |
| 50-32-125 | 12.5 | 20 | 2.2 | 60 |
| 50-32-125 | 6.3 | 5 | 0.55 | 54 |
| 50-32-160 | 12.5 | 32 | 3 | 54 |
| 50-32-160 | 6.3 | 8 | 0.55 | 48 |
| 50-32-200 | 12.5 | 50 | 5.5 | 48 |
| 50-32-200 | 6.3 | 12.5 | 0.75 | 42 |
| 50-32-250 | 12.5 | 80 | 11 | 38 |
| 50-32-250 | 6.3 | 20 | 1.5 | 32 |
| 65-50-125 | 25 | 20 | 3 | 69 |
| 65-50-125 | 12.5 | 50 | 0.55 | 64 |
| 65-50-160 | 25 | 32 | 0.5 | 65 |
| 65-50-160 | 12.5 | 5 | 0.75 | 60 |
| 65-40-200 | 25 | 50 | 7.5 | 60 |
| 65-40-200 | 12.5 | 12.5 | 1.1 | 55 |
| 65-40-250 | 25 | 80 | 15 | 50 |
| 65-40-250 | 12.5 | 20 | 2.2 | 46 |
| 80-65-125 | 50 | 20 | 5.5 | 75 |
| 80-65-125 | 25 | 5 | 0.75 | 71 |
| 80-65-160 | 50 | 32 | 7.5 | 73 |
| 80-65-160 | 25 | 8 | 1.5 | 69 |
| 8050-200 | 50 | 50 | 15 | 69 |
| 80-50-200 | 25 | 12.5 | 2.2 | 65 |
| 80-50-250 | 50 | 80 | 22 | 63 |
| 80-50-250 | 25 | 20 | 3 | 60 |
| 80-50-315 | 50 | 125 | 37 | 54 |
| 80-50-315 | 25 | 32 | 5.5 | 52 |
| 100-80-125 | 100 | 20 | 11 | 78 |
| 100-80-125 | 50 | 5 | 1.5 | 75 |
| 100-80-160 | 100 | 32 | 15 | 78 |
| 100-80-160 | 50 | 8 | 2.2 | 75 |
| 100-65-200 | 100 | 50 | 22 | 76 |
| 100-65-200 | 50 | 12.5 | 4 | 73 |
| 100-65-250 | 100 | 80 | 37 | 72 |
| 100-65-250 | 50 | 20 | 5.5 | 69 |
| 100-65-315 | 100 | 125 | 75 | 66 |
| 100-65-315 | 50 | 32 | 11 | 63 |
| 125-100-200 | 200 | 50 | 45 | 81 |
| 125-100-200 | 100 | 12.5 | 7.5 | 76 |
| 125-100-250 | 200 | 80 | 75 | 78 |
| 125-100-250 | 100 | 20 | 11 | 76 |
| 125-100-315 | 100 | 32 | 15 | 73 |
| 125-100-400 | 100 | 50 | 30 | 65 |
| 150-125-250 | 200 | 20 | 18.5 | 81 |
| 150-125-315 | 200 | 32 | 30 | 79 |
