Quick Details
-
Dimension(L*W*H):
-
2500x3030x3500mm
-
Weight (T):
-
77
-
Model Number:
-
JW36
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
500 ton press:
-
hydraulic 500 ton press
-
straight side power press:
-
china press machine
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WORLD
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2500x3030x3500mm
-
Weight (T):
-
77
-
Model Number:
-
JW36
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
500 ton press:
-
hydraulic 500 ton press
-
straight side power press:
-
china press machine
-
Certification:
-
CE
|
Item
|
|
Code
|
Unit
|
JW36-110
|
JW36-160
|
JW36-200
|
JW36-250
|
|
|
Nominal Capacity
|
|
|
kn
|
1100
|
1600
|
2000
|
2500
|
|
|
Slide Stroke Length
|
|
S
|
mm
|
180
|
200
|
250
|
280
|
|
|
Slide Stroke Speed
|
Fixed
|
|
spm
|
50
|
45
|
35
|
30
|
|
|
|
Variable (Optional)
|
|
spm
|
35-55
|
35-55
|
25-40
|
20-35
|
|
|
Max. Die Shut Height
|
|
H2
|
mm
|
400
|
450
|
500
|
550
|
|
|
Die Shut Height Adjustment
|
|
t
|
mm
|
90
|
100
|
110
|
120
|
|
|
Side Window Size
|
F-B
|
E
|
mm
|
650
|
800
|
900
|
950
|
|
|
|
Height
|
F
|
mm
|
350
|
400
|
450
|
460
|
|
|
Distance Between Uprights
|
|
G
|
mm
|
1750
|
1900
|
2290
|
2570
|
|
|
Table Size
|
F-B
|
D
|
mm
|
700
|
760
|
900
|
1000
|
|
|
|
L-R
|
C
|
mm
|
1650
|
1800
|
2200
|
2500
|
|
|
|
Thickness
|
H3
|
mm
|
140
|
150
|
170
|
180
|
|
|
Slide Bottom Size
|
F-B
|
b
|
mm
|
600
|
700
|
800
|
900
|
|
|
|
L-R
|
a
|
mm
|
1350
|
1500
|
1900
|
2200
|
|
|
Table Surface Height
|
|
H1
|
mm
|
1035
|
1035
|
1135
|
1235
|
|
|
Overall Dimensions
|
F-B
|
A
|
mm
|
2050
|
2400
|
2650
|
2900
|
|
|
|
L-R
|
B
|
mm
|
2400
|
2650
|
3150
|
3450
|
|
|
|
Height
|
H
|
mm
|
3450
|
3950
|
4280
|
4800
|
|
|
Motor Power
|
|
|
kw
|
11
|
18.5
|
22
|
30
|
|
|
Weight (Approximate)
|
|
|
kg
|
18000
|
22000
|
33000
|
42000
|
|
|
Item
|
|
Code
|
Unit
|

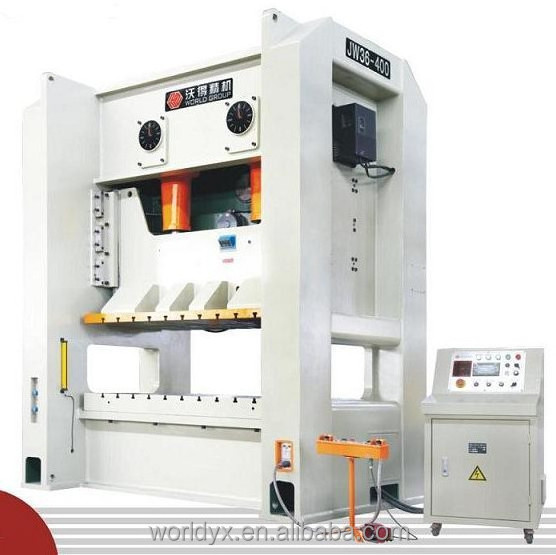

JW36-315
|
JW36-400
|
JW36-500
|
|
|
Nominal Capacity
|
|
|
kn
|
3150
|
4000
|
5000
|
|
|
Slide Stroke Length
|
|
S
|
mm
|
280
|
300
|
300
|
|
|
Slide Stroke Speed
|
Fixed
|
|
spm
|
30
|
20
|
20
|
|
|
|
Variable (Optional)
|
|
spm
|
20-35
|
15-24
|
15-23
|
|
|
Max. Die Shut Height
|
|
H2
|
mm
|
550
|
600
|
650
|
|
|
Die Shut Height Adjustment
|
|
t
|
mm
|
120
|
130
|
130
|
|
|
Side Window Size
|
F-B
|
E
|
mm
|
950
|
1000
|
1100
|
|
|
|
Height
|
F
|
mm
|
460
|
550
|
600
|
|
|
Distance Between Uprights
|
|
G
|
mm
|
2570
|
2810
|
3200
|
|
|
Table Size
|
F-B
|
D
|
mm
|
1000
|
1100
|
1200
|
|
|
|
L-R
|
C
|
mm
|
2500
|
2700
|
3000
|
|
|
|
Thickness
|
H3
|
mm
|
190
|
200
|
210
|
|
|
Slide Bottom Size
|
F-B
|
b
|
mm
|
900
|
1000
|
1100
|
|
|
|
L-R
|
a
|
mm
|
2200
|
24000
|
2700
|
|
|
Table Surface Height
|
|
H1
|
mm
|
1285
|
1340
|
1340
|
|
|
Overall Dimensions
|
F-B
|
A
|
mm
|
3000
|
3150
|
3400
|
|
|
|
L-R
|
B
|
mm
|
3450
|
3700
|
4200
|
|
|
|
Height
|
H
|
mm
|
4900
|
5500
|
6000
|
|
|
Motor Power
|
|
|
kw
|
37
|
45
|
55
|
|
|
Weight (Approximate)
|
|
|
kg
|
43000
|
56000
|
77000
|
|
