Quick Details
-
Model Number:
-
PTM80
-
CNC Cutting Torch:
-
Yes
-
Length:
-
6M+custom
-
Rated Current:
-
80A
-
Ignition:
-
Without HF
-
Gas:
-
Air/N2
-
Gas Pressure:
-
4.4-5.0 Bar
-
Duty cycle:
-
60%
-
Post flow:
-
80S recommended
-
OEM:
-
Yes
Quick Details
-
Type:
-
CUTTING TORCH
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Alandwelding
-
Model Number:
-
PTM80
-
CNC Cutting Torch:
-
Yes
-
Length:
-
6M+custom
-
Rated Current:
-
80A
-
Ignition:
-
Without HF
-
Gas:
-
Air/N2
-
Gas Pressure:
-
4.4-5.0 Bar
-
Duty cycle:
-
60%
-
Post flow:
-
80S recommended
-
OEM:
-
Yes
Air Cooled PTM80 80A CNC Straight Plasma Cutting Torch CNC Machine Torch Complete 6m with Central Connector Adaptor
Technical Data:
Rated Current: 80A
Duty Cycle: 60%
Gas: Air / N2
Gas Pressure: 4.4-5.0Bar
Gas Flow: 110LPM
Ignition: Without HF
Post Flow: 80S recommended
Standard Length: 6m
Complete torch
|
Order No. |
Description |
|
AVT13051-00 |
Plasma machine torch IPTM80/6M/ 1/4G integrated/2 wires/back striking |
|
AVT14051-00 |
Plasma machine torch IPTM80/12M 1/4G /integrated/2 wires/back striking |
|
AVT13052-00 |
Plasma machine torch IPTM80/6M/ 1/4G /separation/2 wires/back striking |
|
AVT14052-00 |
Plasma machine torch IPTM80/12M/ 1/4G /separation/2 wires/back striking |
|
AVT13053-00 |
Plasma machine torch IPTM80/6M/central adaptor/2 wires/back striking |
|
AVT14053-00 |
Plasma machine torch IPTM80/12M/central adaptor/2 wires/back striking |
|
AVT13054-00 |
Plasma machine torch IPTM80/6M/central adaptor/coaxial cable/back striking |
|
AVT14054-00 |
Plasma machine torch IPTM80/12Mcentral adaptor/coaxil cableback stiking |
|
Position |
Code |
Ref. |
Description |
|
1 |
ASM1064 |
60508 |
Shield cap/IPT80/gouging |
|
2 |
AVS1667-05 |
60510 |
Outside nozzle IPT80/gray glass fiber |
|
3 |
AVS1672-05 |
60511 |
Outside nozzle IPT80/gouging |
|
4 |
|
|
Tip |
|
4.1 |
AVU1670-10 |
51311.10 |
Tip Dia.1.0mm 50A/IPT80/back striking |
|
4.2 |
AVU1670-11 |
51311.11 |
Tip Dia.1.1mm 60A/IPT80/back striking |
|
4.3 |
AVU1670-12 |
51311.12 |
Tip Dia.1.2mm 70A/IPT80/back striking |
|
4.4 |
AVU1670-13 |
51311.13 |
Tip Dia.1.3mm 80A/IPT80/back striking |
|
5 |
AVU1675-16 |
51311G.16 |
Tip Dia.1.6mm/80A/IPT80/gouging/back striking |
|
6 |
AVF1665 |
60027 |
Diffuser IPT80 |
|
7 |
AVB1669 |
52558 |
Electrode Plasma IPT80 |
|
8 |
AVZ0621 |
|
Torch head IPTM80/IPXM82 |
|
8a |
AFT0709 |
51620.60 |
"O" ring Dia.18x15mm IPT80 RED SIL. |
|
8b |
AZN0773 |
09800.42 |
Air tube/IPT80 |
|
9 |
AHJ0110 |
|
Plasma machine handle kit |
|
10 |
|
|
Spring support |
|
10.1 |
AHJ0899 |
|
Spring support/PG21/Plasma/coaxial cable |
|
10.2 |
AHJ0899-02 |
|
Spring support/PG21/Plasma/EPDM |
|
11 |
|
|
Cable assembly |
|
11.1 |
AVN11210063-22 |
|
Cable assembly/IPTM80/6M/ 1/4G 2 wires/integrated |
|
11.2 |
AVN11210123-22 |
|
Cable assembly/IPTM80/12M/ 1/4G 2 wires/integrated |
|
11.3 |
AVN11210061-22 |
|
Cable assembly/IPTM80/6M/ 1/4G 2 wires/separation |
|
11.4 |
AVN11210121-22 |
|
Cable assembly/IPTM80/12M/ 1/4G 2 wires/separation |
|
11.5 |
AVN11210060-22 |
|
Cable assembly/IPTM80/6M/2 wires/centre adaptor |
|
11.6 |
AVN11210120-22 |
|
Cable assembly/IPTM80/12M/2 wires/centre adaptor |
|
11.7 |
AVN1121106C-22 |
185.0031 |
Cable assembly/IPTM80/6M/central adaptor/coaxial cable |
|
11.8 |
AVN1121112C-22 |
|
Cable assembly/IPTM80/12M/central adaptor/coaxial cable |
|
12 |
ACG6006 |
|
Spanner For Plasma |
|
13 |
AZX0078 |
|

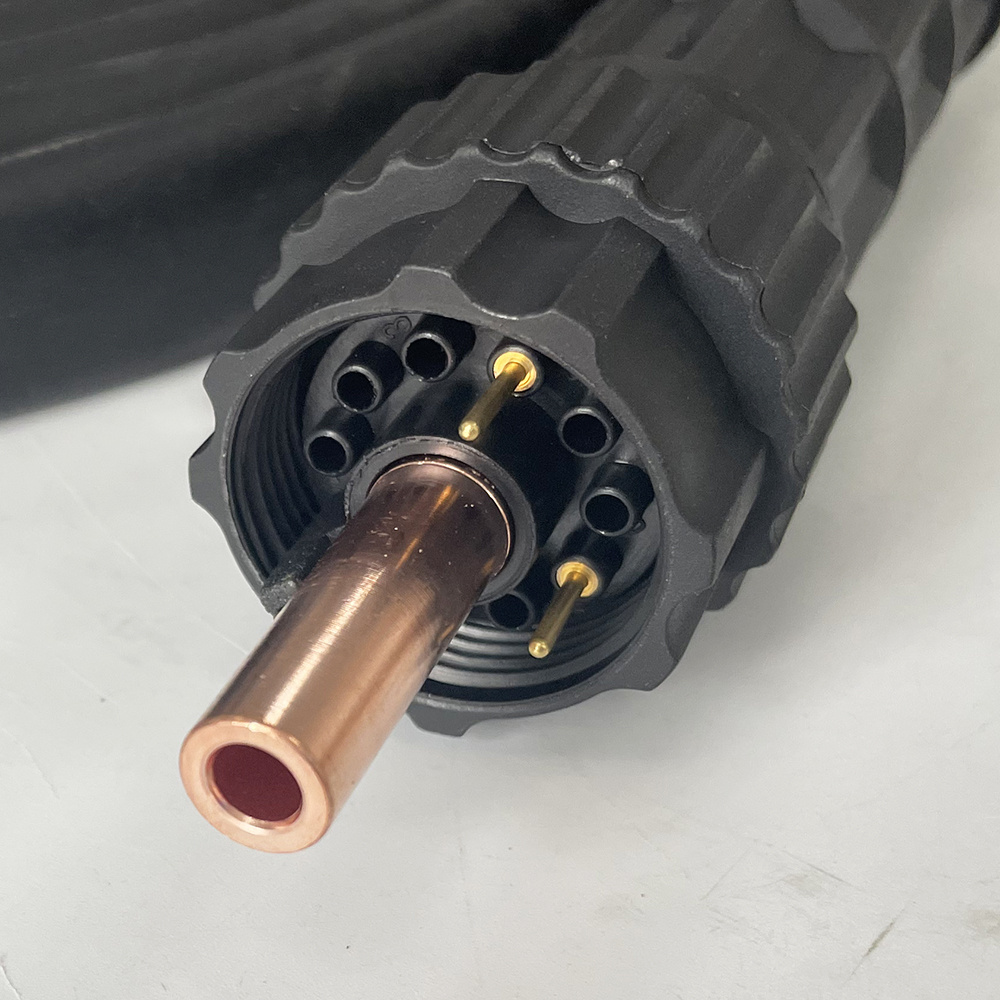

Central adaptor torch side Plasma 5 pins |
