Quick Details
-
Model Number:
-
KCD4
-
Max. Current:
-
35A
-
Mechanical Life:
-
100000
-
Products name:
-

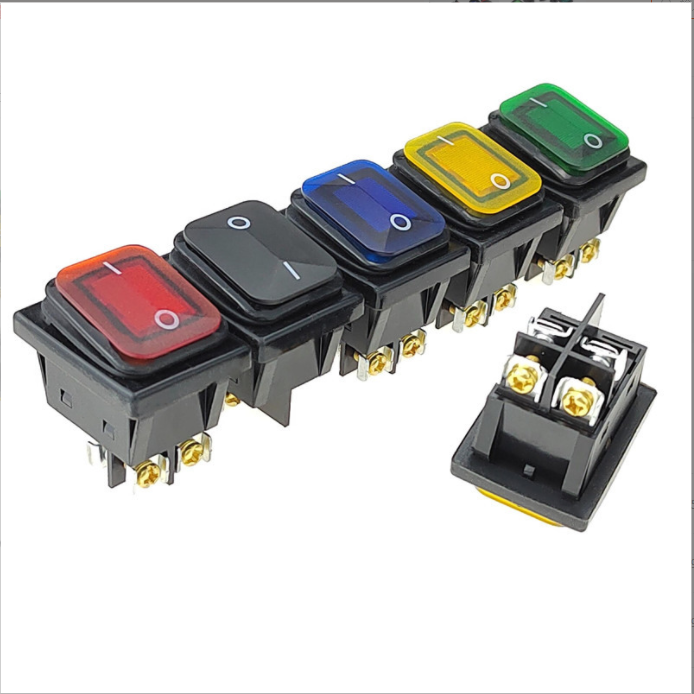

ROCKER SWITCH
-
Color:
-
YELLOW RED BLACK WHITE BLUE GREEN
-
Voltage:
-
250v 12v
-
Switch Function:
-
on off /on off on
-
Lamp color:
-
red led light
-
Material:
-
PPT
-
Certification:
-
CE CQC TUV VDE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
cf
-
Model Number:
-
KCD4
-
Max. Current:
-
35A
-
Mechanical Life:
-
100000
-
Products name:
-
ROCKER SWITCH
-
Color:
-
YELLOW RED BLACK WHITE BLUE GREEN
-
Voltage:
-
250v 12v
-
Switch Function:
-
on off /on off on
-
Lamp color:
-
red led light
-
Material:
-
PPT
-
Certification:
-
CE CQC TUV VDE
. The appliance switches are widely used in household electrical equipments and office facility , the multimedia products and the electromotional instruments field etc.
|
RATING: |
15A 250VAC;20A 125VAC;30A 12VDC |
|
MECHANICAL LIFE: |
>50000 CYCLES |
|
ELECTRICAL LIFE |
>10000 CYCLES |
|
CONTACT RESISTANCE |
< 50MΩ |
|
INSULATION RESISTANCE |
>1000MΩ |
|
WITHSTAND VOLTAGE |
>1500V/MINUTE |
|
AMBIENT TEMPERATURE |
-10°C~+85°C |
|
STORAGE TEMPERATURE |
-25°C~+85°C |
