Quick Details
-
Dimension(L*W*H):
-
650*520*650MM
-
Weight:
-
60 KG
-
Product name:
-

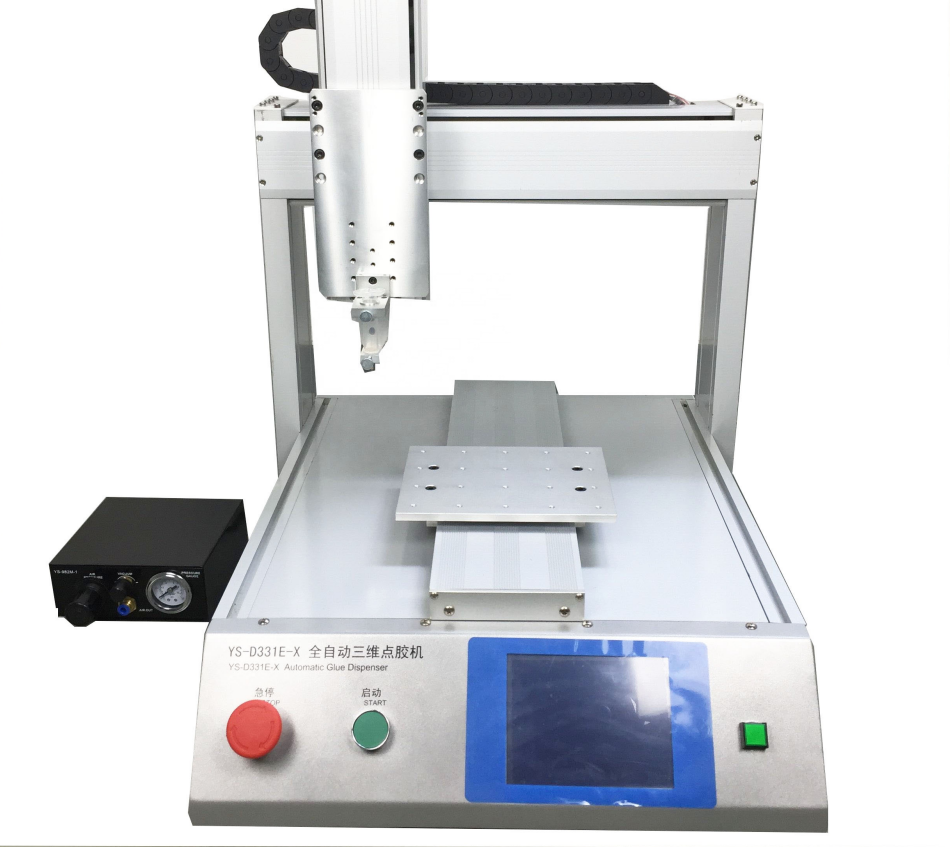

automatic gluing machine
-
Function:
-
Glue Application
-
Usage:
-
Electronics
-
Definition:
-
Potting
-
Advantages:
-
Easy Operation
-
Material:
-
Aluminum Alloy Metal
-
Machine type:
-
Automatic Control
-
Feature:
-
High Level High Speed
-
Certification:
-
CE
-
Keyword:
-
Glue Dispenser Automatic
Quick Details
-
Voltage:
-
AC220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Robotsung
-
Dimension(L*W*H):
-
650*520*650MM
-
Weight:
-
60 KG
-
Product name:
-
automatic gluing machine
-
Function:
-
Glue Application
-
Usage:
-
Electronics
-
Definition:
-
Potting
-
Advantages:
-
Easy Operation
-
Material:
-
Aluminum Alloy Metal
-
Machine type:
-
Automatic Control
-
Feature:
-
High Level High Speed
-
Certification:
-
CE
-
Keyword:
-
Glue Dispenser Automatic
Product Description
Advantages:
1.Full-automatic glue dispenser can dispense through 3D and 4D path. It can quickly draw dot, line circle and all kinds of irregular figures on the surface, vertical plane, gap and spherical surface.
2.Graphics import or machine screen edit, easy to operate with high precision.
3.Big scale workstation can place multiple products, which is more efficient. Workstation can be customized according to the size of product.
4.Glue dispenser can be equipped with several dispensing heads and operate at the same time, greatly increasing dispensing efficiency.
5.Glue dispenser is applicable for all kinds of glue. Dispensing liquid such as oil paint and printing ink needs to equip additional high-capacity pressure barrel to reduce glue changing time.
6.We are a manufacturer with more than 20 years of production experience. We have excellent R&D and production ability, sound QC system and perfect after-sale service. Robotsung has become a nationwide famous brand in China.
Application:
1.Electro-acoustic industry: horn, loudspeaker, buzzer, earphone.
2.Inductance industry: small transformer, SMD transformer, inductance, relay, small coil motor.
3.Communication industry:keypad, phone shell,interphone,telephone, fax machine.
4.Computer, digital products, digital camera, MP3, MP4, electronic toy, chassis adhesion.
5.Switch, connector, wire rod, plug cable.
6.Electronics: electron component, integrated circuit, circuit board solder paste, LCD screen, etc.
7.Optics: optical lenses, magnetic head.
8.Mechanical hardware, battery box sealing, label fixing adhesion, car parts coating.
9.Food packaging.
10.LED industry.
Applicable glue:
Silicon, UV glue, AB glue, epoxy resin, instant glue, EMI conducting resin, sealant, hot glue, grease, red gum , solder paste, thermal grease, solder grease, lacquer, screw fixing agent.
1.Full-automatic glue dispenser can dispense through 3D and 4D path. It can quickly draw dot, line circle and all kinds of irregular figures on the surface, vertical plane, gap and spherical surface.
2.Graphics import or machine screen edit, easy to operate with high precision.
3.Big scale workstation can place multiple products, which is more efficient. Workstation can be customized according to the size of product.
4.Glue dispenser can be equipped with several dispensing heads and operate at the same time, greatly increasing dispensing efficiency.
5.Glue dispenser is applicable for all kinds of glue. Dispensing liquid such as oil paint and printing ink needs to equip additional high-capacity pressure barrel to reduce glue changing time.
6.We are a manufacturer with more than 20 years of production experience. We have excellent R&D and production ability, sound QC system and perfect after-sale service. Robotsung has become a nationwide famous brand in China.
Application:
1.Electro-acoustic industry: horn, loudspeaker, buzzer, earphone.
2.Inductance industry: small transformer, SMD transformer, inductance, relay, small coil motor.
3.Communication industry:keypad, phone shell,interphone,telephone, fax machine.
4.Computer, digital products, digital camera, MP3, MP4, electronic toy, chassis adhesion.
5.Switch, connector, wire rod, plug cable.
6.Electronics: electron component, integrated circuit, circuit board solder paste, LCD screen, etc.
7.Optics: optical lenses, magnetic head.
8.Mechanical hardware, battery box sealing, label fixing adhesion, car parts coating.
9.Food packaging.
10.LED industry.
Applicable glue:
Silicon, UV glue, AB glue, epoxy resin, instant glue, EMI conducting resin, sealant, hot glue, grease, red gum , solder paste, thermal grease, solder grease, lacquer, screw fixing agent.
|
Model
|
YS-D331E
|
YS-D441E
|
YS-D551E
|
YS-D461E
|
|||
|
Working area
|
300*300*100
|
400*400*100
|
500*500*100
|
400*600*100
|
|||
|
Control system
|
Independent R D
|
|
|
|
|||
|
Driver
|
Stepper motor+sliver guideway+timing belt
|
|
|
|
|||
|
Repeatability
|
+/-0.02-0.05mm
|
|
|
|
|||
|
Air pressure
|
0.4-0.7Mpa
|
|
|
|
|||
|
Speed
|
500mm/s
|
|
|
|
|||
|
Power
|
220/110V 50/60HZ 350W
|
|
|
|
|||
|
Max load
|
XYZ 10kg
|
|
|
|
|||
|
Display
|
5.7inch screen
|
|
|
|
|||
|
Programme
method |
Screen operation /connect to PC
|
|
|
|
|||
|
File total
|
Number unlimited,16M
|
|
|
|
|||
|
I/O signal
|
16 inputs/16 outputs
|
|
|
|
|||
|
Weight
|
35kg
|
45kg
|
55kg
|
65kg
|
|||
|
Size
|
680*570*680
|
780*670*680
|
880*770*680
|
|
|||
