Quick Details
-
Material:
-
Bags
-
Fluid:
-
Air
-
Acting:
-
Internal pilot or external pilot
-
Port size:
-
In=Out=M5
-
Orifice size:
-
5.5 (Cv=0.31)
-
Valve:
-
5 port 2 position
-
Operating pressure:
-
0.15~0.8Mpa(21~114psi)
-
Proof pressure:
-
1.5MPa(215psi)
-
Temperature:
-
0~60
-
Material of body:
-
Aluminum alloy
-
Product name:
-

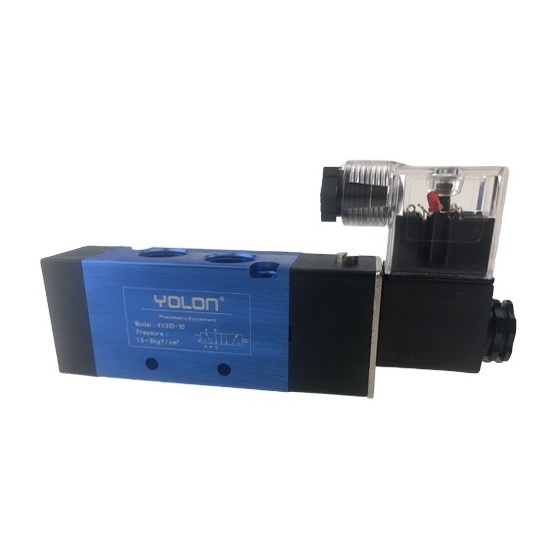

4v310 08 4v210-06 air auto drain electro pneumatic solenoid valves
Quick Details
-
Weight (KG):
-
0.5
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Yolon
-
Material:
-
Bags
-
Fluid:
-
Air
-
Acting:
-
Internal pilot or external pilot
-
Port size:
-
In=Out=M5
-
Orifice size:
-
5.5 (Cv=0.31)
-
Valve:
-
5 port 2 position
-
Operating pressure:
-
0.15~0.8Mpa(21~114psi)
-
Proof pressure:
-
1.5MPa(215psi)
-
Temperature:
-
0~60
-
Material of body:
-
Aluminum alloy
-
Product name:
-
4v310 08 4v210-06 air auto drain electro pneumatic solenoid valves
The shipping cost shown above is a bit expensive. If you are interested in welcoming to contact me, I can give you more offers,Besides,I can give you the professional advice.
We have been engaged in pneumatic hydraulics for 20 years. The scale of the factory is large, the delivery is fast, and the quality is always our aim.
| Model | 4V110-06 | 4V210-08 | 4V310-10 | 4V410-15 |
| Fluid | Air(to be filter by 40 μm filter element) | |||
| Acting | Internal pilot or external pilot | |||
| Port size | 1/8" | 1/4" | 1/4" | 1/2" |
| orifice size( square meter) | 12 | 16 | 30 | 50 |
| valve type | 3 port 2 position | |||
| operating pressure | 0.15~0.8Mpa(21~114psi) | |||
| proof pressure | 1.5Mpa | |||
| temperture ℃ | (-20~70) | |||
| material of body | Alumlnum alloy | |||
| lubrication | Not required | |||
| max.frequency | 3 cycle/sec | |||
| Weight | 200g | 360g | 450g | 770g |
| Model/Item | A | B | C | D | E | F | G |
| 4V110-M5 | M5*0.8 | 27 | 14.7 | 0 | 14 | 21.2 | 0 |
| 4V110-06 | 1/8'' | 28 | 14.2 | 1 | 16 | 20.2 | 3 |
| Model/Item | A | B | C | D | E |
| 4V210-06 | 1/8'' | 1/8'' | 18 | 22.7 | 0 |
| 4V210-08 | 1/8'' | 1/4'' | 21 | 21.2 | 3 |
| Model/Item | A | B | C | D | E |
| 4V310-08 | 1/4'' | 1/4'' | 22 | 29 | 0 |
| 4v310-10 | 1/4'' | 3/8'' | 24 | 28 | 4 |
1: Usually we ship your order by sea or by air,Delivery time is 3 to 14 days,Most products are in stock according to the standard
2: Our products are guaranteed for 1 year and can be replaced free of charge within one year.
3:Regular products we support one-click orders,Non-standard products need to be customized to contact customer service,A satisfactory response will be given to you within 3 hours.
1. Accept OEM, delivery in general from 14 days to 20 days, the number of fittings is less than 30,000 pieces a month, other valves are below 10,000 pieces, large mechanical image pumps, hydraulic systems, hydraulic cylinders, in 10 pieces ,If the goods are urgent, please advise.
2. Recommended combination, timely contact and timely feedback
3. Any question, will be replyed within 24 hours
4. We also represent a number of brand companies, Festo, AirTAC, SMC, etc. Welcome to purchase and will give you unimaginable low prices
5.Various style for each products and completely series pneumatic products for you to choose from
6.Excellent quality control is one of our main principles
7.Sample order & small quantity order is ok
CE Safety/Quality
