Quick Details
-
Warranty:
-
1 yeare
-
Brand Name:
-
JIANHE
-
Model Number:
-
DR
-
Place of Origin:
-
Zhejiang, China
-
Outlet Size:
-
M10*1
-
Power:
-
60W/90W
-
Product name:
-
Oil Lubrication Pump
-
Liquid:
-
Lube Oil
-
Keywords:
-
lubricated gear pump
-
Sample Order:
-
Paid samples
-
Nominal flow:
-
250ml/500ml
-
capacity:
-
3L
Quick Details
-
Application:
-
Other, Automotive Industry, Commercial Buildings, Industrial Utilities, Machining, Metal and Equipment Manufacturers
-
Pressure:
-
High Pressure
-
Voltage:
-
220V/380V
-
Warranty:
-
1 yeare
-
Brand Name:
-
JIANHE
-
Model Number:
-
DR
-
Place of Origin:
-
Zhejiang, China
-
Outlet Size:
-
M10*1
-
Power:
-
60W/90W
-
Product name:
-
Oil Lubrication Pump
-
Liquid:
-
Lube Oil
-
Keywords:
-
lubricated gear pump
-
Sample Order:
-
Paid samples
-
Nominal flow:
-
250ml/500ml
-
capacity:
-
3L

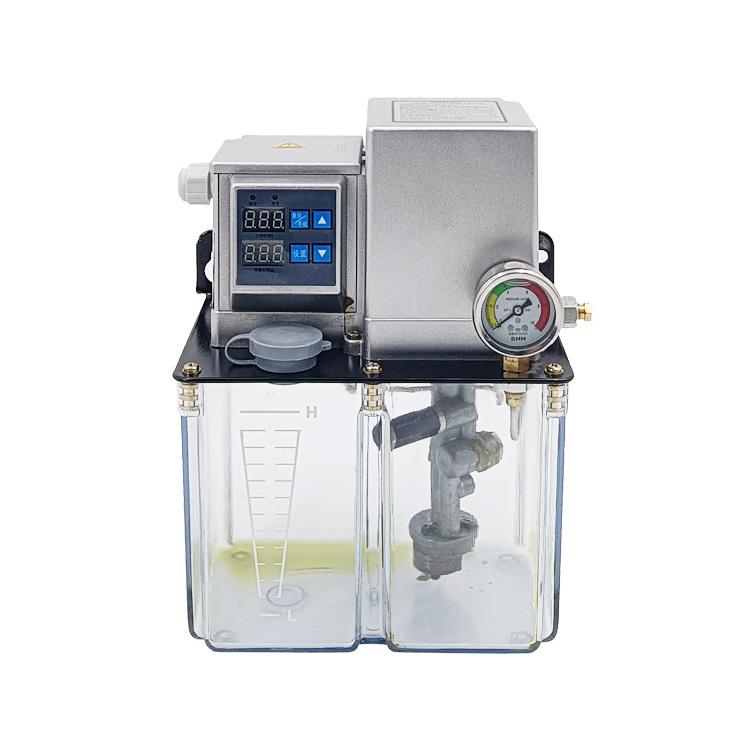

The DR type of the electric grease pump has an unloading function and is equipped with a liquid level switch, which can output the oil shortage signal of the fuel tank. It can also be equipped with a digital explicit controller to control the working cycle of the lubrication pump.
|
Model NO |
Standard Pressure |
Standard Flow |
Oil Volume |
Motor |
|||
|
(Mpa) |
L/Min) |
(L) |
Voltage (V) |
Frequency (Hz) |
Power (W) |
Speed (r/Min) |
|
|
DR2.5-32 |
2.0 |
0.25 |
3.0 |
AC380V ,AC220V |
50HZ |
60 |
1350 |
|
DR5-32 |
0.50 |
90 |
2700 |
||||
|
DR2.5-42 |
0.25 |
4.0 |
60 |
1350 |
|||
|
DR5-42 |
0.50 |
90 |
2700 |
||||
|
DR2.5-62 |
0.25 |
6.0 |
60 |
1350 |
|||
|
DR5-62 |
0.50 |
90 |
2700 |
||||
|
DR2.5-92 |
0.25 |
9.0 |
60 |
1350 |
|||
|
DR5-92 |
0.50 |
90 |
2700 |
||||
