Quick Details
-
Dimension(L*W*H):
-
800X800X1100mm
-
Weight (KG):
-
30
-
Power (kW):
-
550w
-
Product name:
-
Saw blade sharpening machine
-
Power:
-
220V/50Hz
-
Rotating speed:
-
2800 RPM
-
Model:
-
XP- 870C Touch Type
-
Application:
-
Grinding Saw Blade
-
Advantage:
-
High Working Efficiency
-
Tungsten Grinding Wheel:
-
150X32X10mm
-
Weight:
-
110Kg
-
Packing Size:
-
800X800X1100mm
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
XIAPU
-
Voltage:
-
220V, 550w
-
Dimension(L*W*H):
-
800X800X1100mm
-
Weight (KG):
-
30
-
Power (kW):
-
550w
-
Product name:
-
Saw blade sharpening machine
-
Power:
-
220V/50Hz
-
Rotating speed:
-
2800 RPM
-
Model:
-
XP- 870C Touch Type
-
Application:
-
Grinding Saw Blade
-
Advantage:
-
High Working Efficiency
-
Tungsten Grinding Wheel:
-
150X32X10mm
-
Weight:
-
110Kg
-
Packing Size:
-
800X800X1100mm

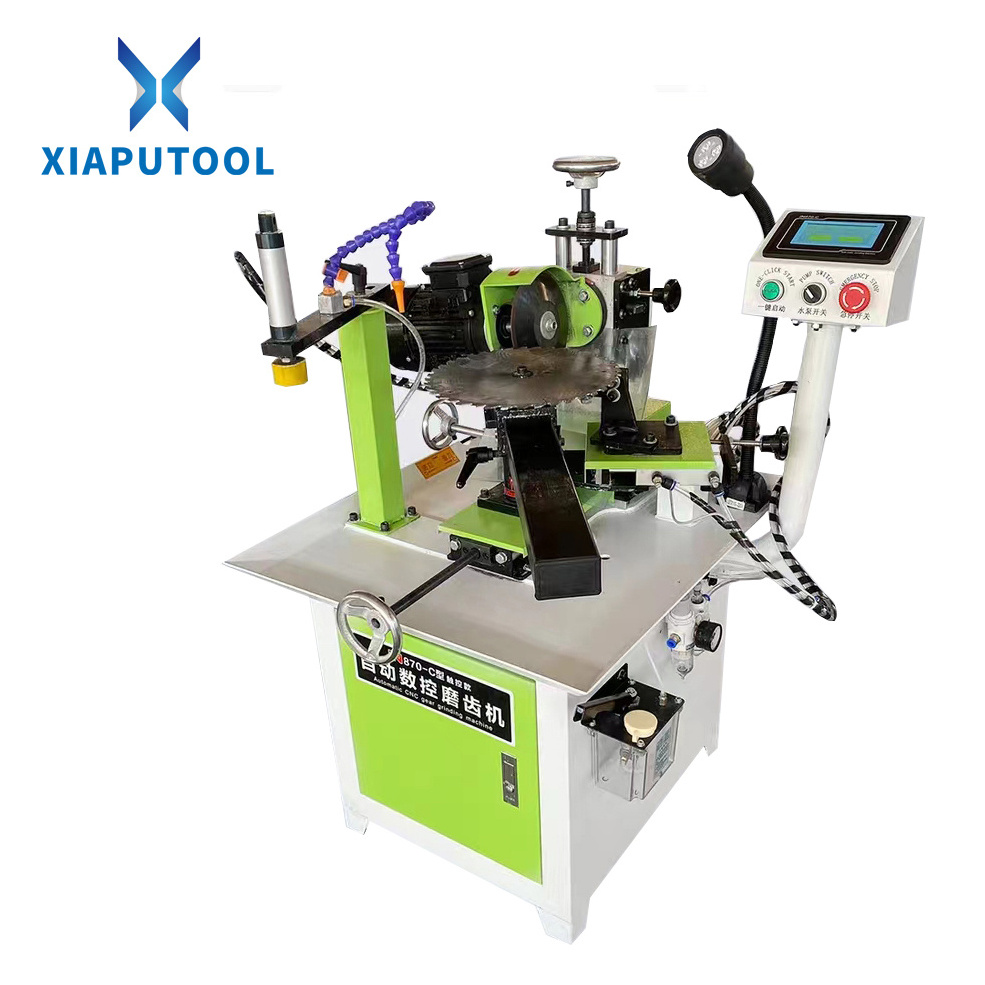

Touch Type Saw Blade Sharpening Machine
The machine is designed for sharpening various kinds of carbide tipped saw blades from size 100mm to 800mm. The equipment is widely used in wood processing plants, machining, alloy saw blade resharpening services and other industries.
The grinding machine has adjustable surround-shaped pallet to hold the saw blade or other abrasive pieces. Upgraded fully automatic machine, Pull-out speed: 0-55 tooth /min. Saw blade sharpener machine has the water cooling system and working lights, which is more convenient.
Touch Operation Panel with Main power switch key control, and equipped with emergency stop switch; Equipped with grinding count display; Separate switch for grinding wheel and water pump.
Copper motor is More reliable and efficient and Equipped with a tiltable motor base, the left and right tilt angle can reach 30°, which is more convenient to use.
Equipped with a low-noise water mill device, which can reduce the noise during the work; The machine has the advantages of simple structure, convenient operation, complete functions, high efficiency and energy saving, low carbon environmental protection and accurate grinding.
★ Strength factory, Factory direct.
● Preferred materials, quality assurance.
★ Complete specifications, non-standard customization.
● Stable delivery, professional customer service.
● Preferred materials, quality assurance.
★ Complete specifications, non-standard customization.
● Stable delivery, professional customer service.
Product Characteristics
❶
Fix the slide plate, install the clipping saw blade table and the adjustment nut for the depth of saw tooth grinding
❷
Intelligent panel to accurately display data
❸
High precision control electronic board, stable operation
❹
Alloy grinding wheel, high hardness, long service time
|
Saw Blades Size
|
100-800Mm
|
Blades Tooth Spacing
|
5-45Mm
|
||
|
Speed Of Pulling Teeth
|
0-55Pcs/Min
|
Grinding Wheel Rpm
|
2800 r/Min
|
||
|
Tungsten Grinding Wheel
|
150X32X10Mm
|
Grinding Wheel Power
|
550w
|
||
|
Air Pressure
|
0.6Mpa
|
Weight
|
110Kg
|
||
|
Voltage
|
220V/50Hz
|
|
|
||
|
Packing Size
|
800X800X1100mm
|
|
|
||
|
Teeth Type Available
|
Straight Teeth，Left-Right ,3-Left And 1-Right Teeth,3-Right And 1-Left
Teeth,Left--Rgiht And Left-Right Straight Teeth Etc.... |
|
|
||
