CNG cylinders are high-pressure containers used to store compressed natural gas. This high-pressure container containing flammable and explosive gas is a pressure container with explosive danger. The gas storage pressure of the vehicle cylinder is 20MPa.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Type1
-
Brand Name:
-
HLT
-
Product name:
-

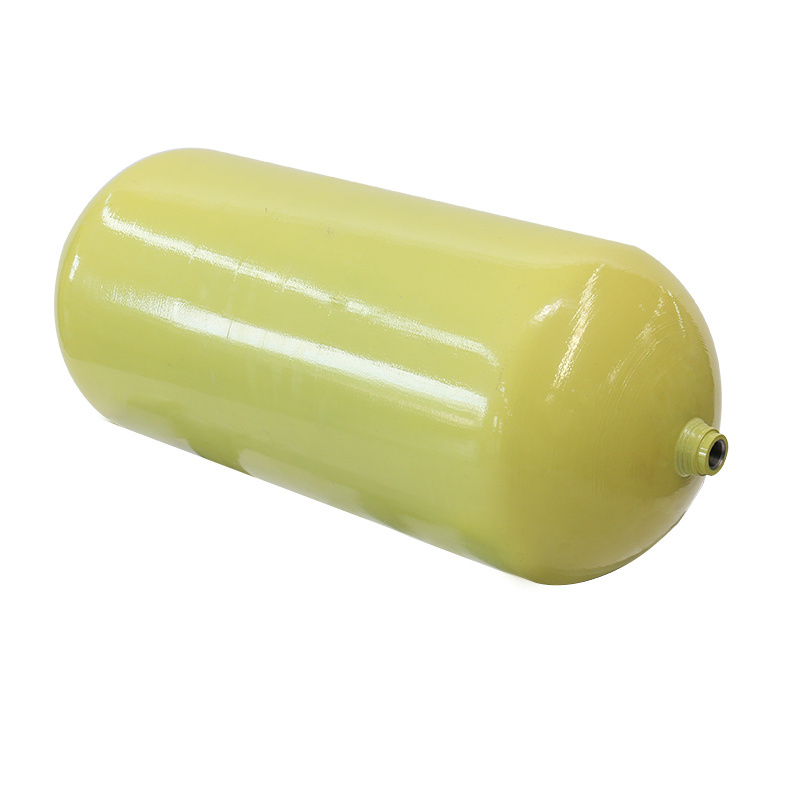

Type 1 Car CNG Cylinder for Vehicle
-
Certification:
-
ISO11439:2013,ECE R110
-
Working Pressure:
-
20Mpa
-
Water Capacity:
-
60L
-
Color:
-
Customer's Requirement
-
Height:
-
1223mm
-
Weight:
-
57.9kg
-
Application:
-
Car
-
Outside Diameter:
-
279mm
-
Wall Thickness:
-
6.0mm
Quick Details
-
Material:
-
30CrMo4
-
Use:
-
CNG
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
Type1
-
Brand Name:
-
HLT
-
Product name:
-
Type 1 Car CNG Cylinder for Vehicle
-
Certification:
-
ISO11439:2013,ECE R110
-
Working Pressure:
-
20Mpa
-
Water Capacity:
-
60L
-
Color:
-
Customer's Requirement
-
Height:
-
1223mm
-
Weight:
-
57.9kg
-
Application:
-
Car
-
Outside Diameter:
-
279mm
-
Wall Thickness:
-
6.0mm
Product Description
Product Description
Technical Parameters
Production Process
Quantity Control
Every cylinder we produced shall be Magnetic Test and Ultrasonic Inspection for 100% NDE check. Hydraulic and Air leakage Test are also 100% guaranteed.
Application
Certifications
Package & Delivery
Our Company & Factory
Wuxi Longterm Machinery Technologies Co., Ltd., located at Longshan Road, Xinwu District, Wuxi City. It is a professional research and development, production and sales of CNG gas cylinders for vehicles, low-temperature welding insulated gas cylinders, low-temperature storage tanks, D1 and D2 pressure vessels, long tube trailers, tube bundle containers, station gas cylinders and civil gas cylinders, etc. A manufacturing enterprise of large-scale special equipment of multiple types and varieties.
FAQ
Q1: Are you manufacturer or trade company?
A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 20 years.
Q2: What is your daily production capacity?
A2: Our production capacity everyday is 800~1000 units.
Q3: What is your delivery time?
A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
Q4: What certificates do you have?
A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
Q5: Do you accept OEM production?
A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
Q6: Can you provide samples to us?
A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
Q7: Can you customize the products?
A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your favorite colors.
