- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Champions
-
Model Number:
-
AG-C100
-
Operating Temperature:
-
-20℃ - +60℃
-
Working voltage:
-
12V/ 24V (optional)
-
Working Frequency:
-
315Mhz/433.92Mhz/other
-
Use range:
-
automitic gate/garage door/window etc.
-
Distance:
-
50-100 meter
-
Receiving sensitivity:
-
-105 dBm
-
Working mode:
-
Momentary/Toggle/Latched
-
Match code way:
-
Learning code,fixed code
-
Board size:
-
41*30*25mm
-
Output singal:
-
output with switch signal / output with voltage
-
Channel:
-
1 Channel
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Champions
-
Model Number:
-
AG-C100
-
Operating Temperature:
-
-20℃ - +60℃
-
Working voltage:
-
12V/ 24V (optional)
-
Working Frequency:
-
315Mhz/433.92Mhz/other
-
Use range:
-
automitic gate/garage door/window etc.
-
Distance:
-
50-100 meter
-
Receiving sensitivity:
-
-105 dBm
-
Working mode:
-
Momentary/Toggle/Latched
-
Match code way:
-
Learning code,fixed code
-
Board size:
-
41*30*25mm
-
Output singal:
-
output with switch signal / output with voltage
-
Channel:
-
1 Channel
Product Description

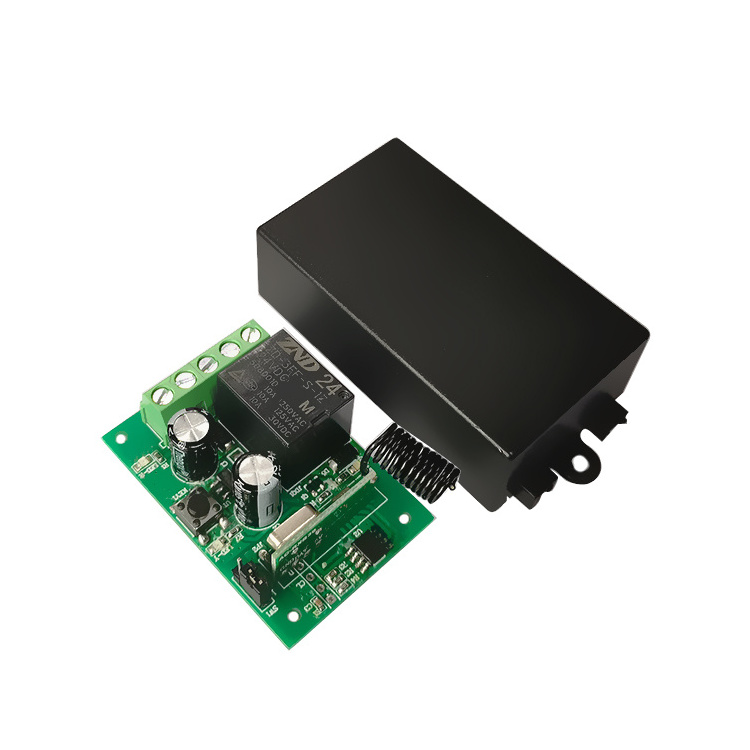

Factory Price 12V 1CH Relay Wireless RF Remote Control Switch Receiver for garage Gate Motor Light ON OFF Transmitter
Features:
It has 1 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn 60 pcs different remote controls.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn 60 pcs different remote controls.
|
Working Voltage
|
DC12V
|
|
Output Current
|
≤10A
|
|
Working Frequency:
|
433mhz
|
|
Receiving Sensitivity
|
-100db
|
|
Working mode
|
Momentary/Toggle/Latched
|
|
Modulation Mode
|
ASK
|
|
Support remote's chip type
|
Learning code 1527 / Fixed code 2260
|
|
Learn remotes
|
60PCS
|
|
Output Mode
|
Dry contact /Voltage output
|
|
Working temperature
|
-40℃- +80℃
|
|
Dimension
|
41*30*25mm
|
|
Transmitting Distance:
|
60-100 Meter(open space)
|
|
Certification:
|
CE, ROHS
|
|
Scope of Application:
|
Family mall anti-theft alarm system; All kinds of doors and windows electric car, car, motorcycle alarm,controller and other
industrial control. |
OutPut Way
The working way change can by jumper
A).Inching: Position 1,2,3 vacancy, no need jumper connect
Inching function: Press remote A button the controller relay 1 ON, release remote A button the controller relay 1 OFF
B).Interlock:Jumper connect 2,3
Interlock function: Press remote A button the controller relay 1 ON, press remote B button the controller relay 1 OFF, relay 2 ON
C). Self-lock: Jumper connect 1, 2
Self-lock function: Press remote A button the controller relay 1 ON, Press A button again the controller relay 1 OFF
Learning Remote Way
Power On,press learning button,the learning indicator light then off it means entering learning state, press any button of the remote control transmitter signal in 6 seconds,indicator light flash 4 times then ON, it means learning succeed. Remark: This controller can learning many different remote control, if beyond the first remote automatic clear.
