- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Lovely
-
Model Number:
-
BD-225D
-
Product name:
-
Digital concrete rebound test hammer
-
Sensor:
-
MOS image sensor
-
Strength range:
-
10~60 Mpa
-
Power Supply:
-
rechargeable built-in lithium battery
-
Hammer strock:
-
75mm
-
Weight:
-
4.6KGs
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Lovely
-
Model Number:
-
BD-225D
-
Product name:
-
Digital concrete rebound test hammer
-
Sensor:
-
MOS image sensor
-
Strength range:
-
10~60 Mpa
-
Power Supply:
-
rechargeable built-in lithium battery
-
Hammer strock:
-
75mm
-
Weight:
-
4.6KGs
Product Usage and Features

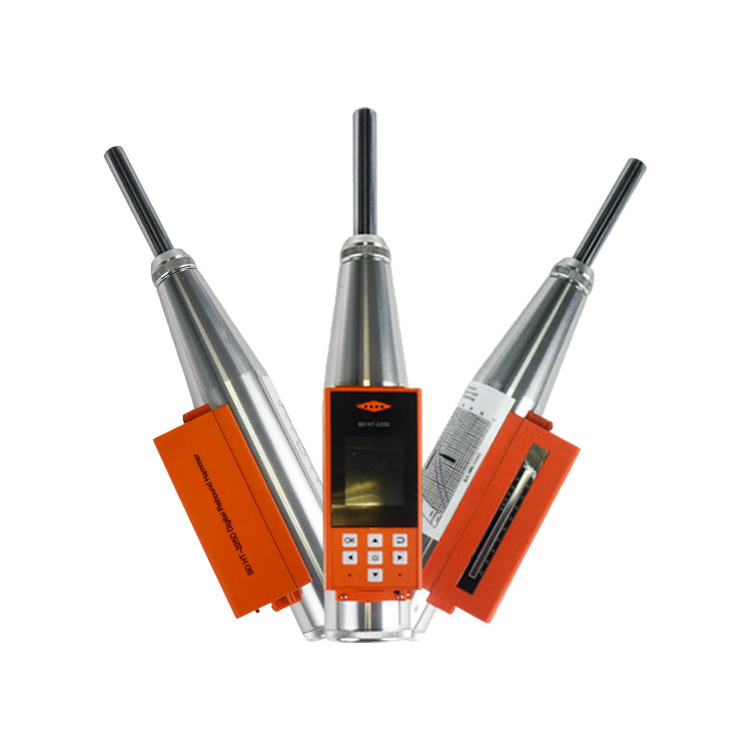

BD-HT225D Integrated Concrete rebound test hammer
Usage:
BD-HT225D Integrated
Concrete rebound test
hammer is a non-destructive testing and evaluation instrument for the compressive strength of hardened concrete in building structures. It can detect and record parameters such as rebound value, carbonization depth value angle, test surface and so on. The strength estimation results of the component can be given immediately after the detection is completed.
Features:
1.
Integrated design, small in size and easy to carry.
;
2.
The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable
;
3.
Special color screen display, automatic recording of detection time and date
;
4.
The parameters of angle, test surface, pumping and carbonization can be set on site
;
5.
Voice reading function, noisy environment can also be equipped with headphones to monitor
;
6.
Mini-printer to print test results on site (Optional)
;
7.
Ultra-low power design, continuous use of power supply for 8 to 10 hours;
8.
The upper computer software saves the data in Excel format, and can directly generate word report format. The later software processing is simple and convenient.
Parameters
|
Model
|
BD-HT225D
|
|
|
|
Sensor
|
MOS image sensor
|
|
|
|
Data
Acquisition
Terminal
|
Input mode
|
Automatically record rebound value
|
|
|
|
Data processing
|
Automatic date vevision, calculation and analysis
|
|
|
|
Display mode
|
LCD
|
|
|
|
System capacity
|
200,000 Measuring points
|
|
|
|
Power mode
|
Rechargeable large capacity lithium battery
|
|
|
|
Wolume
|
123*55*25mm
|
|
|
|
Weight
|
200g
|
|
|
Mechanical Rebound Tester
|
Range of strength measurement
|
10~60 Mpa
|
|
|
|
Nominal kinetic energy
|
2.207J
|
|
|
|
Stiffness of spring strike
|
7.84N/cm
|
|
|
|
Hammer stroke
|
75mm
|
|
|
|
Indicative Consistency error
|
＜0.5
|
|
|
|
Calibrated rebound value of steel anvil
|
80±2
|
|
|
|
Volume
|
55*55*270mm
|
|
|
|
Weight
|
1.0KG
|
|
|
Working environment requirements
|
Temperature: -10℃ ~ +40℃ Humidity： ＜90%RH
|
|
|
|
Packing Specification
|
Material: engineering plasticVolume:420*140*335mm
Weight: 6Kgs |
|
|
Detailed Images
Application
Contact US
Cangzhou Lovely Technology Co., Ltd.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
Our Customers and patent certificate
Packing & Delivery
FAQ
Q1:Are you a factory or trading company?
A:We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. We also deal with various related equipment based on customer's requirement.
Q2:Where is the nearest loading port?
A:Qingdao port or Tianjin port.
Q3:What’s the MOQ of the product? A: One set.
Q4:Did your factory pass the ISO 9001? A: YES.
Q5:How long is the production cycle after ordering?
A:Based on the order. Generally it is about 3-10 days.
Q6:What is the payment method?
A:T/T payment, West Union, L/C payment ect.
Q7: Do you support customizing service?
A: Yes, we could customize the out package, machine's color, Logo and Voltage as request. With more than 12 years' production experience. We would give you an excellent experience!
