Quick Details
-
Model Number:
-
SLS3200
-
Product Name:
-
battery water level sensor
-
Range:
-
0m~0.5m...300m
-
Accuracy:
-
15mm
-
Wireless transmission:
-
GFSK 433M/470MHM; spread spectrum 433M/470MHM; GPRS; 4G full Netcom
-
Power supply battery:
-
built-in 3.6V lithium battery 7000mAh
-
Standby power:
-
less than 0.03 mA
-
Battery life:
-
3 years (data sampling interval 3 seconds GFSK mode 25 °C test)
-
Wetted material:
-
304 stainless steel, 316, 316L, etc.
-
Process connections:
-
threads, flanges, etc.
-
Keywords:
-
wireless liquid level transmitter, level sensor
Quick Details
-
Warranty:
-
12 month
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
SLS3200
-
Product Name:
-
battery water level sensor
-
Range:
-
0m~0.5m...300m
-
Accuracy:
-
15mm
-
Wireless transmission:
-
GFSK 433M/470MHM; spread spectrum 433M/470MHM; GPRS; 4G full Netcom
-
Power supply battery:
-
built-in 3.6V lithium battery 7000mAh
-
Standby power:
-
less than 0.03 mA
-
Battery life:
-
3 years (data sampling interval 3 seconds GFSK mode 25 °C test)
-
Wetted material:
-
304 stainless steel, 316, 316L, etc.
-
Process connections:
-
threads, flanges, etc.
-
Keywords:
-
wireless liquid level transmitter, level sensor
OVERVIEW

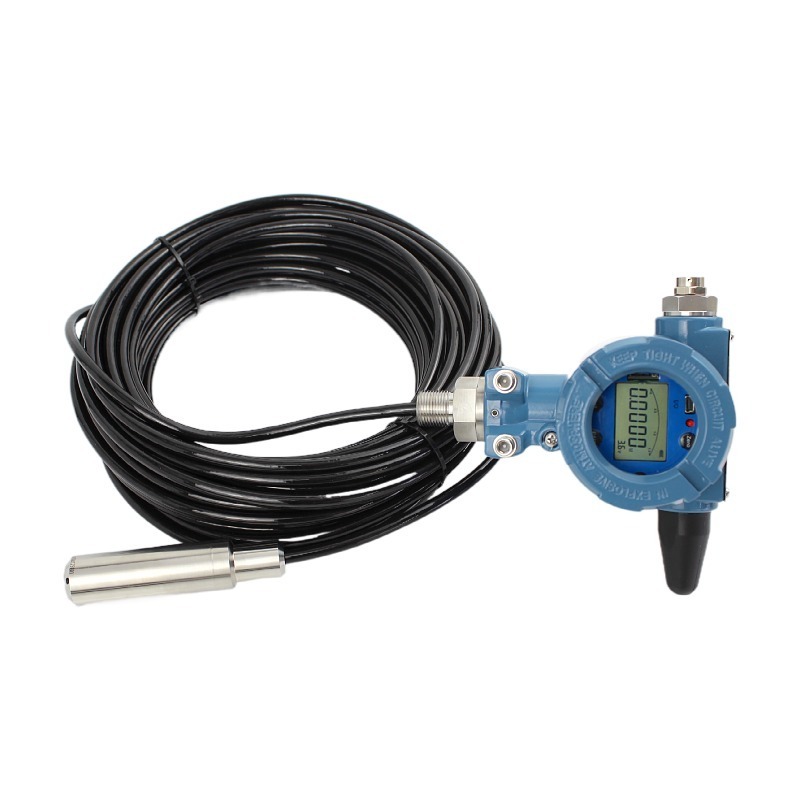

SLS3200 wireless level transmitter
is suitable for level monitoring of petroleum oil and water well production, storage and transportation process. It adopts micro-power wireless communication mode, no wiring is required, installation is faster, safer and more convenient. It has built-in high- precision pressure sensor, which can accurately display the pressure in real time, and has the characteristics of high stability and long-term stability.This type of digital pressure gauge is equipped with large-scale HD LCD display and built-in MCU. With mature GFSK/Lora/4G/IOT network, the on-site pipeline pressure is uploaded to the data center Or, it is can be matching with wireless switching device, which can convert many wireless pressure signals into MODBUS standard signals and transmit them through Ethernet or serial port.
|
Items
|
Parameter
|
|
|
||
|
Range
|
0m~0.5m...300m
|
|
|
||
|
Overload capability
|
≤ 2 times full scale
|
|
|
||
|
Pressure Type
|
G (gauge pressure), A (absolute pressure)
|
|
|
||
|
Accuracy
|
0.1% (custom), 0.25% (typical), 0.5% (maximum)
|
|
|
||
|
Long-term stability
|
±0.1%FS/year (typical), ±0.2%FS/year (maximum)
|
|
|
||
|
Zero temperature drift
|
±0.03%FS/°C, ±0.02%FS/°C
|
|
|
||
|
Sensitivity temperature drift
|
±0.03%FS/°C, ±0.02%FS/°C
|
|
|
||
|
Compensation temperature
|
0°C~50°C(typical), -10°C~65°C
|
|
|
||
|
Working temperature
|
-30°C~65°C
|
|
|
||
|
Power supply
|
3.6V lithium battery
|
|
|
||
|
Output Signal
|
Zigbee/Lora/4G/RTU
|
|
|
||
|
Reporting period
|
1 minute ~ 12 hours can be set
|
|
|
||
|
Display
|
4-digit LCD, 0~3 decimal point can be set
|
|
|
||
|
Transmission power
|
≤ 40mW
|
|
|
||
|
Communication distance
|
≥200m
|
|
|
||
|
Protection level
|
IP68
|
|
|
||
|
Explosion-proof grade
|
Ex d IIC T5 Gb
|
|
|
||
|
Process interface:
|
customized according to customer requirements
|
|
|
||
MAIN FEATURES
*Wireless transmission without single point wiring
*Hybrid ad hoc network, low communication cost
*Level sensor probe and material can be customized
*Lithium battery powered, can work in the wild environment
*Wireless transmission without single point wiring
*Hybrid ad hoc network, low communication cost
*Level sensor probe and material can be customized
*Lithium battery powered, can work in the wild environment
Products Description
LCD display, visual key operation
● Over high alarm indication
● Real time display of battery power
● On line display of signal strength
● Signal channel connection display
● Network group number / number display
3.6V/7.2V lithium battery power
● Large capacity lithium battery power supply
● Micro power design with "sleep + wake up"
● Long standby time
● Solve the conditions that cannot be wired
or powered
Cast aluminum shell,sealed design
● IP67 high protection level
● Laser marking, high recognition
● ExiaIIBT4 Ga explosion proof grade
● Compact antenna design, stable signal
transmission
Fully stainless steel high accuracy probe
● IP68 high protection level
●
316L diaphragm
●
≤ 2 times full scale overload capability
● ±0.1%FS/year Long-term stability
● 0.1% (custom), 0.25% (typical), 0.5% (maximum) accuracy range
● Anti-corrosion, wear resistance, shock resistance, water-proof cable wire
● ±0.1%FS/year Long-term stability
● 0.1% (custom), 0.25% (typical), 0.5% (maximum) accuracy range
● Anti-corrosion, wear resistance, shock resistance, water-proof cable wire
TYPICAL DIMENSION
WIRELESS GATEWAY
|
ITEMS
|
TECHNICAL PARAMETER
|
|
RS-485 interface
|
1
|
|
RS- 232 interface
|
1
|
|
Ethernet interface
|
1
|
|
USB interface
|
1
|
|
SIM interface
|
1
|
|
Communication protocol
|
Modbus RTU /ASCII/ TCP, customizable instrument protocol
|
|
Data transmission
|
GPRS / CDMA, Ethernet, WiFi, 433M, PLC, RS-485/ RS-232 and other options
|
|
Working power supply
|
24VDC
|
|
Power consumption
|
≤2W
|
|
Working temperature
|
-40°C ~ +80°C
|
|
Working humidity
|
≤95%
|
|
Size
|
100(W)*135(L)*30(H)mm
|
|
Weight
|
900g
|
