Stand EMC Chamber anechoic chamber for emc test

Stand EMC Chamber anechoic chamber for emc test

FOB Reference Price: Get Latest Price

≥1 Sets

US $301000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

NSA:: +-4dB

Dimension:: 9M(L)*6M(W)*6M(H)

Performance range:: 26 MHz - 40 GHz

Door size:: 1.2M*2M or customized

Power line filter:: According to your requirement

Signal filter:: According to your requirement

Website:: www.hmemc.com

Application:: EMC test

FU:: IEC61000-4-3

Quick Details

Brand Name:: HUAMING, HUAMING/HMEMC

Place of Origin:: Jiangsu, China

Model Number:: HM-SEC-3

NSA:: +-4dB

Dimension:: 9M(L)*6M(W)*6M(H)

Performance range:: 26 MHz - 40 GHz

Door size:: 1.2M*2M or customized

Power line filter:: According to your requirement

Signal filter:: According to your requirement

Website:: www.hmemc.com

Application:: EMC test

FU:: IEC61000-4-3

Products Description

HMEMC High performance 3m SEMI-EMC Chamber

HM-SACC-3 is a semi-anechoic chamber designed according to the 3m test distance, mainly composed of 3m method main anechoic chamber, operation control room and power amplifier room (conduction test room can be selected), used for 3m distance radiation immunity test and radiation Emission compliance testing. The complete anechoic chamber system can cover various standards such as CISPR, EN, FCC, GB, GJB, etc., and has the ability to upgrade to a full-anechoic chamber. It can be widely used in electromagnetic compatibility testing of IT products, household appliances, medical equipment, auto parts, small military electronic products, industrial electronic products, and communication fields. After adding special interface, special products can be tested, such as water meter, gas meter, electric energy meter, etc.

Product configuration

◆ Typical outside shield size : 9m(length)×6m(width)×6m(height). ◆ Shielding structure : SmartShield Twin Wally double-layer shielding structure is adopted, from the inside to the outside are high-performance composite tapered absorbing material, ferrite, anti-corrosion multilayer board and standard shielding module, in two adjacent standard shielding modules Use conductive shielding gasket Gasketi for good RF shielding and electrical contact connections. ◆ Standard shielding module : The size is 3m×1m, and it is made of 2mm thick double-sided galvanized steel sheet by bending twice on four sides. The thickness of double-sided galvanized steel sheet is ≥2mm, the thickness of galvanized layer is ≥20um, and the thickness is uniform. The modules are connected with ‘level 8.8’ M10 screws.

◆Absorbing structure:

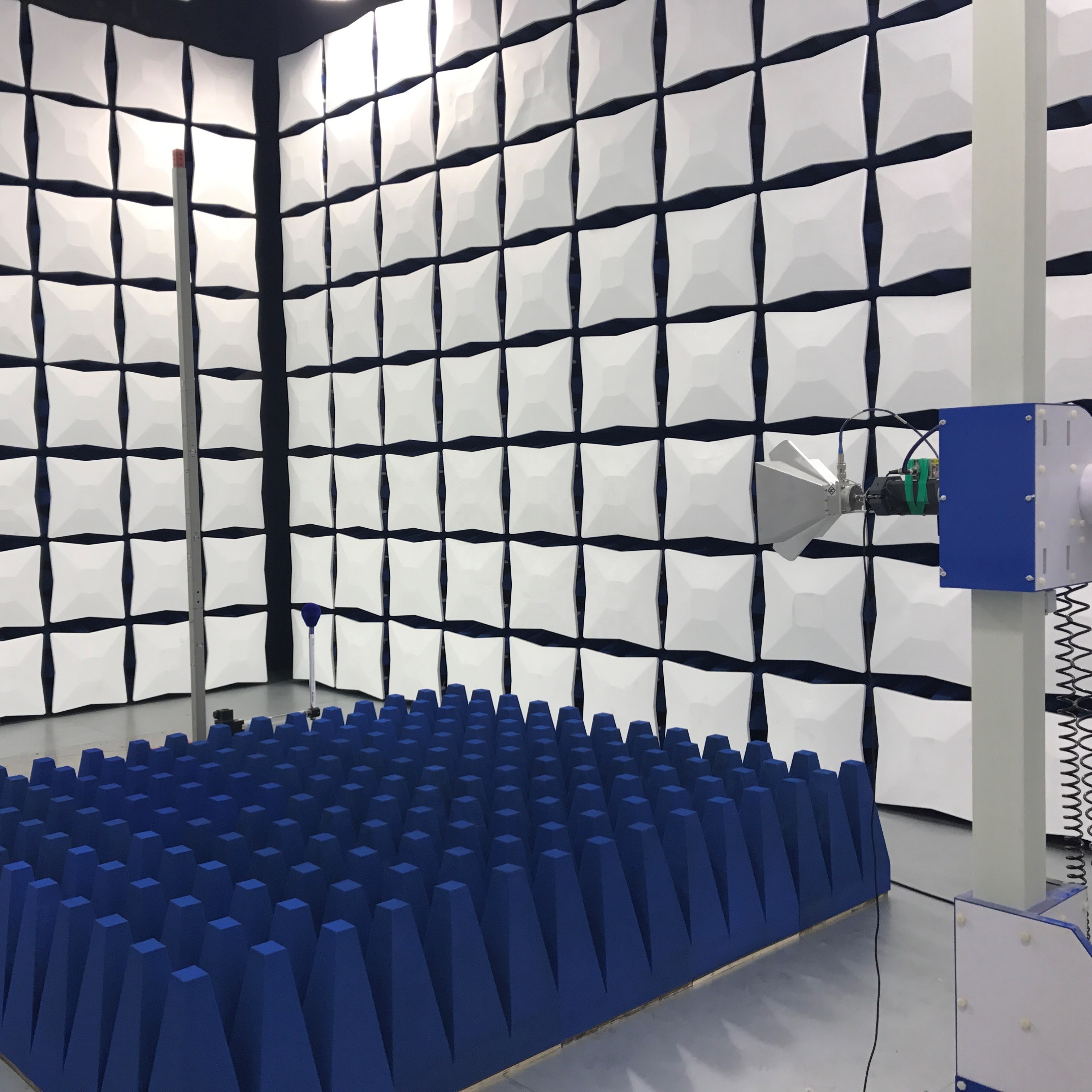

The anechoic chamber wall absorbing structure is composed of low-frequency absorbing material ferrite tiles(100mm×100mm×6.7mm) and high-performance composite cone EPP absorbing material "HM-HPA"; the ground moveable absorbing material is composed of HM-BPA EPP absorbing material and ferrite tiles. The absorbing material can be covered with a white reflector to beautify the interior environment and increase brightness.

◆ Shielding door : 1m×2m., 1.2m×2m or 1.5m×2 and 4m×4m and other sizes can be selected, and special size design can also be made according to needs. The opening types include manual, electric, pneumatic, and semi-automatic rails, etc.

◆Honeycomb vent:

The size is 450mm×450mm (with flame), the cut-off frequency is 18GHz, and the 40GHz model can be selected according to needs.

◆Elevated floor:

The load is 1 ton/m, and the height is generally 20cm to 30cm, which is consistent with the load capacity of the turntable.

◆Embedded turntable:

The diameter is 2m, the load is 1 ton, and it can also be customized according to needs.

◆Antenna lift tower:

lift up to 4m high, with horizontal and vertical polarization, can install various types of antennas.

◆ Video system : 2 sets of digital color monitoring systems, one of which is fixed on the wall and the other is movable on the ground.

◆ EMI Filter : used for 380V, 220V, 110V, DC, etc. of power supply, as well as signal filtering of network and communication.

Main performance

◆ Radiated immunity test : meet the requirements of IEC/N61000-4-3 and other standards.
◆ Radiated emission test : meet the requirements of EN50022, EN50147-2, GB151A and GB152A and other standards.
◆ Quiet zone size : inside a cylinder with a diameter of 2 meters and a height of 2 meters
◆ Shielding effectiveness : meet the standard N50147-1 or better
◆ Normalized Site Attenuation (NSA) : Within 30MHz-1GHz, according to CISPR16-1-4 and ANSI C63.4 standard, ±4.0dB, ±3.5dB can be selected
◆ Field uniformity (FU) : measured according to the requirements of EC61000-4-3, within 0~6dB
◆ Site VSWR (sVSWR) in the range of 1GHz-18GHz according to CISPR16-1-4 standard is not more than 6dB
◆ Ambient Background Noise (ABN) : 10dB lower than the limit specified in the CISPR22 standard

Our Advantages

◆ Can pass the test of a third-party agency designated by the customer
◆ HMEMC can customize different chamber sizes according to customers
◆ Chamber doors of different sizes and opening and closing methods are available
◆ EMI Filters of different specifications are available
◆ HMEMC promises multi-year warranty
◆ High-performance EPP absorbing materials and economical FOAM absorbing materials are available
◆ Several engineers with dozens of high-performance chamber installation experience as project managers
