Quick Details
-
Gross Vehicle Weight:
-
Customized
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service
-
Dimensions (L x W x H) (mm):
-
Customized
-
Place of Origin:
-
Hubei, China
-
Forward Shift Number:
-
Customized
-
Vessel Capacity:
-
5m³~40m³
-
Max. Payload:
-
2 tons ~ 20 tons or Customized
-
Material:
-
SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.
-
Design Pressure:
-
1.724MPa/1.61 MPa or Customized
-
Design Temperature:
-
-20~50℃ or Customized
-
Corrosion Allowance:
-
1 mm or Customized
-
Test Pressure (Hydraulic Horizontal):
-
2.25MPa or Customized
-
Air Test Pressure:
-
1.724MPa or Customized
Quick Details
-
Condition:
-
New
-
Drive Wheel:
-
Customized
-
Brand Name:
-
CIMC HONTO
-
Gross Vehicle Weight:
-
Customized
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service
-
Dimensions (L x W x H) (mm):
-
Customized
-
Place of Origin:
-
Hubei, China
-
Forward Shift Number:
-
Customized
-
Vessel Capacity:
-
5m³~40m³
-
Max. Payload:
-
2 tons ~ 20 tons or Customized
-
Material:
-
SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.
-
Design Pressure:
-
1.724MPa/1.61 MPa or Customized
-
Design Temperature:
-
-20~50℃ or Customized
-
Corrosion Allowance:
-
1 mm or Customized
-
Test Pressure (Hydraulic Horizontal):
-
2.25MPa or Customized
-
Air Test Pressure:
-
1.724MPa or Customized
Products Description

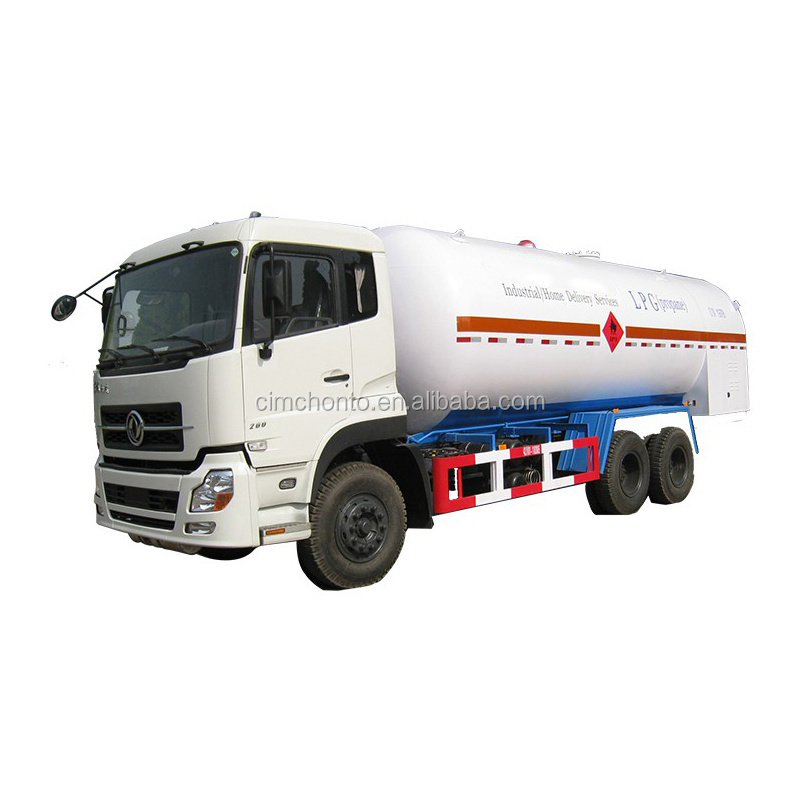

LPG Bobtail Tanker
HONGTU is qualified to design and manufacture bobtail tankers with pumps and loading & unloading system on the side or at the rear of the tankers. The pump can be driven by PTO, hydraulic oil or electric motors. The valves and instruments used on the bobtail tankers are well-known international brands, catering to application requirements of Europe, America, Southeast Asia and other countries.
Technical Specification
Design Code:
ASME BPVC VIII-1/VIII-2, EN 12493, GB/T 19905, JB 4732
Vessel Capacity:
5m³~40m³
Material:
SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.
The information of CIMC HONTO LPG bobtail tank truck listed in below tables are only for recommendations and references. CIMC Hongtu, as the TOP 1 manufacturer of LPG transport tankers in China, can provide customized products according to customers' requirements.
SPECIFICATIONS
|
I. ASME Code
|
|
|
|
|
|
|
||||||
|
Volume
|
5m³
|
10m³
|
17.04m³
|
21.6m³
|
22m³
|
23.3m³
|
||||||
|
*Max. Payload
|
2300kg
(2.5 t)
|
4600kg
(5 t)
|
7890kg
(8.52 t)
|
10000kg
(10.8 t)
|
10000kg
(11 t)
|
11110kg
(11.65 t)
|
||||||
|
Kerb Weight
|
-
|
-
|
-
|
15560kg
|
15170kg
|
14800kg
|
||||||
|
Gross Vehicle Weight
|
-
|
-
|
-
|
25560kg
|
25300kg
|
26040kg
|
||||||
|
Outline Dimension
|
L:7482mm
W:2400mm
H:2640mm
|
L:8387mm
W:2400mm
H:2690mm
|
-
|
L:9945mm
W:2500mm
H:3550mm
|
L:10130mm
W:2500mm
H:3550mm
|
L:10340mm
W:2490mm
H:3650mm
|
||||||
|
Design Pressure
|
1.724MPa
|
1.724MPa
|
1.724MPa
|
1.724MPa
|
1.724MPa
|
1.724MPa
|
||||||
|
Design Temperature
|
50℃
|
50℃
|
50℃
|
-20/50℃
|
50℃
|
-23.3/51.7℃
|
||||||
|
Corrosion Allowance
|
1 mm
|
1 mm
|
1 mm
|
1 mm
|
1 mm
|
0
|
||||||
|
Material of Shell
|
SA-516
|
SA-516
|
SA-612
|
SA-612
|
SA-612
|
SA-612
|
||||||
|
Material of Head
|
SA-516
|
SA-516
|
SA-612
|
SA-612
|
SA-612
|
SA-612
|
||||||
|
Thickness of Shell
|
10mm
|
12mm
|
11.66mm
|
12.5mm
|
12.19mm
|
12.5mm
|
||||||
|
Thickness of Head
|
10mm
|
12mm
|
11.87mm
|
8mm
|
7mm
|
8mm
|
||||||
|
Test Pressure
(Hydraulic Horizontal)
|
2.25MPa
|
2.25MPa
|
2.25MPa
|
2.25MPa
|
2.25MPa
|
2.25MPa
|
||||||
|
Air Test Pressure
|
1.724MPa
|
1.724MPa
|
1.724MPa
|
1.724MPa
|
1.724MPa
|
1.724MPa
|
||||||
|
*Please note that different medium component will cause different density and different payload.
**Please contact for more different kinds of capacity and standard tanks.
|
|
|
|
|
|
|
||||||
|
II. Chinese GB Standard
|
|
|
|
|
|
|||||
|
Capacity
|
10m³
|
13.58m³
|
20m³
|
23.81m³
|
36m³
|
|||||
|
*Max. Payload
|
4200kg
(5 t)
|
5700kg
(6.79 t)
|
8400kg
(10 t)
|
10000kg
(11.905 t)
|
15120kg
(18 t)
|
|||||
|
Kerb Weight
|
10800kg
|
10170kg
|
15300kg
|
15320kg
|
15750kg
|
|||||
|
Gross Vehicle Weight
|
15130kg
|
1600kg
|
23700kg
|
25450kg
|
31000kg
|
|||||
|
Outline Dimension
|
L:8830mm
W:2490mm
H:3050mm
|
L:8140mm
W:2450mm
H:3450mm |
L:11800mm
W:2495mm
H:3937mm
|
L:10040mm
W:2490mm
H:3580mm |
L:11980mm
W:2500mm
H:3770mm |
|||||
|
Design Pressure
|
1.61/-0.1 MPa
|
1.61/-0.1 MPa
|
1.61/-0.1 MPa
|
1.61/-0.1 MPa
|
1.61 MPa
|
|||||
|
Design Temperature
|
50℃
|
50℃
|
-20/50℃
|
50℃
|
-20~50℃
|
|||||
|
Corrosion Allowance
|
1 mm
|
1 mm
|
1 mm
|
1 mm
|
1 mm
|
|||||
|
Material of Shell
|
Q345R
|
Q345R
|
Q345R
|
Q345R
|
Q420R
(WH590D)
|
|||||
|
Material of Head
|
Q345R
|
Q345R
|
Q345R
|
Q345R
|
Q345R(N)
|
|||||
|
Thickness of Shell
|
9mm
|
10.5mm
|
9.5mm
|
12mm
|
9.8mm
|
|||||
|
Thickness of Head
|
10mm
|
11mm
|
10mm
|
13mm
|
8mm
|
|||||
|
Hydraulic Test Pressure
|
2.10MPa
|
2.10MPa
|
2.10MPa
|
2.10MPa
|
-
|
|||||
|
Pressure of Leak Test
|
1.61MPa
|
1.61MPa
|
1.61MPa
|
1.61MPa
|
-
|
|||||
|
*Please note that different medium component will cause different density and different payload.
**Please contact for more different kinds of capacity and standard tanks.
|
|
|
|
|
|
|||||
Certifications
ASME U Certificate
ASME U2 Certificate
Certificate of Authorization to Register NB
KGS Certificate
ADR
GB/T28001-2011/OHSAS18001:2007
OCCUPATIONAL HEALTH AND SAFETY MANAGEMENT SYSTEM CERTIFICATE
GB/T19001-2016/ISO9001:2015
QUALITY MANAGEMENT SYSTEM CERTIFICATE
GB/T24001-2016/ISO14001:2015
ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE
SY/T6276-2014, Q/SY1002.1-2003, Q/SHS0001.1-2001
HSE MANAGEMENT SYSTEM CERTIFICATE
Manufacture License of Special Equipment
Pressure Vessel
Design License of Special Equipment
Pressure Vessel
Design License of Special Equipment
Pressure Pipe
