Quick Details
-
Keyword:
-
Moduler Homes
-
Type:
-
Assembled Fat Pack Container House
-
Color:
-
Customized Color
-
Name:
-
Sandwich Panel Steel Structure Container House
-
Size:
-
20ft 0r 40ft
-
Application Fields:
-
Steel Structural Fabrication Construction
-
Certification:
-
CE Certification
-
Advantage:
-
Environmental Protection Low Cost Recycle
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
CDPH
-
Product name:
-

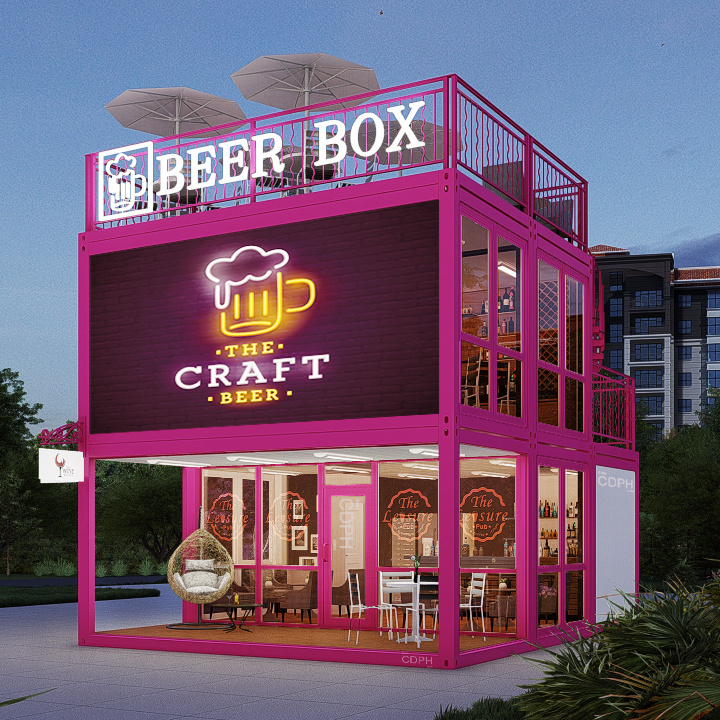

Prefab Shipping container pop up coffee shop restaurant mobile Bar
-
Keyword:
-
Moduler Homes
-
Type:
-
Assembled Fat Pack Container House
-
Color:
-
Customized Color
-
Name:
-
Sandwich Panel Steel Structure Container House
-
Size:
-
20ft 0r 40ft
-
Application Fields:
-
Steel Structural Fabrication Construction
-
Certification:
-
CE Certification
-
Advantage:
-
Environmental Protection Low Cost Recycle
PRODCUT DESCRIPTION
Outside View
Internal View
Design View
Details View
|
Specification
|
1
|
L*W*H（mm）
|
6055*2990*2900（internal 5805*2740*2540）
|
|
|
2
|
Roof Type
|
Corrugated, roof draining via 4 pipes at the corner
|
|
Frame
|
3
|
Corner Column
|
Profile: L210*150mm, galvanized, t=2.5mm, metal code SGH340
|
|
|
4
|
Roof Beam
|
Profile: 185mm, galvanized, t=2.5mm, metal code SGH340
|
|
|
5
|
Floor Beam
|
Profile: 160mm, galvanized, t=2.5mm, metal code SGH340
|
|
|
6
|
Roof Purlin
|
Profile: square tube 60*60*1.5mm, metal code Q235B
|
|
|
7
|
Floor Purlin
|
Π type high strength, 101*1.0mm profile, metal code Q345
|
|
|
8
|
Painting
|
Bottom painting and surface painting, thickness 40μm, grey white
|
|
Roof
|
9
|
Roof Cladding
|
0.4mm thick, galvalume metal sheet, white color
|
|
|
10
|
Insulation
|
75mm glass wool, one side with aluminum film, density≥14kg/m³
|
|
|
11
|
Ceiling
|
0.35mm thick, galvalume metal sheet, white color
|
|
Floor
|
12
|
Flooring Sheet
|
1.6mm PVC flooring sheet
|
|
|
13
|
Base Plate
|
18mm thick fiber cement board, density≥1.3g/cm³
|
|
Wall
|
14
|
Thickness
|
50mm panel, both sides 0.35mm metal sheet, grey white color
|
|
|
15
|
Insulation
|
Glass wool, density 50kg/m³
|
|
Door
|
16
|
Size（mm）
|
WXH=840*2035
|
|
|
17
|
Profile
|
Metal door
|
|
Window
|
18
|
Size（mm）
|
WXH=1120*1100
|
|
|
19
|
Frame Profile
|
PVC integrated sliding window with security bar and screen
|
|
|
20
|
Glass
|
4mm+9A+4mm double glazed
|
|
Electrics
|
21
|
Voltage
|
220V~250V
|
|
|
22
|
Electric Wires
|
Main circuit BVVB-3*6.0, air conditioner BVVB-3*4.0, socket BVVB-3*2.5, lighting BVVB-3*1.5
|
|
|
23
|
DB Box
|
10 digit unexposed PVC box*1（Including high breaking circuit breaker 10A/1P, high breaking circuit breaker 20A/2P, high breaking
circuit breaker 5A/2P, leakage protection circuit breaker 16A/2P, 1 piece each break） |
|
|
24
|
Lighting
|
LED lamp（LED 16.5W*2）*2
|
|
|
25
|
Socket
|
Industrial socket（3P/32A）*1, three pole multi-functional socket（250V 16A）*4, one gang switch*1
|
|
Plumping and Sanitary
|
26
|
Sanitary Wares
|
Wash basin, toilet, shower, faucet, mirror, towel rail, soap holder, water supply and drainage pipelines, etc.
|
|
Fittings
|
27
|
Flashing Part
|
0.5mm metal sheet, white color
|
|
|
28
|
Ground Channel
|
0.8mm metal sheet, white color
|
|
Option
|
29
|
Awning
|
50mm thick glass wool awning, 1150mm wide
|
