DX Rain Gutter Roll Making Machinery
DX Rain Gutter Roll Making Machinery
DX Rain Gutter Roll Making Machinery
DX Rain Gutter Roll Making Machinery
DX Rain Gutter Roll Making Machinery
DX Rain Gutter Roll Making Machinery
DX Rain Gutter Roll Making Machinery
DX Rain Gutter Roll Making Machinery

DX Rain Gutter Roll Making Machinery

FOB Reference Price: Get Latest Price
≥1 Sets
US $10000
≥11 Sets
US $5000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Rolling thinckness:
0.3-0.8mm
Place of Origin:
Hebei, China
Brand Name:
dixin
Voltage:
380v
Weight:
4 kg
Marketing Type:
New Product 2023
Product name:
Seamless flume pressing machine equipment
Usage:
Rainwater Downspour
Main frame:
300-450
Advantage:
Low Cost
Raw Material Thickness:
0.3-1.5 Mm
After Warranty Service:
Video technical support
Roller material:
45#steel Chrome Plated
Frame:
300H Steel Weld
Material type:
GI Material
Decoiler:
5T Manual Decoiler

Quick Details

Type:
Tile Forming Machine
Tile Type:
Colored Steel
Production Capacity:
8-12m/min
Rolling thinckness:
0.3-0.8mm
Place of Origin:
Hebei, China
Brand Name:
dixin
Voltage:
380v
Weight:
4 kg
Marketing Type:
New Product 2023
Product name:
Seamless flume pressing machine equipment
Usage:
Rainwater Downspour
Main frame:
300-450
Advantage:
Low Cost
Raw Material Thickness:
0.3-1.5 Mm
After Warranty Service:
Video technical support
Roller material:
45#steel Chrome Plated
Frame:
300H Steel Weld
Material type:
GI Material
Decoiler:
5T Manual Decoiler

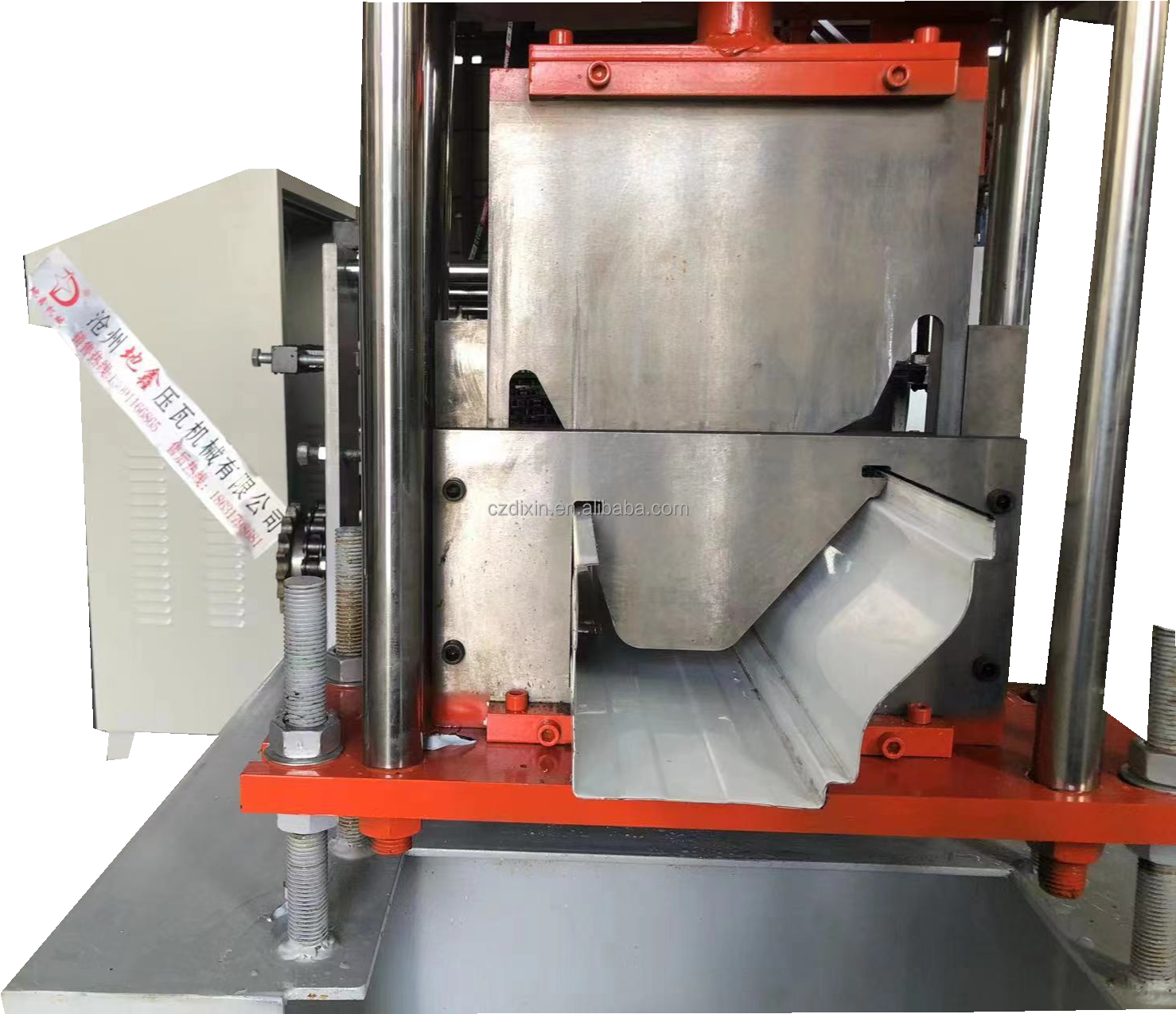

CE Approved M ulti-role Automatic Rain Gutter Roll Making Machinery

Product Description

It can form rain gutter profiles according to customer’s requirement continuously, automatically cut to length. AC frequency and adjusting the speed technology, and it realizes the continuous automatically production. Therefore, it is really a new type of energy-saving and high-effective equipment for metal rain gutters. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.

Technical Parameters

1.Suitable material

Color steel sheet/galvanized steel sheet/aluminum sheet

2.Installation Dimension (L*W*H):

6.5m*1.5m*1.4m

3.Main motor power

7.5KW with Cycloidal reducer

4.Hydraulic station power

5KW

5. Hydraulic oil pump

CB-E 310

6.Thickness of material

0.2mm~0.8mm

7.Diameter of principal axis

Φ70-90mm

8.Material expand width

1000,1200,1250mm

9.Electric tension

380V 3phase 50HZ or as the customer's requirements

10.Material of roller

High grade 45# forged steel plated with

hard chrome plating

11.Controlling system

PLC

12.Processing speed

3-10m/min

13.Processing precision within

1.00mm (depend on design)

14.Material of cutting blade

Cr12 mould steel with quenched treatment

15.Kind of drive

0.6 inch chain link bearing model 6210

16.Roller station

8-20 Rollers

17.Roller material

high grade 45#steel; Cr12 quenching

18. Leak frame load-bearing

4.6T

Main Products

FAQ
1. Package
1).Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.
2. Delivery Time: 50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.
3. Payment: 30% paid by T/T as deposit, 70% paid by T/T before loading.Support Alibaba credit insurance orders and LC
4. Quality Warranty : 15 months from time of loading by seller quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.
5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.
2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-15131782831
If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.

WHY CHOOSE US?

Point 1 : We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2 : Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3 : I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request. Point 4 : About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5 : About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6 : The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7 :About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
client feedback

USAGE AND FEATURE

The feature looks beautiful, elegant and noble. those are widely used in building the factory, hotel, and mobile house and so on.

This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers ' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.

REMARKS

1 .The machine can according to your requirement to set the color

2. Within in one year if any parts go broken we will send new ones to replace for free

3. If you want to learn more about the product please login our website or contract to us

SERVICE

One years for free, after the warranty period. we will help you repair the machine, you only responsible for the labour and parts, when the machine have some problem

EXPORT MARKET

Russia , India, English, Australia, America, Kazakhs tan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions.

TERMS

1. Delivery: in stock

2. Package: Export Standard package for container

3. Validity: good for 30days

Our Services


1. We provide 1 year warranty for our customers.
2. Any parts damaged because of quality problem will be changed for free within the first year.
3. Technical support is provided for free in the whole life of the machine.
