Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
100
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZILANSOLAR
-
Model Number:
-
Z-NC5810
-
Inner tank material:
-
Stainless Steel SUS304-2B/SUS316
-
Outer tank material:
-
Galvalnized Metal-Steel
-
Insulation layer:
-
50mm Foam Polyurethane
-
Solar tube:
-
CU/SS-AL/N
-
Frame material:
-
1.5mm Galvanized Steel
-
Certification:
-
CE,ISO
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Outdoor, Hotel, Garage, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
100
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZILANSOLAR
-
Model Number:
-
Z-NC5810
-
Inner tank material:
-
Stainless Steel SUS304-2B/SUS316
-
Outer tank material:
-
Galvalnized Metal-Steel
-
Insulation layer:
-
50mm Foam Polyurethane
-
Solar tube:
-
CU/SS-AL/N
-
Frame material:
-
1.5mm Galvanized Steel
-
Certification:
-
CE,ISO

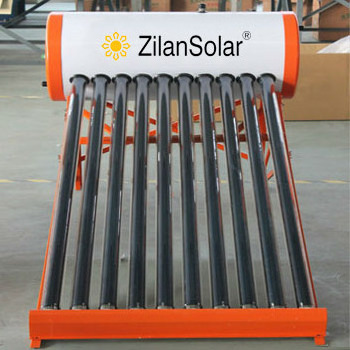

1, Photos :
2, Material:
<1> Imported SUS304-2B food-level stainless steel,thickness:0.31~0.5mm
<2> Outer tank: High quality coated steel,thickness:0.31~0.5mm
<3> Insulation: 50~55mm polyurethane foam
<4> Vacuum tube: CU/SS-AL/N red tube
<5> Frame: Coated steel/Aluminum alloy,thickness:1.2~2mm
<6> Reflector: Stainless steel/Aluminum alloy as option
<7> Available accessories: Feeding tank,solar controller,electric heater, Mag rod,thermostatic mixing valve
3, Size range:
| ITEM.NO | SPECIFICATION | EFFECTIVE LIGHT AREA | TANK'S CAPACITY | APPLICATION PEOPLE | CBM | ||||
| DIAMETER OF WATER TANK | QTY OF TUBE(pcs) | DIAMETER OF TUBE | LENGTH OF TUBE | ||||||
| Z-NC5810 | 460mm | 10 | 58mm | 1.8m | 1.04 | 100L | 4 | 0.37 | |
| Z-NC5812 | 460mm | 12 | 58mm | 1.8m | 1.25 | 120L | 4-5 | 0.44 | |
| Z-NC5815 | 460mm | 15 | 58mm | 1.8m | 1.56 | 150L | 6 | 0.56 | |
| Z-NC5818 | 460mm | 18 | 58mm | 1.8m | 1.87 | 180L | 7-8 | 0.64 | |
| Z-NC5820 | 460mm | 20 | 58mm | 1.8m | 2.08 | 200L | 8 | 0.7 | |
| Z-NC5825 | 460mm | 25 | 58mm | 1.8m | 2.61 | 250L | 10 | 0.89 | |
| Z-NC5830 | 460mm | 30 | 58mm | 1.8m | 3.13 | 300L | 12 | 1 | |
| Z-NC5836 | 460mm | 36 | 58mm | 1.8m | 3.75 | 360L | 14-15 | 1.3 | |
| Z-NC5840 | 460mm | 40 | 58mm | 1.8m | 4.17 | 400L | 16 | 1.4 | |
| Z-NC5845 | 460mm | 45 | 58mm | 1.8m | 4.69 | 450L | 18 | 1.6 | |
4, Payment
<1> T/T(wire transfer)
<2> L/C at sight
<3> 30% T/T in advance as deposit, the rest paid before shipment
<4> 30% T/T in advance as deposit, the rest paid against B/L copy
5, Certificate
6, Our advantages:
<1> We have 8 senior engineers working on development. that will make us lead the trend whatever on structure or technolgy
<2> 15 QC control the quality, just make sure all is right
<3> Aftersale service is quick, any problem you mentioned will be dealt with in 24 hours!
<4> Our professional salesmen always online for your questions
7, Factory photos:
8, Contact:
Mr Krista Zhang
Position: Sales manager
Phone: 86-573-87090146
Mob/whatsapp: +8618857389277
Facebook/Wechat: Zilansolar
Skype: Krista025
Website: www.zilansolar.com
For more details, pls send email to us, thanks!
