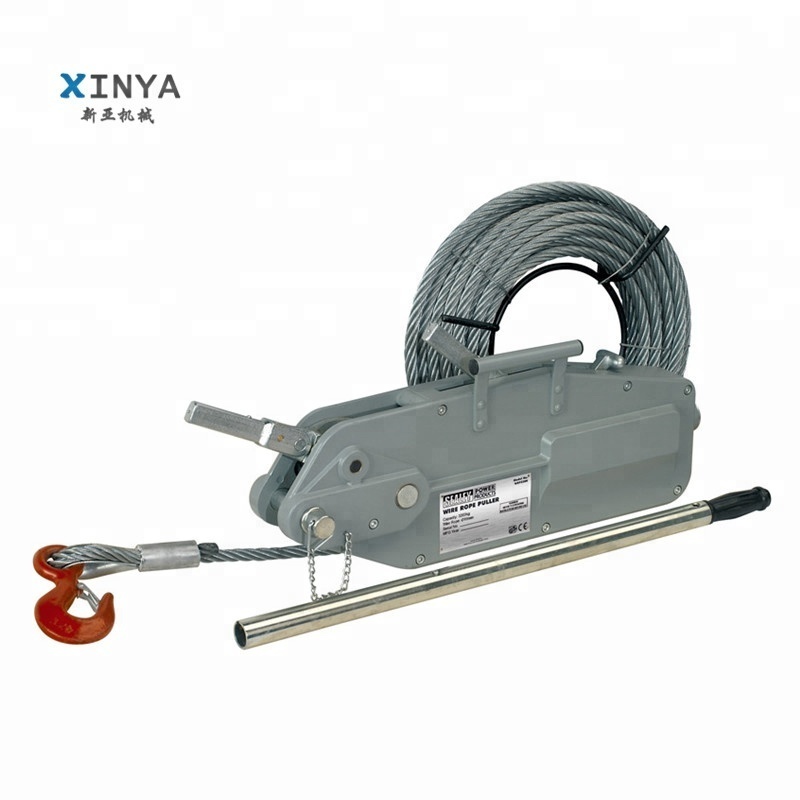

Hand Operated Wire Rope Lever Hoist / Wire Rope Pulling Winch Hoist

Hand Operated Wire Rope Lever Hoist / Wire Rope Pulling Winch

Mechanism:

VIT need not accompany awire-drum for rolling up wire rope,and is therefor small in size,light in weight.By moving the handle,left and right,wire rope passes through,VIt as if were hauled hand by means of tow chucks equipped inside the body.This is  very simply done and no experience is necessary.

Features

1. Measures small and light.

2. Equipped with two safety devices,and this guarantees safe operattions.

3. Wire rope is drawn out straight,by distant operation regardless of wire lengths.

4. Transmission at a speed 3 meteres per minute,and thisi the fastest agmaong all hand- driven hauling devices.

5. Wire Rope can be used at any working temperature degrees.

6. Equipped with a safety hook.Preventing wire rope from coming off while operation.

7. Mose rationally planned,desined and duable.

8. light,powerful,easy to move and to used,these machines make it possible to solve the numerouns pulling and lifting problems in a practical and safe manner

Application

Construction

1. dam structures-pulling of frame

2. laying of steel or concrete pipe

3. concrete pite laying

4. seal pite pulling

5. combinte of fume tube

Railway

1. Pulling of rail

2. Removal of  van or wagon

3. Laying of track

4. shunting and maintenance of rolling stock

Shipbuilding(shipbuiding company)

1. working of locks

2. Stowing of cargo

3. shipping of dinghles

Transport

1. Positioning of boiler

2. Machines

3. Maintenance

4. Loading of car

5. Emergency

6. Loading and unloading of bulky and heavy packages.

Use and Characteristic

1) Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.
2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3) The hoist has low maintenance requirements and is easy service.
4) Overload protection ensures high personal safety when in operation.
5) Specially built-in shear pins can be replaced without removing the load.

,Customer in Heart, Quality in Hand, Technology in the Lead.

Structure

Technical Data
