Quick Details
-
Brand Name:
-
SEA
-
Product name:
-
Electromagnetic Brass Valve
-
Model No.:
-
FCDJ-09
-
Pipe Diameter:
-
1/2''
-
Working Voltage:
-
DC12V
-
Install Mode:
-
Vertical Installation
-
Water Pressure:
-
0.02-0.8MPA
-
Rated Power:
-
5W
-
Applicable Medium:
-
water, oil,gas
Quick Details
-
Port Size:
-
Vertical 1/2''
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FCDJ-09
-
Brand Name:
-
SEA
-
Product name:
-
Electromagnetic Brass Valve
-
Model No.:
-
FCDJ-09
-
Pipe Diameter:
-
1/2''
-
Working Voltage:
-
DC12V
-
Install Mode:
-
Vertical Installation
-
Water Pressure:
-
0.02-0.8MPA
-
Rated Power:
-
5W
-
Applicable Medium:
-
water, oil,gas

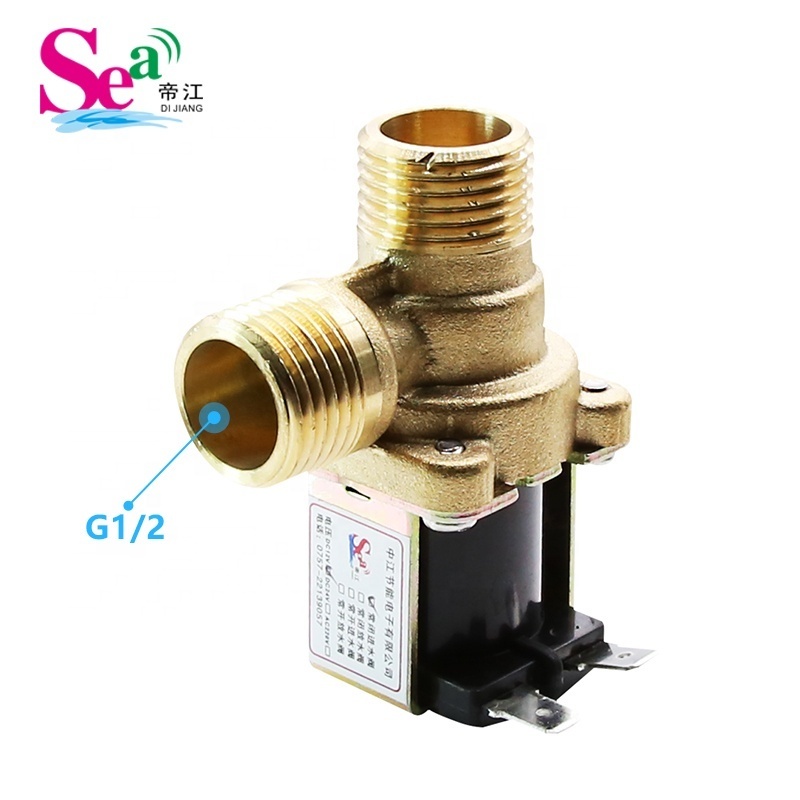

SEA NORMALLY CLOSED INLET WASHING MACHINE VALVE DC12V WATER BRASS VALVE FCDJ-09
Application : Water control switch valve
Main Technical Parameter
∗ The operating environment is not more than 2500 meters above sea leve l ;
∗ Medium Temperature: 0~100 ℃ : Degree Celsius (Nitrite Rubber O ℃ ~+60 ℃ ; Silicone Rubber O ℃ ~+100 ℃ )
∗ Environment temperature: +1 ℃ ~+45 ℃ ; Water temperature: 0 ℃ ~ +60 ℃ ; leve Storage and transportation temperature: -30 ℃ ~ +60 ℃
∗ Applicable Medium: Water , Gas , Oil
∗ Protection level IP00; Relative humidity is < 95%
Operating Parameter
A. Rated Operating Voltage
Direct Current: DC6V,DC9V,DC12V,DC24V ;
Alternating current : AC6V,AC9V,AC12V,AC24V,AC36V,AC110V,AC220V…;
Power Level :4W, 5W ,6W,7W,8W…;
B. Operating Current
C. O perating Pressure: 0.02-0.8MPa = 0.2-8KG; Withstand static pressure no less than 2.0MPa.
|
No. |
Rated Voltage(v) |
Rated Current(A) |
DC Resistance(20℃)(Ω) |
No. |
Rated Voltage(v) |
Rated Current(A) |
DC Resistance(20℃)(Ω) |
|
Rated Power(w) |
Rated Power(w) |
||||||
|
1 |
DC12V 5W |
0.42A |
27.7 + 0.6 |
2 |
AC12V 5W |
0.43A |
15.5 + 0.5 |
|
3 |
DC24V 4.5W |
0.19A |
119 + 2.4 |
4 |
AC220V 4.5W |
0.02A |
4.6 + 0.2 |
D. Flow Range / Characteristic
0.02Mpa>2L/min;
0.10Mpa>10L/min;
0.30Mpa>16L/min;
0.80Mpa>28L/min
E. Operating Mode: Normally closed inlet valve
This solenoid valve is suitable for water appliance such as pure water machine, water purifier, water dispenser, straight water dispenser etc.
Product Package
1 x Solenoid Valve
Subdivision of Solenoid valve
1. Normally Open: Close the valve when it is energized.
2. Nor mally Close: Open the valve when it is energized.
3. Inlet Valve: Used in an environment with water pressure of 0.02-0.8MPa.
4. Drain Valve: Used in an environment without water pressure, and It refers to the water column working pressure < 400mm.
5. Installation: Parallel (180) ; Angle (90)
6. Interface connection: G1/4’’ / G1/2’’ / G3/4’’ (Thread) ; 6mm / 8mm / 10mm / 12mm (tube fast connect)
7. Voltage: DC3V, DC6V, DC12V, DC24V, AC220V
We have variety models of solenoid valve , please feel free to contact with the sales if there any interests.
Different prices due to different pipe diameter & voltage, please feel free to contact with the sales before you placing the order.
Product Information
Data of #1 #2 #3 #4 brass water heater valve :
1. All the above valve models are with G1/2 pipe diameter.
2. #1 #2 #3 models are with CHECK function.
3. #1 #2 #3 are with filters ; #1 and #3 with removable filters, easy clean.
4. Life time : 200,000 times.
