Quick Details
-
Brand Name:
-
HONGXING
-
Dimension(L*W*H):
-
900*670*860
-
Weight:
-
0.8 KG
-
Warranty:
-
12 months
-
Product name:
-

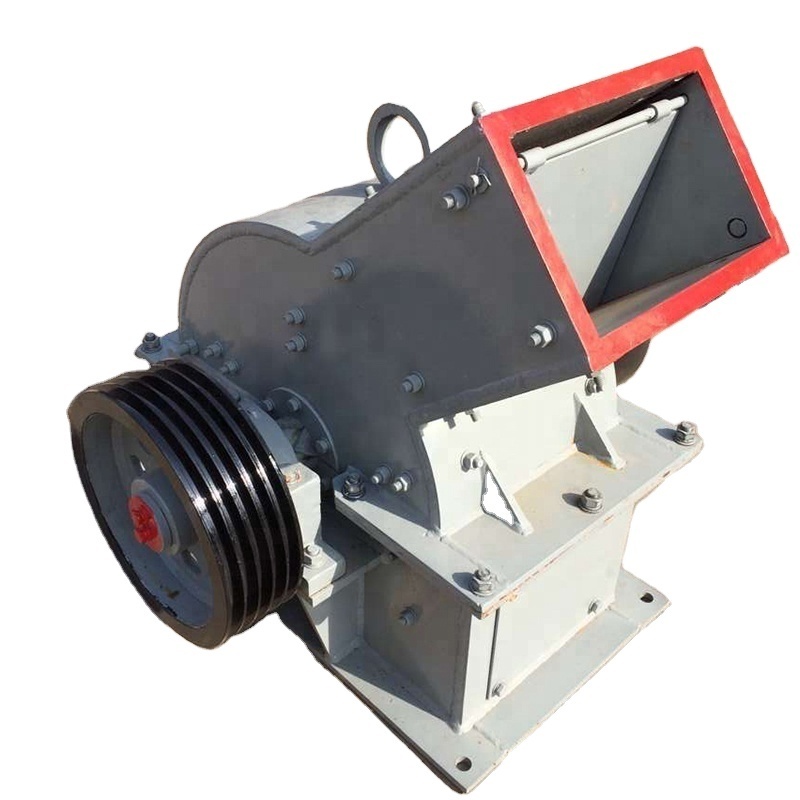

Mineral equipment hammer mill crusher with hammers
-
Keyword:
-
hammer crusher
-
Spare parts supply:
-
Anytime
-
Quality:
-
High Leavel
-
Processed Materials:
-
hard and soft stone
-
Max feeding size:
-
200mm
-
Output size:
-
0-25mm
-
Usage:
-
Widely-used Mining Equipment
-
Price:
-
Reasonable
-
Factory Visit:
-
Welcomed Warmly
Quick Details
-
Application:
-
glass, stone, sand
-
Capacity(t/h):
-
8-15
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGXING
-
Dimension(L*W*H):
-
900*670*860
-
Weight:
-
0.8 KG
-
Warranty:
-
12 months
-
Product name:
-
Mineral equipment hammer mill crusher with hammers
-
Keyword:
-
hammer crusher
-
Spare parts supply:
-
Anytime
-
Quality:
-
High Leavel
-
Processed Materials:
-
hard and soft stone
-
Max feeding size:
-
200mm
-
Output size:
-
0-25mm
-
Usage:
-
Widely-used Mining Equipment
-
Price:
-
Reasonable
-
Factory Visit:
-
Welcomed Warmly
Hammer crusher introduction
Hammer mill (hammer crusher )is one type of the crushing machines and is also a machine with relatively advanced technology among the hammer crusher series in the present mining machinery industry. It uses advanced production technology and can realize one-time crushing, and it has the features of high efficiency, energy conservancy and environment protection.
|
Model
|
Max. Feeding Size(mm)
|
Discharge Size (mm)
|
Power (kw)
|
Capcity (t/h)
|
Weight (t)
|
|
PC400*300
|
200
|
0-25
|
11
|
5-10
|
0.8
|
|
PC600*400
|
250
|
0-30
|
22
|
10-22
|
2.26
|
|
PC800*600
|
250
|
0-35
|
55
|
18-40
|
4.8
|
|
PC1000*800
|
350
|
0-35
|
75
|
25-50
|
5.9
|
|
PC1000*1000
|
350
|
0-35
|
90
|
30-55
|
8
|
Hammer crusher working principle
The electromotor drives the rotor to rotate with high speed in the crushing chamber. The materials are fed into the machine from the upper feeding mouth and are crushed under the hitting, impacting, cutting and grinding of the hammer which is moving with high speed. On the bottom of the rotor, there is sieve plate and the crushed materials that is smaller than the screen size are discharged from the sieve plate, and the coarse particles bigger than the screen size are retained on the sieve plate to be hit and ground again by the hammer and finally be discharged from the machine from the sieve plate.
Hammer crusher in India
Model: PC600*400
Material: Limestone
Capacity: 50t/h
Input size: 300mm
Output size: 20mm
Hammer crusher with motor, steel structures, V-belts, bolts etc.
|
Packaging
|
|
|
|
Size
|
1600*1390*1575mm
|
|
|
Weight
|
7t
|
|
|
Packaging Details
|
1.The motor will be packed in wooden case. Machine is nude
2.If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Size
|
900*670*860mm
|
|
|
Weight
|
0.8t
|
|
|
Packaging Details
|
1.The motor and machine will be packed in wooden case.
2.If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
3. It will be separated to put into one container.
|
|
