Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunricher
-
Input Voltage:
-
12-24VDC
-
Output Current:
-
5x8A
-
Output Power:
-
5x(96-192)W
-
Version:
-
Constant voltage
-
Certificates:
-
U L TUV CE
-
DMX standard:
-
DMX512-A RDM
-
Address display:
-
Yes
-
DMX address:
-
1~5 ch adjustable
-
Feature:
-
RDM 16bit 8 bit 30K DMX decoder
-
Voltage:
-
12-36V
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
DMX decoder
-
Max. Load Power:
-
1440W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunricher
-
Input Voltage:
-
12-24VDC
-
Output Current:
-
5x8A
-
Output Power:
-
5x(96-192)W
-
Version:
-
Constant voltage
-
Certificates:
-
U L TUV CE
-
DMX standard:
-
DMX512-A RDM
-
Address display:
-
Yes
-
DMX address:
-
1~5 ch adjustable
-
Feature:
-
RDM 16bit 8 bit 30K DMX decoder
-
Voltage:
-
12-36V

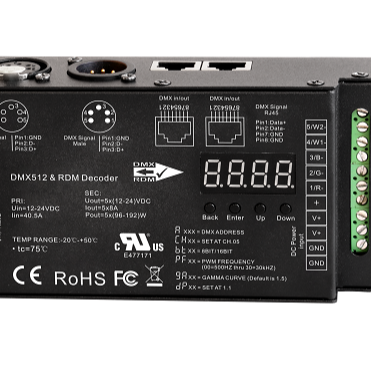

U L Approved DMX Master Controller 16 bit 30K high frequency
U L Approved DMX Master Controller 16 bit 30K high frequency
-
Master & decoder mode
• RDM function
• Metal housing, digital display to show data directly, easily to set and show DMX address.
• With multiple kinds of DMX in/out ports: RJ 45, XLR , normal screws.
• Total 5 PWM output channels, common anode. DMX channel quantity from 1CH~5CH settable
• PWM output resolution ratio 8bit , 16bit settable.
• Output PWM frequency from 500HZ ~ 30K HZ settable.
• Output dimming curve gamma value from 0.1 ~ 9.9 settable.
• Decoding mode settable.
• Galvanic isolation
Parameter
U L Approved DMX Master Controller 16 bit 30K high frequency
Instruction
U L Approved DMX Master Controller 16 bit 30K high frequency
