Quick Details
-
Dimension(L*W*H):
-
Different size
-
Weight:
-
262-485 kgs
-
Features:
-
Strong
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
color:
-
as your required
Quick Details
-
Application:
-
Dig
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KFT
-
Dimension(L*W*H):
-
Different size
-
Weight:
-
262-485 kgs
-
Features:
-
Strong
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
color:
-
as your required
1, All heavy duty the console and operator's platform conversion between field/street optional duty buckets feature wear bars and are designed with comfort and operation.
2. Heavy duty teeth for extended life.

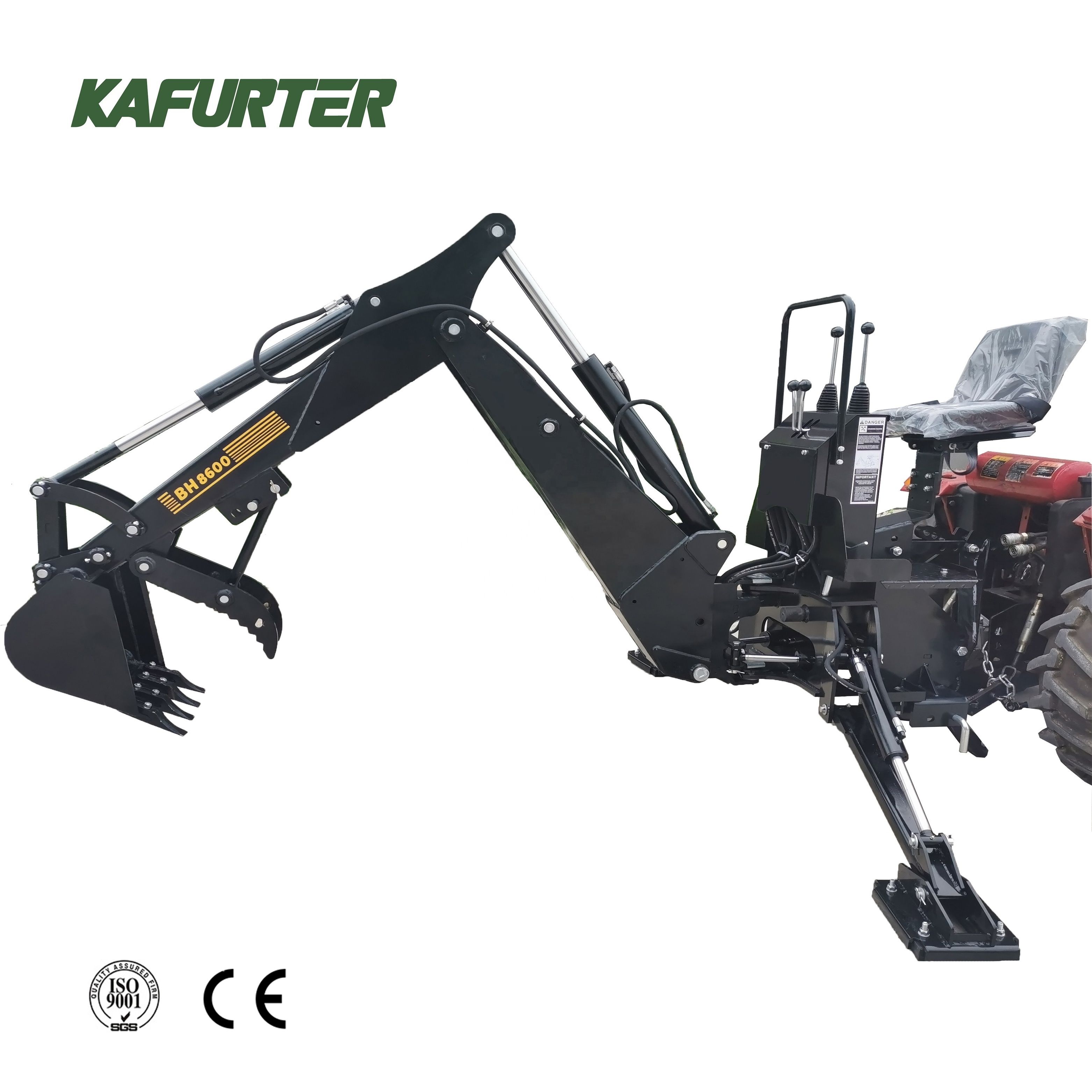

3. BH6 BACKHOE for 18 to 35 HP Tractors
4. Ideal for nurseries and small farms. The BH6 Backhoe excels at a variety of light duty digging application.
5. The BH6 Backhoe fits 18-35 HP tractors and attaches either with a 3 point Hitch mount or Subframe to Popular tractor manufactured front end loaders.
6. BH7 BACKHOE for 25 to 45 HP Tractors
7. Outstanding valve with substantially more power characterizes the BH7 Backhoe.
8. Rugged appearance and greatly improved operator comfort and convenience set this new backhoe apart from the competition.
9. 3 Point fits most tractors with a Category 1 Hitch.
10.Color's are Black or Red, paint is powder coated.
|
Model |
BH5600 |
BH6600 |
BH7600 |
BH8600 |
|
Maximum Digging Depth |
1830mm |
2133mm |
2438mm |
2745mm |
|
Digging Depth (two foot flat bottom) |
1676mm |
1980mm |
2286mm |
2590mm |
|
Swing Arc |
180 ° |
180 ° |
180 ° |
180 |
|
Loading Height (bucket at 60 ° ) |
1270mm |
1524mm |
1778mm |
2032mm |
|
Reach from Center Line of Swing Pivot |
2286mm |
2590mm |
2895mm |
3200mm |
|
Transport Height (maximum) |
1245mm |
1498mm |
1752mm |
2032mm |
|
Bucket Rotation |
180 |
180 ° |
180 ° |
180 |
|
Loading Reach (bucket at 60 ° ) |
865mm |
965mm |
1092mm |
1220mm |
|
Transport Overhang |
1016mm |
1042mm |
1066mm |
1092mm |
|
Undercut |
660mm |
712mm |
762mm |
812mm |
|
Stabilizer Spread, down position |
1700mm |
1980mm |
2260mm |
2565mm |
|
Stabilizer Spread, up position |
1066mm |
1194mm |
1550mm |
1828mm |
|
Bucket Cylinder Digging Force |
930kgs |
1112kgs |
1288kgs |
1360kgs |
|
Dipper stick Cylinder Digging Force |
476kgs |
566kgs |
910kgs |
1135kgs |
|
Shipping Weight (less bucket) |
252kgs |
296kgs |
356kgs |
498kgs |
|
Hydraulic Volume 3'4" Requirements |
3 to 4 GPM |
3 to 4 GPM |
4 to 5 GPM |
5 to 6 GPM |
|
Hydraulic Pressure Requirements |
2000psi |
2000 psi |
2000 psi |
2000 psi |
|
Recommended Tractor HP |
18-25HP |
20 - 35 HP |
25 - 45 HP |
35 - 65 HP |
