Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HIK
-
Model Number:
-
DS-2CD2087G2-L(U)
-
Image Sensor:
-
1/1.2" Progressive Scan CMOS
-
Max. Resolution:
-
3840 * 2160
-
Shutter Time:
-
1/3 s to 1/100, 000 s
-
Angle Adjustment:
-
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
-
Lens Type:
-
Fixed focal lens, 2.8, 4, and 6 mm optional
-
Iris Type:
-
Fixed
-
Aperture:
-
F1.0
-
Supplement Light Type:
-
White light
-
Supplement Light Range:
-
40m
-
Smart Supplement Light:
-
Yes
Quick Details
-
Special Features:
-
Human Motion Tracking, NIGHT VISION, Motion Detection, Temperature Measurement, Two-way Audio
-
Function:
-
Alarm I/O, RESET, Built-in Mic, NIGHT VISION, Waterproof / Weatherproof, Wide Angle, Thermal image
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HIK
-
Model Number:
-
DS-2CD2087G2-L(U)
-
Image Sensor:
-
1/1.2" Progressive Scan CMOS
-
Max. Resolution:
-
3840 * 2160
-
Shutter Time:
-
1/3 s to 1/100, 000 s
-
Angle Adjustment:
-
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
-
Lens Type:
-
Fixed focal lens, 2.8, 4, and 6 mm optional
-
Iris Type:
-
Fixed
-
Aperture:
-
F1.0
-
Supplement Light Type:
-
White light
-
Supplement Light Range:
-
40m
-
Smart Supplement Light:
-
Yes
Products Description
Ships within 24 Hours! Compatible with Hkvision Global version Upgradeable

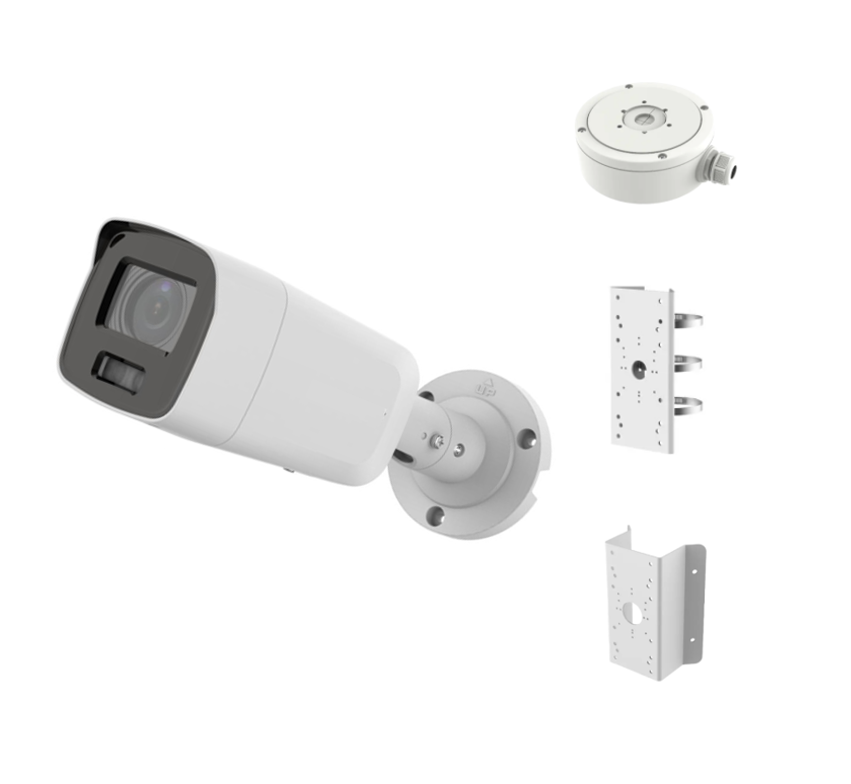

4 K ColorVu Fixed Bullet Network Camera
DS-2CD2087G2-L(U)
* High quality imaging with 8 MP resolution
* Efficient H.265+ compression technology
* Clear imaging against strong back light due to 130 dB WDR technology
* Focus on human and vehicle classification based on deep learning
* 24/7 colorful imaging
* Built-in microphone for real-time audio security (-U)
* Efficient H.265+ compression technology
* Clear imaging against strong back light due to 130 dB WDR technology
* Focus on human and vehicle classification based on deep learning
* 24/7 colorful imaging
* Built-in microphone for real-time audio security (-U)
|
Camera
|
|
|
|
Image Sensor
|
1/1.2" Progressive Scan CMOS
|
|
|
Max. Resolution
|
3840 × 2160
|
|
|
Min. Illumination
|
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
|
|
|
Shutter Speed
|
1/3 s to 1/100, 000 s
|
|
|
Angle Adjustment
|
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
|
|
|
Lens
|
|
|
|
Lens Type
|
Fixed focal lens, 2.8, 4, and 6 mm optional
|
|
|
Focal Length & FOV
|
2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°
4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104° 6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62° |
|
|
Iris Type
|
Fixed
|
|
|
Aperture
|
F1.0
|
|
|
Depth Of Field
|
2.8 mm: 4.5 m to ∞
4 mm: 7 m to ∞ 6 mm: 13 m to ∞ |
|
|
DORI
|
|
|
|
DORI
|
2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m
4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m 6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m |
|
|
Illuminator
|
|
|
|
Supplement Light Type
|
White light
|
|
|
Supplement Light Range
|
40m
|
|
|
Smart Supplement Light
|
Yes
|
|
|
Video
|
|
|
|
Main Stream
|
50 Hz:
25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
|
Sub-Stream
|
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) |
|
|
Third Stream
|
50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360) |
|
|
Video Compression
|
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|
|
Video Bit Rate
|
32 Kbps to 16 Mbps
|
|
|
H.264 Type
|
Baseline Profile/Main Profile/High Profile
|
|
|
H.265 Type
|
Main Profile
|
|
|
Bit Rate Control
|
CBR/VBR
|
|
|
Scalable Video Coding (SVC)
|
H.264 and H.265 encoding
|
|
|
Region Of Interest (ROI)
|
1 fixed region for main stream and sub-stream
|
|
|
Audio
|
|
|
|
Audio Compression
|
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
|
|
|
Audio Bit Rate
|
-U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC)
|
|
|
Audio Sampling Rate
|
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
|
|
|
Environment Noise Filtering
|
-U: Yes
|
|
|
Network
|
|
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
|
|
|
Simultaneous Live View
|
Up to 6 channels
|
|
|
API
|
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
|
|
|
User/Host
|
Up to 32 users. 3 user levels: administrator, operator and user
|
|
|
Security
|
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
|
|
|
Network Storage
|
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
|
|
|
Client
|
iVMS-4200, Hik-Connect, Hik-Central
|
|
|
Web Browser
|
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
|
|
|
|
|
|
Image Parameters Switch
|
Yes
|
|
|
Image Settings
|
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
|
|
|
Day/Night Switch
|
Day, Night, Auto, Schedule
|
|
|
Wide Dynamic Range (WDR)
|
130 dB
|
|
|
SNR
|
≥ 52 dB
|
|
|
Image Enhancement
|
BLC, HLC, 3D DNR
|
|
|
Interface
|
|
|
|
Ethernet Interface
|
1 RJ45 10 M/100 M self-adaptive Ethernet port
|
|
|
On-Board Storage
|
Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
|
|
|
Built-In Microphone
|
-U: Yes
|
|
|
Reset Key
|
Yes
|
|
|
Event
|
|
|
|
Basic Event
|
Motion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
|
|
|
Smart Event
|
Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
Scene change detection |
|
|
Linkage
|
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email
|
|
|
Deep Learning Function
|
|
|
|
Face Capture
|
Yes
|
|
|
General
|
|
|
|
Power
|
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: (802.3af, Class 3, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W |
|
|
Dimension
|
78.8 × 78.6 × 215.2 mm (3.1" × 3.1" × 8.5")
|
|
|
Package Dimension
|
315 × 137 × 141 mm (12.4" × 5.4" × 5.6")
|
|
|
Weight
|
Approx. 850 g (1.9 lb.)
|
|
|
With Package Weight
|
Approx. 1270 g (2.8 lb.)
|
|
|
Storage Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
|
Startup And Operating Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
|
Language
|
33 languages：
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|
|
General Function
|
Anti-flicker, heartbeat, password reset via e-mail, pixel counter
|
|
|
Approval
|
|
|
|
EMC
|
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) |
|
|
Safety
|
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11) CE-LVD (EN 62368-1:2014/A11:2017) |
|
|
Environment
|
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
|
Protection
|
IP67 (IEC 60529-2013)
|
|
Available Models
DS-2CD2087G2-LU(4mm)(C)
DS-2CD2087G2-LU(6mm)(C) )
Typical Application
HIK products are classified into three levels according to their anti-corrosion performance.
Refer to the following description to choose for your using environment.
Refer to the following description to choose for your using environment.
This model has NO SPECIFIC PROTECTION.
|
Level
|
Description
|
|
Top-level protection
|
HIK products at this level are equipped for use in areas where
professional anti-corrosion protection is a must. Typical application
scenarios include coastlines, docks, chemical plants, and more.
|
|
Moderate protection
|
HIK products at this level are equipped for use in areas with moderate
anti-corrosion demands. Typical application scenarios include coastal areas
about 2 kilometers (1.24 miles) away from coastlines, as well as areas
affected by acid rain.
|
|
No specific protection
|
HIK products at this level are equipped for use in areas where no
specific anti-corrosion protection is needed.
|
