2. Single-station or double-station big suction cover welding station;
3. Multi-station grinding;
4. Flame cutting, laser cutting and plasma cutting.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
designed
-
Weight:
-
600 kg
-
Product name:
-
Bag dust collector
-
After-sales Service Provided:
-
Video Technical Support, Online support
-
Power:
-
3.0-7.5kw
-
Voltage:
-
380v/50hz
-
AIr Volume:
-
2000-7000 M3/h
-
Color:
-
blue/white
-
Filter clean type:
-
auto Cleaning
-
Certification:
-
CE/ISO9001/14001/18001
Quick Details
-
Minimum Particle Size:
-
0.3um
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Loobo
-
Dimension(L*W*H):
-
designed
-
Weight:
-
600 kg
-
Product name:
-
Bag dust collector
-
After-sales Service Provided:
-
Video Technical Support, Online support
-
Power:
-
3.0-7.5kw
-
Voltage:
-
380v/50hz
-
AIr Volume:
-
2000-7000 M3/h
-
Color:
-
blue/white
-
Filter clean type:
-
auto Cleaning
-
Certification:
-
CE/ISO9001/14001/18001
Product Description

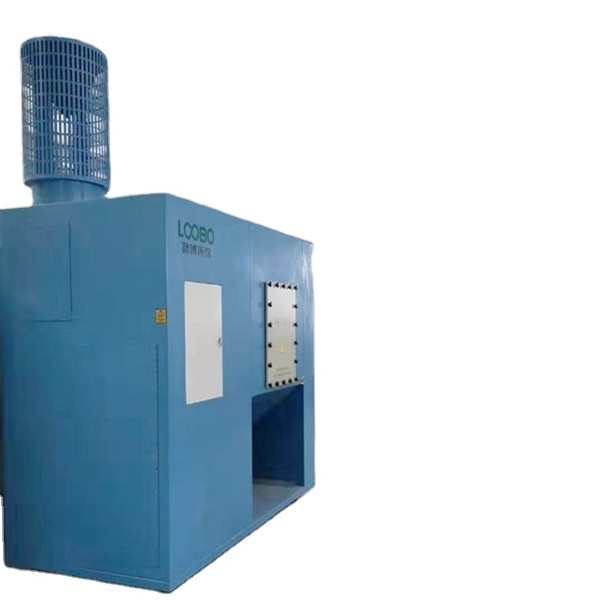

LB-DY Bag-type Filter with Fan All-in-one Dust Collector
Basic Structure: Bag filter, Centrifugal Fan, Motor, Electric circuit System, Cleaing system Round Bag with built-in frame, qty from 16 to 63 pcs, Centrifugal Fan with large airflow and pressure, and low noise
Body Size: upon model, from 830*2200*1100mm to 2170*2378*1730mm Cleaning way: auto pulse jet back flushing
Airflow: 960-5000m3/h,Power: fan and motor , 3kw-11kw;Magnetic valve qty: 4-8pcs
Operation principle: The dusted air is sucked into the body under the help of the fan and motor the large particles are separated under the gravity and the other small particles go into the bag and is detained by the bag.
Applications: Casting/glass/ceramics/concrete/wood/chemiacal/machining field
Basic Structure: Bag filter, Centrifugal Fan, Motor, Electric circuit System, Cleaing system Round Bag with built-in frame, qty from 16 to 63 pcs, Centrifugal Fan with large airflow and pressure, and low noise
Body Size: upon model, from 830*2200*1100mm to 2170*2378*1730mm Cleaning way: auto pulse jet back flushing
Airflow: 960-5000m3/h,Power: fan and motor , 3kw-11kw;Magnetic valve qty: 4-8pcs
Operation principle: The dusted air is sucked into the body under the help of the fan and motor the large particles are separated under the gravity and the other small particles go into the bag and is detained by the bag.
Applications: Casting/glass/ceramics/concrete/wood/chemiacal/machining field
|
Type
|
Airflow(m³/h)
|
Power(KW)
|
Bag numbers(piece)
|
Size(mm)
|
|
LB-DY-30
|
2000-3000
|
3.0
|
30
|
1810*2378*1367
|
|
LB-DY-40
|
3000-4000
|
5.5
|
40
|
1990*2378*1370
|
|
LB-DY-56
|
5000-6000
|
7.5
|
56
|
2170*2378*1730
|
Description:
LB-PC cartridge filter dust collector
It is widely used for purification of smoke and dusts produced by soldering carbon steel, stainless steel, aluminum in arc welding, carbon dioxide arc welding, MAG welding, special welding, gas welding in machinery, casting, metallurgy, build materials, chemical, automobile, shipbuilding and so on.
Structural composition:
Mainly consist of: fire proof high efficiency filter cartridge, fan, imported motor, electronic control system and so on.
Work :
It adopts separated cabinet design with large air flow dust collector, fan motor is too huge to be designed with dust collector. Separate fan motor sound proof box and silencer lower the noise most. It consists of filtering cabinet, control cabinet and pulse back blowing device. There is high accuracy fire proof filter cartridge unit applied to purification of smoke and dust produced by multi-station welding. Smoke and dusts are captured to filter device via air hose in the effect of high negative pressure of high efficiency specialized environment protection radial fan, the clean air is fed back outside or went indoor after pre-filter
separation and fully filtering.
Structural composition:
Mainly consist of: fire proof high efficiency filter cartridge, fan, imported motor, electronic control system and so on.
Work :
It adopts separated cabinet design with large air flow dust collector, fan motor is too huge to be designed with dust collector. Separate fan motor sound proof box and silencer lower the noise most. It consists of filtering cabinet, control cabinet and pulse back blowing device. There is high accuracy fire proof filter cartridge unit applied to purification of smoke and dust produced by multi-station welding. Smoke and dusts are captured to filter device via air hose in the effect of high negative pressure of high efficiency specialized environment protection radial fan, the clean air is fed back outside or went indoor after pre-filter
separation and fully filtering.
Specifications:
|
Type
|
Airflow (m³/h)
|
Filter numbers
|
Size(mm)
|
Inlet/Outlet(mm）
|
|
LB-PC-12
|
12000-15000
|
12
|
1960*2770*1362
|
φ550
|
|
LB-PC-16
|
16000-20000
|
16
|
1960*2770*1960
|
φ650
|
|
LB-PC-20
|
21000-25000
|
20
|
1960*2770*1960
|
φ700
|
|
LB-PC-24
|
24000-30000
|
24
|
3920*2770*1362
|
φ750
|
|
LB-PC-32
|
32000-40000
|
32
|
3920*2770*1960
|
φ850
|
|
LB-PC-40
|
41000-48000
|
40
|
3920*2770*1960
|
φ900
|
|
LB-PC-48
|
50000-57000
|
48
|
5880*2770*1960
|
φ1000
|
|
LB-PC-60
|
60000-70000
|
60
|
5880*2770*1960
|
φ1200
|
Cases:
Other products:
LB-XCY all in one dust collector
LB-XCY all in one dust collector
1. Multi-station welding station;
2. Single-station or double-station big suction cover welding station;
3. Multi-station grinding;
4. Flame cutting, laser cutting and plasma cutting.
2. Single-station or double-station big suction cover welding station;
3. Multi-station grinding;
4. Flame cutting, laser cutting and plasma cutting.
LB-XCY ALL in ONE DUST COLLECTOR for Robot Welding Station
Robot welding station fume collection by dust collector and pipe system.
The airflow of dust collector caculate by the size of welding station and numbers of robots
The pipe material has PP, PVC, galvanized tube ,stainless steel and so on.
Cases:
LB-CY dust collector
The all in one dust collector main has two colors,one is white, another is blue. Besides, we also can make the colour based on your need;
The all in one dust collector not only can stay in factory, but also can be installed out factory.
Dust collector with fume extraction arm
The LB-XCY dust collector can contact with pipe and fume arm system to collect fume, then clean the air and discharge the cleaned air to the factory
Dust collector use for the cutting machine
The LB-XCY dust collectr can use for the cutting machine, which can move together with the cutting machine
Specification
|
Type
|
Airflow (m³/h)
|
Power (KW)
|
Size(mm)
|
Filter Nos(piece)
|
Filter size(mm)
|
Inset/Out set size(mm)
|
|
LB-XCY-4
|
3000-4500
|
3.0
|
1500*1050*1950
|
4
|
Φ325*660
|
φ250
|
|
LB-XCY-6
|
4000-6500
|
5.5
|
1800*1050*1950
|
6
|
Φ325*660
|
φ300
|
|
LB-XCY-8
|
6000-8500
|
7.5
|
2210*1050*2000
|
8
|
Φ325*660
|
φ350
|
|
LB-XCY-12
|
8000-11000
|
11
|
2550*1400*2200
|
12
|
Φ325*660
|
φ400
|
|
LB-XCY-15
|
10000-13000
|
15
|
2930*1400*2200
|
15
|
Φ325*660
|
φ450
|
|
LB-XCY-15S
|
13000-16000
|
18.5
|
2930*1400*2540
|
15
|
Φ325*1000
|
φ500
|
|
LB-XCY-20S
|
18000-21000
|
22
|
2930*1800*2540
|
20
|
Φ325*1000
|
φ550
|
Warranty
Packing & Delivery
Wooden packgaing
Delivery by sea or air based on customers' request
