Quick Details
-
Spindle Taper:
-
MT4
-
Range of Spindle Speed(r.p.m):
-
168 - 3160 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HTMC
-
Model Number:
-
ZXTM40
-
Table Travel (mm):
-
400x250
-
Year:
-
2023
-
Spindle Motor Power(kW):
-
1.5
-
Voltage:
-
380V 50HZ 3PH or negotiable
-
Dimension(L*W*H):
-
1100x1050x1330
-
Weight (KG):
-
460
Quick Details
-
Table Travel (X) (mm):
-
400
-
Table Travel (Y) (mm):
-
250
-
Table Travel (Z) (mm):
-
430
-
Spindle Taper:
-
MT4
-
Range of Spindle Speed(r.p.m):
-
168 - 3160 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HTMC
-
Model Number:
-
ZXTM40
-
Table Travel (mm):
-
400x250
-
Year:
-
2023
-
Spindle Motor Power(kW):
-
1.5
-
Voltage:
-
380V 50HZ 3PH or negotiable
-
Dimension(L*W*H):
-
1100x1050x1330
-
Weight (KG):
-
460
Products Description

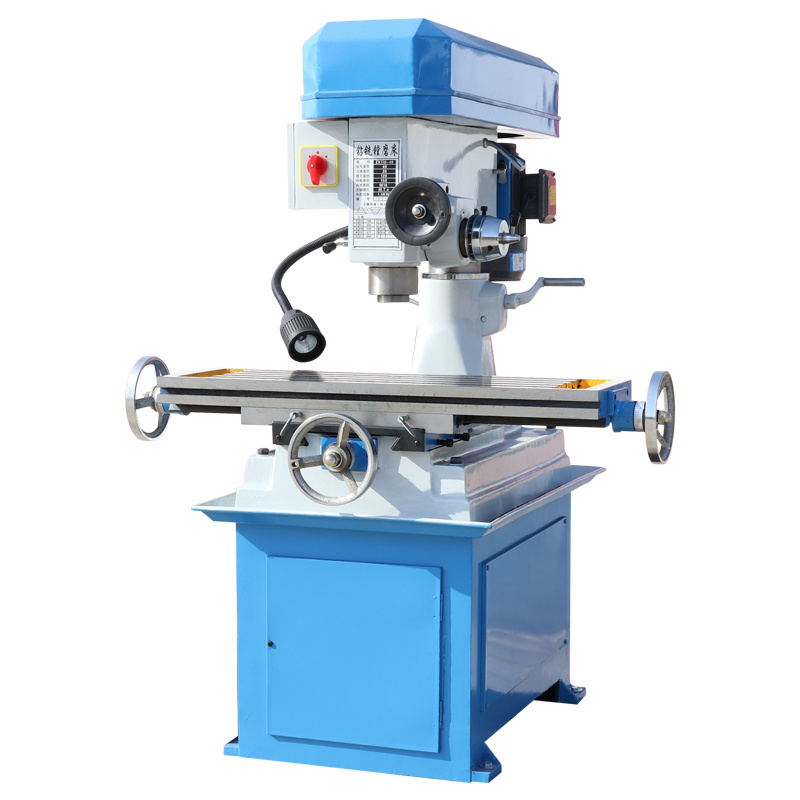

The
ZXTM40
multifunctional drilling and milling machine tool has a spindle box that can rotate 90 or 45 degrees in a vertical plane, and the workbench can move vertically and horizontally (above 7550). It has the advantages of high accuracy, multiple functions, wide use, strong rigidity, good stability, and easy operation.
|
SPECIFICATION
|
UNIT
|
ZXTM40C
|
|
Drilling capacity
|
mm
|
40
|
|
End milling capacity
|
mm
|
100
|
|
Vertical milling capacity
|
mm
|
20
|
|
Boring capacity
|
mm
|
120
|
|
Tapping capacity
|
mm
|
M16
|
|
Distance between spindle nose and worktable
|
mm
|
120-550
|
|
Range of spindle speed
|
r.p.m
|
168-3160
|
|
Spindle travel
|
mm
|
120
|
|
Table size
|
mm
|
800 x 240
|
|
Table travel
|
mm
|
400 x 250
|
|
Overall dimensions
|
mm
|
1100 x 1050 x 1330
|
|
Motor power
|
kw
|
1.5
|
|
N.W/G.W
|
kg
|
410/460
|
Widely used in the instrument industry of multi piece batch production, mechanical manufacturing, building decoration, and repair departments, with low investment and high efficiency, it is an ideal cutting and processing equipment.
Characteristics of drilling and milling machine ZXTM40:
1. This machine tool has a novel structure, beautiful appearance, simple operation, and a wide processing range
2. The adjustment of the spindle box is reliable in moving up and down, and with the accuracy and rigidity of the entire machine.
3. Easy to wear components have adjustment components that eliminate gaps, which can maintain the accuracy and balance of the entire machine for a long time.
4. The spindle feed oil micro motion mechanism (type 40 or above) is equipped with high-precision bearings installed on the spindle inside the box.
5. This series of drilling and milling machines can meet the needs of domestic and foreign users by providing on-demand power supply voltage, frequency, spindle taper hole, and scale value.
