Quick Details
-
Cutting Thickness:
-
0-100mm
-
Control Software:
-
Cypcut/xc3000s/weihong
-
Place of Origin:
-
China
-
Brand Name:
-
Hongniu
-
Weight (KG):
-
2800 KG
-
Warranty of core components:
-
24 months
-
Laser source:
-
Raycus /IPG /MAX
-
Laser head:
-
Raytools/Boci/WSX/Precitec
-
Water chiller:
-
Hanli/S&A
-
Laser power:
-
1000W /1500W/ 2000W / 3000W/6000W
-
Rails:
-
Hiwin/PEK
-
Gears:
-
YYC/ Letterson
-
Control system:
-
FSCUT Cutting System
-
Color:
-
Black and white
-
Servo motor:
-
Fuji/YASKAWA/Delta
-
Working area:
-
1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
132mm/min
-
Cooling Mode:
-
WATER COOLING
-
Cutting Thickness:
-
0-100mm
-
Control Software:
-
Cypcut/xc3000s/weihong
-
Place of Origin:
-
China
-
Brand Name:
-
Hongniu
-
Weight (KG):
-
2800 KG
-
Warranty of core components:
-
24 months
-
Laser source:
-
Raycus /IPG /MAX
-
Laser head:
-
Raytools/Boci/WSX/Precitec
-
Water chiller:
-
Hanli/S&A
-
Laser power:
-
1000W /1500W/ 2000W / 3000W/6000W
-
Rails:
-
Hiwin/PEK
-
Gears:
-
YYC/ Letterson
-
Control system:
-
FSCUT Cutting System
-
Color:
-
Black and white
-
Servo motor:
-
Fuji/YASKAWA/Delta
-
Working area:
-
1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm

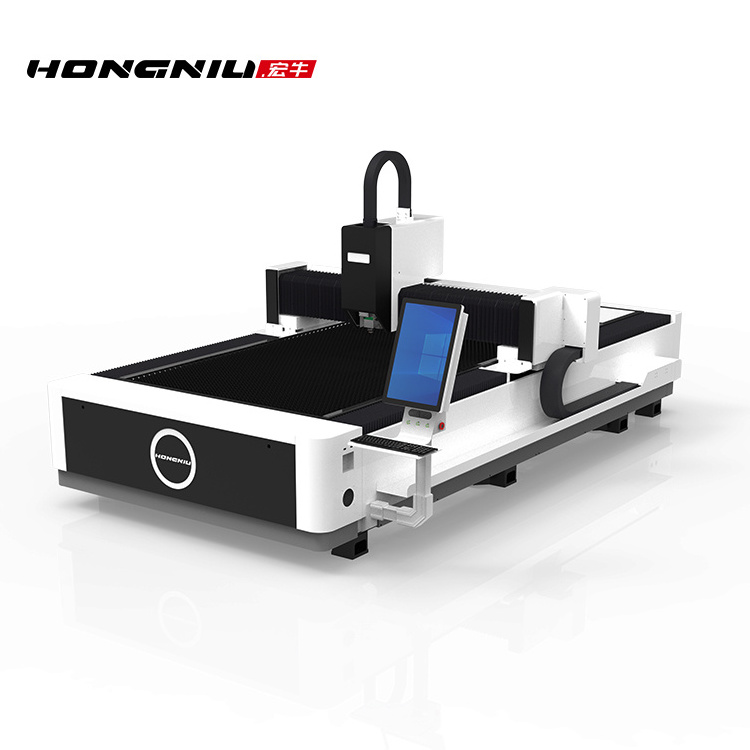

2024 HOT-SELLING cnc fiber laser cutting machine
1. 3000W RAYCUS Fiber laser cutting machine Specification
Fiber laser cutting machine is a laser cutting machine using a fiber laser generator as a source.Fiber laser is a new type of internationally developed fiber laser that outputs a high-energy density laser beam and collects on the surface of the workpiece to instantly melt and vaporize the area illuminated by the ultra-fine focus spot on the workpiece. It can realize automatic cutting by irradiating position, fast speed and high precision.
| Model | HN3015E | Repeated positioning accuracy | ±0.03mm/1000mm |
| Working area | 3000*1500mm | Transmission System | Precition double drive&ball screw |
| Laser Type | Fiber laser generator | Lubrication system | Full-Automatic |
| Laser Power | RAYCUS | Graphic format supported | CAD.DXF(etc) |
| Cutting thickness | 0.1-100mm | Working environment | 0-40℃,Humidity:≤80% |
| Maximum Speed | 132 m/minute | Total Power | Accoring to the power |
| Maxnium Acceleration | 1.2G | Overall dimension | 4550*2280*2000mm |
| Position accuracy | ±0.02mm/1000mm | Weight | 2800KGS |
2. 1000W RAYCUS FIBER LASER CUTTING MACHINE MAIN CONFIGURATION
| 1 | Laser Generator/Source | RAYCUS | 1 SET |
| 2 | Laser cutting head | Swiss Raytools Auto Focusing |
1 SET |
| 3 | Control System | Cypcut | 1 SET |
| 4 | Driving Motor | Japan Fuji servo motor Yaskawa motor optional | 4 SETS |
| 5 | Reducer | Shimpo or Motoreducer | 3 SETS |
| 6 | Guide Rail | Taiwan HIWIN or PEK | 1 SET |
| 7 | Rack | TAIWAN YYC or Letterson | 1 SET |
| 8 | Water Chiller | S&A or HANLI | 1 SET |
| 9 | Proportional Valve | Japan SMC | 1 SET |
| 10 | Spare Part | Nozzles and Protective lens | 10 SETS |
3. 1000W RAYCUS Fiber laser cutting machine Cutting Parameters
Carbon steel 1-12mm Stainless steel 1-5mm
Brass 1-4mm Galvanized sheet 1-3mm
Aluminium Alloy 1-4mm
