Quick Details
-
Brand Name:
-
Veinasa
-
Output:
-
RS485
-
Brand:
-
Soil NPK sensor
-
Voltage - Supply:
-
DC 12-24V
-
Operating Temperature:
-
-40~85℃
-
Measuring Range:
-
0-1999mg/kg
-
Product name:
-
Soil NPK sensor
-
Signal output type:
-
RS485
-
Supply voltage:
-
DC 12-24V
-
Static power consumption:
-
10mA@12V DC
-
Measurement range:
-
0-1999mg/kg
-
Resolution:
-
1mg/kg(mg/l)
-
Accuracy:
-
±2%F.s
-
Protection level:
-
IP68
-
Sealing material:
-
Black epoxy resin
-
The overall dimension:
-
45*15*135mm
Quick Details
-
Usage:
-
Detect soil N, P, K
-
Model Number:
-
Veinasa-NPK01
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Veinasa
-
Output:
-
RS485
-
Brand:
-
Soil NPK sensor
-
Voltage - Supply:
-
DC 12-24V
-
Operating Temperature:
-
-40~85℃
-
Measuring Range:
-
0-1999mg/kg
-
Product name:
-
Soil NPK sensor
-
Signal output type:
-
RS485
-
Supply voltage:
-
DC 12-24V
-
Static power consumption:
-
10mA@12V DC
-
Measurement range:
-
0-1999mg/kg
-
Resolution:
-
1mg/kg(mg/l)
-
Accuracy:
-
±2%F.s
-
Protection level:
-
IP68
-
Sealing material:
-
Black epoxy resin
-
The overall dimension:
-
45*15*135mm

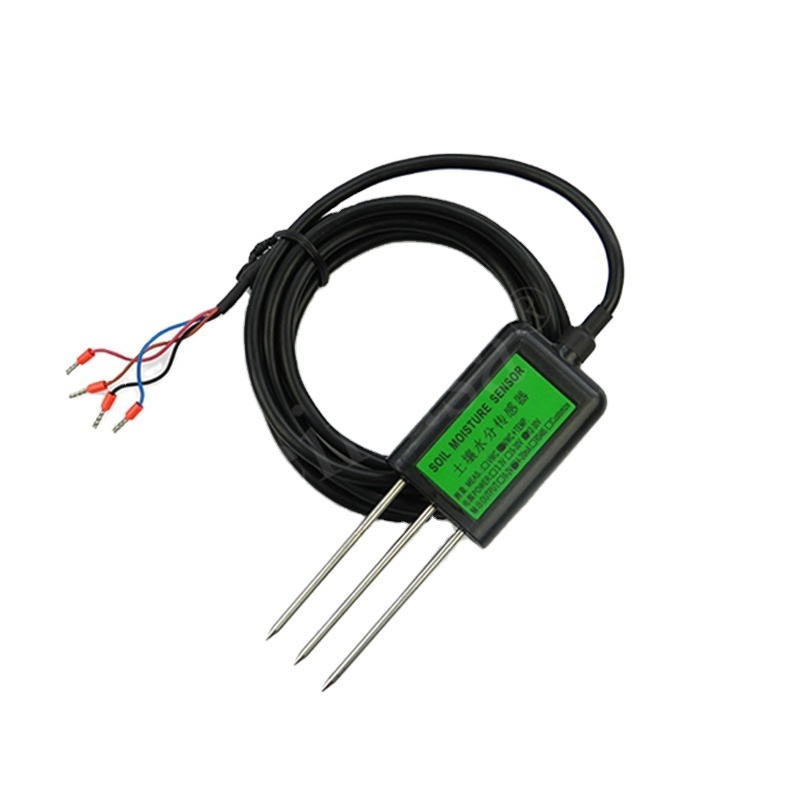

TR-TS RS485 Analog 4-20mA Voltage Testers Soil Moisture Module Humidity Sensor with Probe for Irrigation System Plant Garden
Products Description
Soil N, P and K sensor performance stability, high sensitivity, by detecting the content of N, P and K in the soil to judge the degree of soil fertility, to evaluate the soil situation.
Suitable content of NPK is an important condition for plant growth. Excessive or lack of NPK will affect crop growth.
Product Paramenters
|
Parameters of NPK |
Measurement range
|
0-1999mg/kg
|
|
|
|
Resolution
|
1mg/kg(mg/l)
|
|
|
|
Accuracy
|
±2%F.s
|
|
|
Power supply
|
DC 12-24V
|
|
|
|
Output signal
|
RS485
|
|
|
|
Static power consumption
|
10mA@12V DC
|
|
|
|
Protection level
|
IP68
|
|
|
|
The overall dimension
|
45*15*135mm
|
|
|
|
Working environment
|
-40~85℃
|
|
|
|
Sealing material
|
Black epoxy resin
|
|
|
|
Sealing material
|
Black flame retardant epoxy resin
|
|
|
Main Features
Veinasa-NPK01 has the following characteristics:
(1) It can be used to measure the content of nitrogen, phosphorus and potassium in water and fertilizer integrated solution, as well as other nutrient solutions and substrates.
(2) The electrode is made of special alloy material, which can withstand strong external force impact and is not easy to damage.
(3) Completely sealed, acid and alkali corrosion resistance, can be buried in the soil or directly into the water for long-term dynamic detection.
(4) High precision, fast response, good interchangeability, probe insertion design accurate measurement, reliable performance.
(5) Perfect protection circuit.
(1) If equipped with the weather station produced by our company, directly use the sensor line to connect the sensor to the corresponding interface on the weather station.
(2) If the sensor is purchased separately, the matching wiring sequence of the sensor is as follows:
|
Cable color
|
Description
|
|
Red
|
Power +
|
|
Black
|
GND
|
|
Yellow
|
RS485+
|
|
Blue
|
RS485-
|
Application Field
Veinasa-NPK01
is
suitable for soil moisture monitoring, scientific experiments, agricultural irrigation, greenhouse, flowers and vegetables, grassland pasture, soil rapid measurement, plant culture and other occasions.
