Quick Details
-
Max Speed(r/min):
-
5500r/min
-
Max RCF(xg):
-
4904xg
-
Rotor capacity:
-
4*750ml
-
Time setting range:
-
0~99min
-
Power supply:
-
AC220V 50Hz 2A
-
Noise level:
-
≤65dB(A)
-
Speed Accuracy:
-
±10r/min
-
Timing mode:
-
start timing, speed timing and continuous timing.
-
Short Spinning:
-
yes
Quick Details
-
Brand Name:
-
west tune
-
Model Number:
-
CLT55 CLT55R
-
Place of Origin:
-
Zhejiang, China
-
Max Speed(r/min):
-
5500r/min
-
Max RCF(xg):
-
4904xg
-
Rotor capacity:
-
4*750ml
-
Time setting range:
-
0~99min
-
Power supply:
-
AC220V 50Hz 2A
-
Noise level:
-
≤65dB(A)
-
Speed Accuracy:
-
±10r/min
-
Timing mode:
-
start timing, speed timing and continuous timing.
-
Short Spinning:
-
yes
Products Description
Applications:
CL T55R/CL T55 can be matched with a variety of test tubes/bottles and micro plate, which greatly improves the universality of the experiment. Various aerosol-tight bucket ensures centrifugal safety. The airflow guiding design maintains the centrifuge chamber temperature in low level for protection of temperature sensitive samples.The buckets and adapters can be autoclaved.
It is an ideal product for clinical medicine, molecular biology, cell culture and other industries.
Features:
TECHNICAL PARAMETER
• Equipped with 7-inch full touch screen (can be directly operated with gloves), simple interface and all parameters at a glance.
• Touch interface for super-fast parameter setting compared with the traditional push-button operation.
• RCF and Speed can be automatically switched for touch the key.
• Two time setting ranges for optional: 1 s-99min 59s and 1 min to 99h59min
• Three Timing modes for optional: start timing , speed timing and continuous timing.
• Each program can be divided into 5 steps, and different rpm and time setting for each step.
• Save up to 100 user-defined programs.
• 11 acceleration and 12 deceleration stages. And free parking time can be set.
• According to the time interval of the experiment, the sleep time of the instrument ca be set (the default value is 15 minutes), which can ensure the good refrigeration effect as well as save energy and increase the service life of the instrument.
• CLTSSR: Pre-cooling function available. pre-cooling parameters can be customized according to different rotors. And it can be scheduled in advance, so the experiment can be carried out once entering the laboratory to save time.
• CLTSSR refrigerated centrifuge adopts VF compressor with PID dynamic intelligent temperature control technology and dual channel refrigeration system, for optimized cooling performance.
• The running records and diagnostic records are saved automatically, user can effectively check the operation of the instrument and the separation of each batch of samples.
• AC frequency conversion motor is maintenance free and no carbon pollution with long service life and accurate speed accuracy (less than 10rpm).
• Max Capacity 4x750ml, which can be equipped with the aerosol-tight bucket to ensure the safety of centrifugation and no pollution.
• 0.Sml-750ml adapter available. Capable of offering superior capacity of up to 36 x 50ml conical tubes, 88x15ml conical tubes, 168x7ml vacuum blood collection tubes, which is an ideal choice for clinical examination and laboratory analysis.
TECHNICAL PARAMETER
|

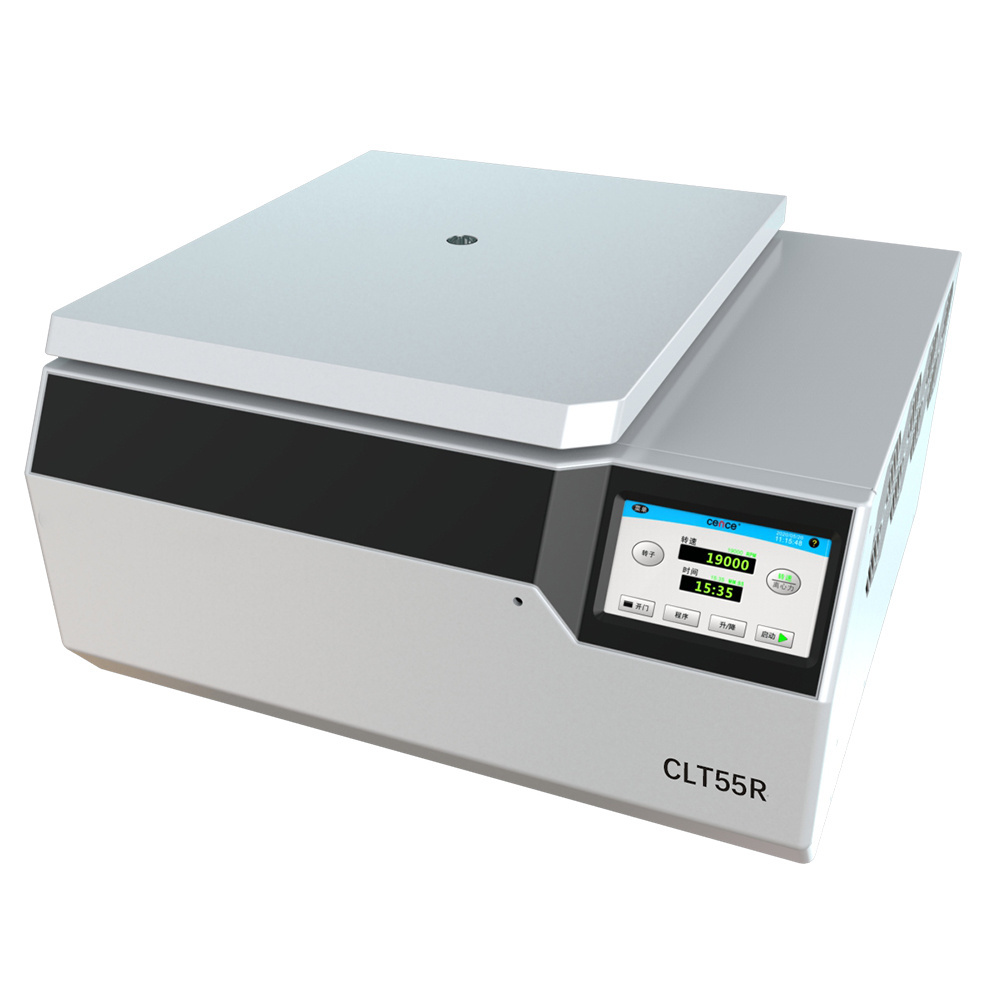

Model
|
CLT55R
|
CLT55
|
|
|
Order No.
|
0204260029
|
0205255026
|
|
|
Max. Speed
|
5500rpm
|
|
|
|
Max. RCF
|
4904xg
|
|
|
|
Max. Capacity
|
4*750ml
|
|
|
|
Speed Accuracy
|
±10rpm
|
|
|
|
Temp Setting Range
|
1s-99min59s, 1 min-99h59min
|
|
|
|
Timing mode
|
start timing, speed timing and continuous timing.
|
|
|
|
Time Setting Range
|
-20℃ to 40℃
|
/
|
|
|
Temprature Accuracy
|
±0.5°C
|
/
|
|
|
Pre-cooling function
|
YES
|
/
|
|
|
Noise
|
<65dB(A)
|
|
|
|
Compressor Unit
|
High performance compressor unit, Environment-friendly
refrigerant (134a) |
/
|
|
|
Noise
|
<=65dB (A)
|
<=65dB (A)
|
|
|
Short Spinning
|
YES
|
YES
|
|
|
Rotor Identification
|
YES
|
YES
|
|
|
Power Supply
|
AC 220±22V 50/60Hz
|
AC 220±22V 50/60Hz
|
|
|
Wattage
|
1.6Kw
|
900w
|
|
|
Dimension
|
713x681 x398(mm)
|
510x635x398(mm)
|
|
|
Packing Dimension
|
860x810x620(mm)
|
660x 770x450(mm)
|
|
|
Weight
|
95Kg
|
76Kg
|
|
