- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minster
-
Product Name:
-
Open cell LCD screen panel
-
Model Number:
-
ST3151A05-8
-
Size:
-
32 inches
-
Quality:
-
A grade Original and new
-
Panel Type:
-
a-Si TFT-LCD, CELL , FOB
-
MOQ:
-
17 pcs
-
Stock:
-
YES
-
Application:
-
TV repair or refurbishment
-
Resolution:
-
1366*768(RGB), WXGA, 49PPI
-
Display mode:
-
RGB
Quick Details
-
Type:
-
TFT
-
Display Size:
-
32 inches
-
Supplier Type:
-
distributor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minster
-
Product Name:
-
Open cell LCD screen panel
-
Model Number:
-
ST3151A05-8
-
Size:
-
32 inches
-
Quality:
-
A grade Original and new
-
Panel Type:
-
a-Si TFT-LCD, CELL , FOB
-
MOQ:
-
17 pcs
-
Stock:
-
YES
-
Application:
-
TV repair or refurbishment
-
Resolution:
-
1366*768(RGB), WXGA, 49PPI
-
Display mode:
-
RGB
Product Description

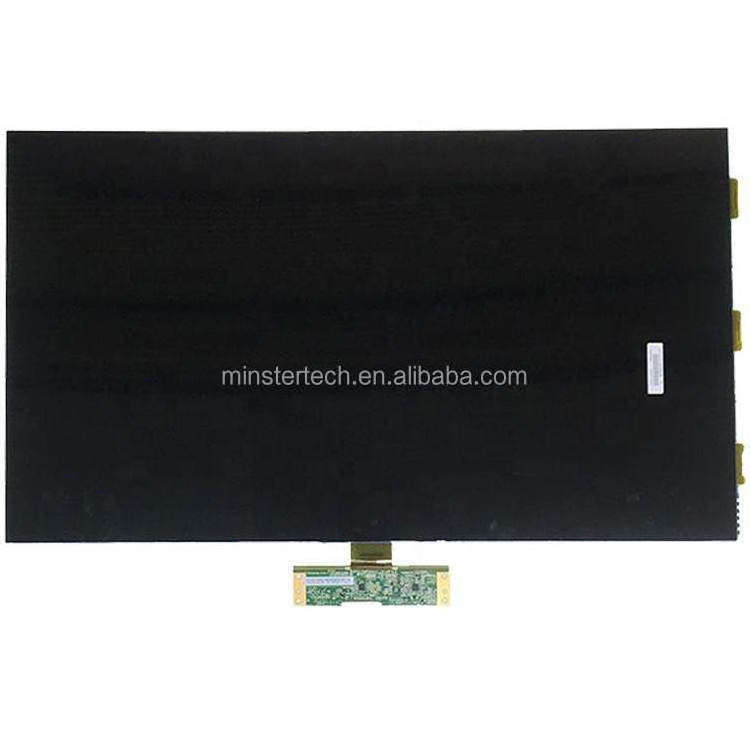

Good Quality A grade Original New 32 inches screen display lcd led open cell panel ST3151A05-8 for TV repair
We are supplying A grade Original and New Open cell Lcd screen panel for TV broken glass panel replacement. Each panel glass will be tested before delivery to ensure the panel glass quality.
We have large TV glass panel open cell stock from 32 inches to 110 inches in HD, Full HD 2K and Ultra HD UHD 4K in different brands. All glass panels are original brand, new and A grade.
Minster is a reliable and trustworthy TV glass supplier. We insist Quality always comes first. we also provide good after-sales service for all our products.
Now ST3151A05-8 is in stock. welcome to contact us.
We have large TV glass panel open cell stock from 32 inches to 110 inches in HD, Full HD 2K and Ultra HD UHD 4K in different brands. All glass panels are original brand, new and A grade.
Minster is a reliable and trustworthy TV glass supplier. We insist Quality always comes first. we also provide good after-sales service for all our products.
Now ST3151A05-8 is in stock. welcome to contact us.
Specification
|
Model Number
|
ST3151A05-8
|
|
Diagonal Size
|
32 inches
|
|
Panel Type
|
a-Si TFT-LCD, CELL , FOB
|
|
Resolution
|
1366×768(RGB), WXGA 49PPI
|
|
Pixel Format
|
RGB Horizontal Stripe
|
|
Active Area
|
697.685(W)×392.256(H) mm
|
|
Outline Dim.
|
715.035(H)×410.57(V) ×1.43(D) mm
|
|
Luminance
|
0 cd/m²
|
|
View Direction
|
Symmetry
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
|
Plate Thickness
|
0.50+0.50 mm
|
|
Support Color
|
16.7M 62% NTSC
|
|
Frame Rate
|
60Hz
|
|
D-IC Detail
|
COF Built-in 1 source + 3 gate chips
|
|
Interface Type
|
LVDS (1 ch, 8-bit) , 30 pins Connector
|
|
Power Supply
|
12.0V (Typ.)
|
|
Environment
|
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
|
Treatment
|
Antiglare (Haze 2%), Hard coating (3H)
|
|
Contrast Ratio
|
3000:1 (Typ.) (TM)
|
|
Response Time
|
6.5 (Typ.)(G to G)
|
|
Operating Mode
|
HVA, Normally Black, Transmissive
|
|
Transmittance
|
7.16% (Typ.)(with Polarizer)
|
|
Light Source
|
No Backlight
|
|
Touch Panel
|
Without
|
Product packaging
Why Choose Us
Best Buy Brand Minster
Minster Technology Co., Ltd. is an LCD repairing solution provider. We are the manufacture of different equipment for
LCD Screen panel repair/refurbishment Industry. Our main products are ACF FLEX/TAB/COF bonding machine, LCD laser repair machine,Polarizer film machines for removal and lamination, BGA rework station and these machine accessories.
In the meantime, we are a reseller/distributor of VARIOUS lcd repair parts, tools, and accessories SUCH AS polarizer films, LCD Screen Holders, IC COFs, and original new branded LCD Screen panels etc.
Based on the principle of " EXPERTISE, SERVICES AND SOLUTIONS ", we continuously improve and develop automation equipment suitable
for various industries and maintenance customers. So far, we have maintained
good cooperative relations with large and small enterprises, after-sales service shop owners and individuals all over the world.
1.Quality always come first.
2. Over 10 years LCD Repair industry experience
3. Excellent pre-sales and after-sales service.
4. Competitive prices
LCD Screen panel repair/refurbishment Industry. Our main products are ACF FLEX/TAB/COF bonding machine, LCD laser repair machine,Polarizer film machines for removal and lamination, BGA rework station and these machine accessories.
In the meantime, we are a reseller/distributor of VARIOUS lcd repair parts, tools, and accessories SUCH AS polarizer films, LCD Screen Holders, IC COFs, and original new branded LCD Screen panels etc.
Based on the principle of " EXPERTISE, SERVICES AND SOLUTIONS ", we continuously improve and develop automation equipment suitable
for various industries and maintenance customers. So far, we have maintained
good cooperative relations with large and small enterprises, after-sales service shop owners and individuals all over the world.
1.Quality always come first.
2. Over 10 years LCD Repair industry experience
3. Excellent pre-sales and after-sales service.
4. Competitive prices
Product Delivery
FAQ
Q&A about Minster Technology and LCD Screen Panel
1. Is Minster Technology a factory of lcd
screen panels?
No, we are distributor of open cell lcd screen glass panel. Open cell production needs high technology and big investment.
2. How do you ensure the quality for the lcd screen panels?
All our panels are original and new. We do not sell old panels. Good supply chain ensures the quality for our panels. Each panel will be tested before delivering. We also have good after-sales service to make sure our customers are satisfied with our screen panels.
No, we are distributor of open cell lcd screen glass panel. Open cell production needs high technology and big investment.
2. How do you ensure the quality for the lcd screen panels?
All our panels are original and new. We do not sell old panels. Good supply chain ensures the quality for our panels. Each panel will be tested before delivering. We also have good after-sales service to make sure our customers are satisfied with our screen panels.
3. How is the warranty for lcd screen panels?
We do not provide warranty for the panels. Please check and test the panels as received and report the situation to us. If panel
has any problem, we will compensate and send out with your next order.
4.Is the price on Alibaba real?
As you know, panel price and stock change even daily. Please contact us for latest prices and stock.
5.Where is your warehouse?
We have warehouse in Guangzhou and Hongkong.
6. Will the panels be broken during transportation?
It rarely happens. All panels will be put in hard high density foam boxes with foam layers and packed inside wooden boxes.
7. How is your payment method?
We are Alibaba trade assurance user. You can order on Alibaba directly and also you can choose to pay our USD bank account. West Union is also accepted.
We do not provide warranty for the panels. Please check and test the panels as received and report the situation to us. If panel
has any problem, we will compensate and send out with your next order.
4.Is the price on Alibaba real?
As you know, panel price and stock change even daily. Please contact us for latest prices and stock.
5.Where is your warehouse?
We have warehouse in Guangzhou and Hongkong.
6. Will the panels be broken during transportation?
It rarely happens. All panels will be put in hard high density foam boxes with foam layers and packed inside wooden boxes.
7. How is your payment method?
We are Alibaba trade assurance user. You can order on Alibaba directly and also you can choose to pay our USD bank account. West Union is also accepted.
