Model
|

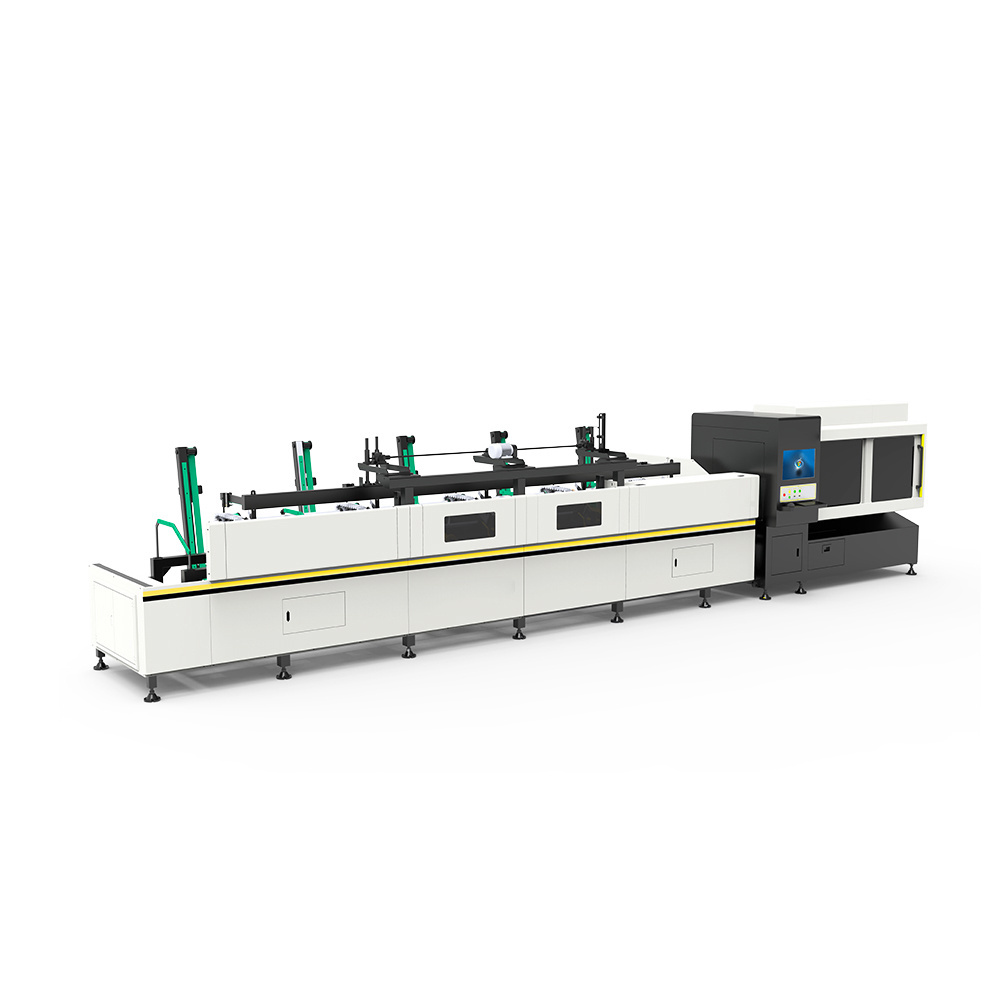

X15 High Speed 3D Automatic Laser Pipe Cutting Machine
|
|
|
|
|||
|
Pipe diameter
|
Round Pipe : φ16 mm to φ80 mm
Rectangular Pipe : 16 x 16 mm to 60 x 60 mm (diagonal < 85mm)
|
|
|
|
|||
|
Material type
|
Carbon steel, stainless steel , aluminum alloy round pipe, square pipe, rectangular pipe, oval pipe
|
|
|
|
|||
|
Cutting surplus length
|
25 KG (e.g. round pipe φ60x2x6000 mm)
|
|
|
|
|||
|
Y1 axis (feeding)
|
working stroke
|
|
800mm
|
|
|||
|
|
positioning accuracy
|
|
0.05mm
|
|
|||
|
|
positioning speed
|
|
60m/min
|
|
|||
|
|
repetition accuracy
|
|
0.05mm
|
|
|||
|
Y2 axis (drawing)
|
working stroke
|
|
1000mm
|
|
|||
|
|
positioning accuracy
|
|
0.05mm
|
|
|||
|
|
positioning speed
|
|
90m/min
|
|
|||
|
|
repetition accuracy
|
|
0.05mm
|
|
|||
|
X axis
|
working stroke
|
|
0-130mm
|
|
|||
|
|
positioning accuracy
|
|
0.05mm
|
|
|||
|
|
positioning speed
|
|
60m/min
|
|
|||
|
|
repetition accuracy
|
|
0.05mm
|
|
|||
|
Z axis
|
working stroke
|
|
0-100mm
|
|
|||
|
|
positioning speed
|
|
30m/min
|
|
|||
|
B axis
|
infinite rotation
|
|
150rpm/min
|
|
|||
|
Machine floor area
|
About 9100x2500mm
|
|
|
|
|||
