Quick Details
-
Model Number:
-
GGF-A-C-13
-
Brand Name:
-
XFDZ
-
Name:
-
Electric Irrigation Water Solenoid Valve
-
Material:
-
Nylon
-
Voltage:
-
3vdc~12vdc
-
Thread Size:
-
2 INCH~5INCH
-
Connector:
-
Female Thread
-
Usage:
-
Farm Garden Agriculture
-
Working pressure:
-
0-10bar
-
Flow Rate:
-
0~50m³(Economic Flow)
-
Working Temperature:
-
1℃~75℃
-
Waterproof Grade:
-
IP67
Quick Details
-
Port Size:
-
1/8''
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
GGF-A-C-13
-
Brand Name:
-
XFDZ
-
Name:
-
Electric Irrigation Water Solenoid Valve
-
Material:
-
Nylon
-
Voltage:
-
3vdc~12vdc
-
Thread Size:
-
2 INCH~5INCH
-
Connector:
-
Female Thread
-
Usage:
-
Farm Garden Agriculture
-
Working pressure:
-
0-10bar
-
Flow Rate:
-
0~50m³(Economic Flow)
-
Working Temperature:
-
1℃~75℃
-
Waterproof Grade:
-
IP67
xfdz

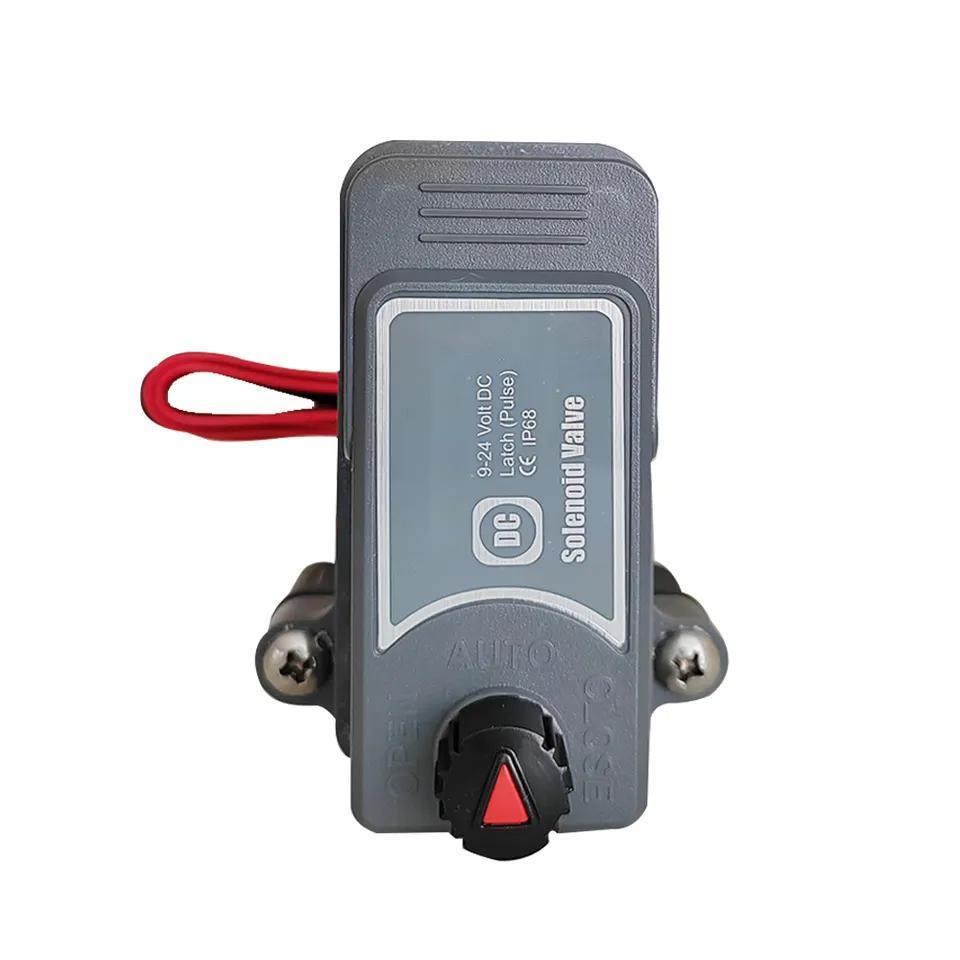

Motor Type Solenoid Valve for Agriculture Irrigation
Feature:
1.Pilot operated diaphragm structure.
2.Dubble filtration to protect the solenoid coil.
3.water-proof sealing coil.
4.Little water-head lose by straight line flow.
5.Manual operated flow control handle.
1.Pilot operated diaphragm structure.
2.Dubble filtration to protect the solenoid coil.
3.water-proof sealing coil.
4.Little water-head lose by straight line flow.
5.Manual operated flow control handle.
|
Name
|
Motor Pulse irrigation water solenoid valve
|
|
|
||
|
Port size
|
1/2inch~5inch
|
|
|
||
|
Port thread
|
Female G
|
|
|
||
|
Orifice
|
DN15/DN20/DN25/DN32/DN50/DN80/DN90/DN125
|
|
|
||
|
Pressure
|
0--0.8 MPa
|
|
|
||
|
Flow rate
|
0~400 m³/h
|
|
|
||
|
Body material
|
Reinforced nylon
|
|
|
||
|
Sealring material
|
NBR/EPDM/SILICONE
|
|
|
||
|
Temperature
|
Water Temp≤42℃ Surround Temp≤82℃
|
|
|
||
|
Voltage
|
DC Latching 3V/6V/9V/12V/24V
|
|
|
||
|
Features
|
Sediment-proof / Auto&Manual Switch
|
|
|
||
Introduction
The products are mainly used in estate irrigation, agricultural water irrigation and other scenario systems, using pulse-type signal switch valve control water flow, can be combined with multi-station WIFI controller for remote operation, superior waterproof performance, has the advantage of UV resistance, corrosion resistance characteristics
Products Series
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us ortell us in your mail, so that we could regard your inquiry priority.
