Quick Details
-
Video Resolution:
-
1920 (H) x 1200(V) pixels
-
Image Sensor:
-
Aptina AR0234
-
Frame rate:
-
90fps at 1080P /1200P
-
Compression format:
-
MJPEG / YUV2(YUYV)
-
Shutter Type:
-
Global shutter
-
Lens:
-
Different no distortion lens optional
-
Interface:
-
high speed usb 2.0 interface
-
Support OS:
-
Android Linux Windows MAC OS
-
Certification:
-
ce FCC RoHS
-
Free driver:
-
Plug and play
-
Special Features:
-
Global shutter, High Frame rate 90fps
-
Function:
-
High Speed Camera
-
Video Compression Format:
-
MJPEG
-
Data Storage Options:
-
PC Computer
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ELP
-
Model Number:
-
ELP-USBGS1200P01-H110
-
Video Resolution:
-
1920 (H) x 1200(V) pixels
-
Image Sensor:
-
Aptina AR0234
-
Frame rate:
-
90fps at 1080P /1200P
-
Compression format:
-
MJPEG / YUV2(YUYV)
-
Shutter Type:
-
Global shutter
-
Lens:
-
Different no distortion lens optional
-
Interface:
-
high speed usb 2.0 interface
-
Support OS:
-
Android Linux Windows MAC OS
-
Certification:
-
ce FCC RoHS
-
Free driver:
-
Plug and play
-
Special Features:
-
Global shutter, High Frame rate 90fps
-
Function:
-
High Speed Camera
-
Video Compression Format:
-
MJPEG
-
Data Storage Options:
-
PC Computer
Products Description

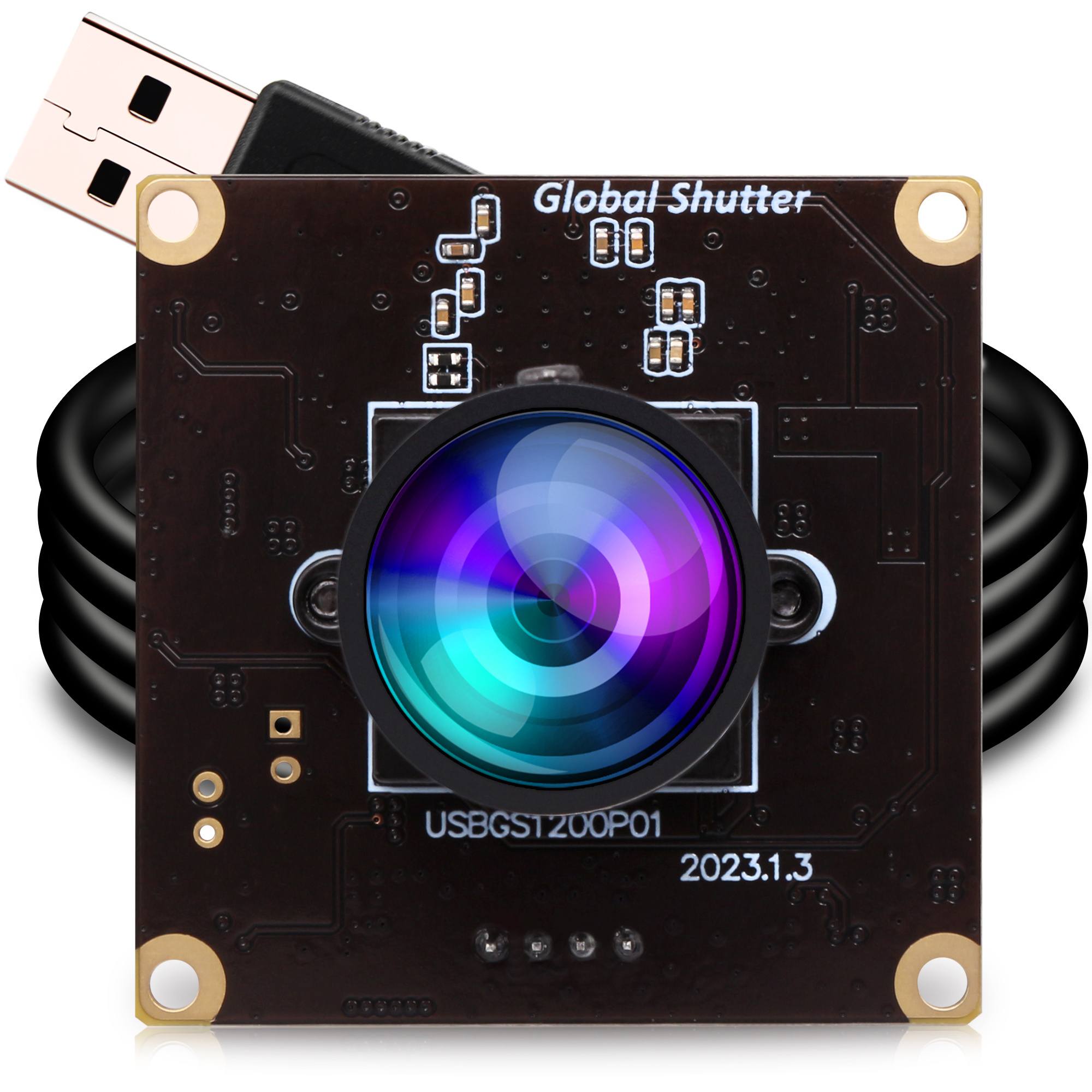

2.3MP Global Shutter 1200P/ 1080P 90fps AR0234 Full HD USB Webcam Camera Module with No Distortion Lens for Industrial Machine Vision
Key Features
1. Based on 2mp Global shutter Aptina AR0234 (1/2.6”) Sensor for high quality image ., Max 1920X1200P resolution
2. Shutter Type : Global shutter ,Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
3. High Frame Rate- MJPEG 90fps @1920x1200 / 1920x1080 1600x1200 / 1280x960 /1280x720/ 1024x768/960x720/ 800x600/640x480/ 320x240
4. Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
5. Applications:
High image quality, High frame rate,and Good sensitivity make global shutter cameras very good for application, such as High Speed- sports photography ,industrial inspection.
video applications, industrial automation, robotics, or scientific imaging.Some can also be used for Augmented and virtual
reality, gesture and eye tracking, depth and motion detection.
6. Lens: Different no distortion lens optional
2. Shutter Type : Global shutter ,Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
3. High Frame Rate- MJPEG 90fps @1920x1200 / 1920x1080 1600x1200 / 1280x960 /1280x720/ 1024x768/960x720/ 800x600/640x480/ 320x240
4. Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
5. Applications:
High image quality, High frame rate,and Good sensitivity make global shutter cameras very good for application, such as High Speed- sports photography ,industrial inspection.
video applications, industrial automation, robotics, or scientific imaging.Some can also be used for Augmented and virtual
reality, gesture and eye tracking, depth and motion detection.
6. Lens: Different no distortion lens optional
Specification
|
Model
|
ELP-USBGS1200P01-H110
|
|
|
|
Sensor
|
Aptina AR0234 (1/2.6”) Global Shutter
|
|
|
|
Max Resolution
|
1920 (H) *1200 (V)
|
|
|
|
Sensor Size
|
1/2.6 inch (4:3)
|
|
|
|
PixelSize
|
3.0μm
|
|
|
|
Compression Format
|
MJPEG/YUV2 (YUYV)
|
|
|
|
Resolution& Framerate
|
1920x1200 @ 90fps MJPEG/1600x1200 @ 90fps MJPEG/ 1280x720 @ 90fps MJPEG/ 960x720 @ 90fps MJPEG/ 640x480 @ 90fps MJPEG/
|
1920x1080 @ 90fps MJPEG
1280x960 @ 90fps MJPEG 1024x768 @ 90fps MJPEG 800x600@ 90fps MJPEG 320x240 @ 90fps MJPEG |
|
|
Surface Mount Technology
|
SMT
|
|
|
|
Focus
|
Fixed
|
|
|
|
Central Definition
|
600LW/PH (Center)
|
|
|
|
S/N Ratio
|
37dB
|
|
|
|
DynamicRange
|
70dB
|
|
|
|
Sensitivity
|
1.4V/lux-sec@550nm
|
|
|
|
MiniIllumination
|
0.3lux
|
|
|
|
Shutter
|
Global Shutter
|
|
|
|
Interface
|
USB2.0 High Speed
|
|
|
|
AEC
|
Support
|
|
|
|
AWB
|
Support
|
|
|
|
AGC
|
Support
|
|
|
|
AdjustableParameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Compensation, Exposure |
|
|
|
Lens Parameters
|
Different No distortion lens optional |
|
|
|
LED board power connector
|
Support 2P-2.0mm socket
|
|
|
|
Power Supply
|
USBBUSPOWER4P-2.0mm socket
|
|
|
|
Operating Voltage
|
DC5V
|
|
|
|
WorkingCurrent
|
160mA- 190mA
|
|
|
|
Dimension
|
38mm x 38mm
|
|
|
|
Storage Temperature
|
-20°Cto80°C
|
|
|
|
Working Temperature
|
0°C to 60°C
|
|
|
|
USBCable
|
1M(2M/3M/5M ... Optional )
|
|
|
|
OperatingSystemRequest
|
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux withUVC(abovelinux-2.6.26) MAC-OS X 10.4.8 orlater Android4.0 or above with UVC |
|
|
