Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PMSK
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3400*1200*1500mm
-
Weight (KG):
-
1300 KG
-
Power (kW):
-
4
-
Product name:
-
Panel Furniture Sides CNC Drilling Machine
-
Application:
-
CNC Drilling Machine for Cabinet Furniture
-
Processing material:
-
Multilayer Panel,Solid Wood Panel,Particle Panel
-
Spindle speed:
-
2.2KW/18000rpm
-
Range of travel:
-
3100*50mm
-
Traveling speed:
-
60m/min
-
Spindle:
-
2 Spindle Drilling Holes
-
Control system:
-
Syntec Control System
-
Customized:
-
Logo, working area, power, etc
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare part
Quick Details
-
Max.Working Width(mm):
-
2800
-
Marketing Type:
-
Popular model in 2022
-
Motor Type:
-
servo type
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PMSK
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3400*1200*1500mm
-
Weight (KG):
-
1300 KG
-
Power (kW):
-
4
-
Product name:
-
Panel Furniture Sides CNC Drilling Machine
-
Application:
-
CNC Drilling Machine for Cabinet Furniture
-
Processing material:
-
Multilayer Panel,Solid Wood Panel,Particle Panel
-
Spindle speed:
-
2.2KW/18000rpm
-
Range of travel:
-
3100*50mm
-
Traveling speed:
-
60m/min
-
Spindle:
-
2 Spindle Drilling Holes
-
Control system:
-
Syntec Control System
-
Customized:
-
Logo, working area, power, etc
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare part
Products Description
Automatic
Cnc

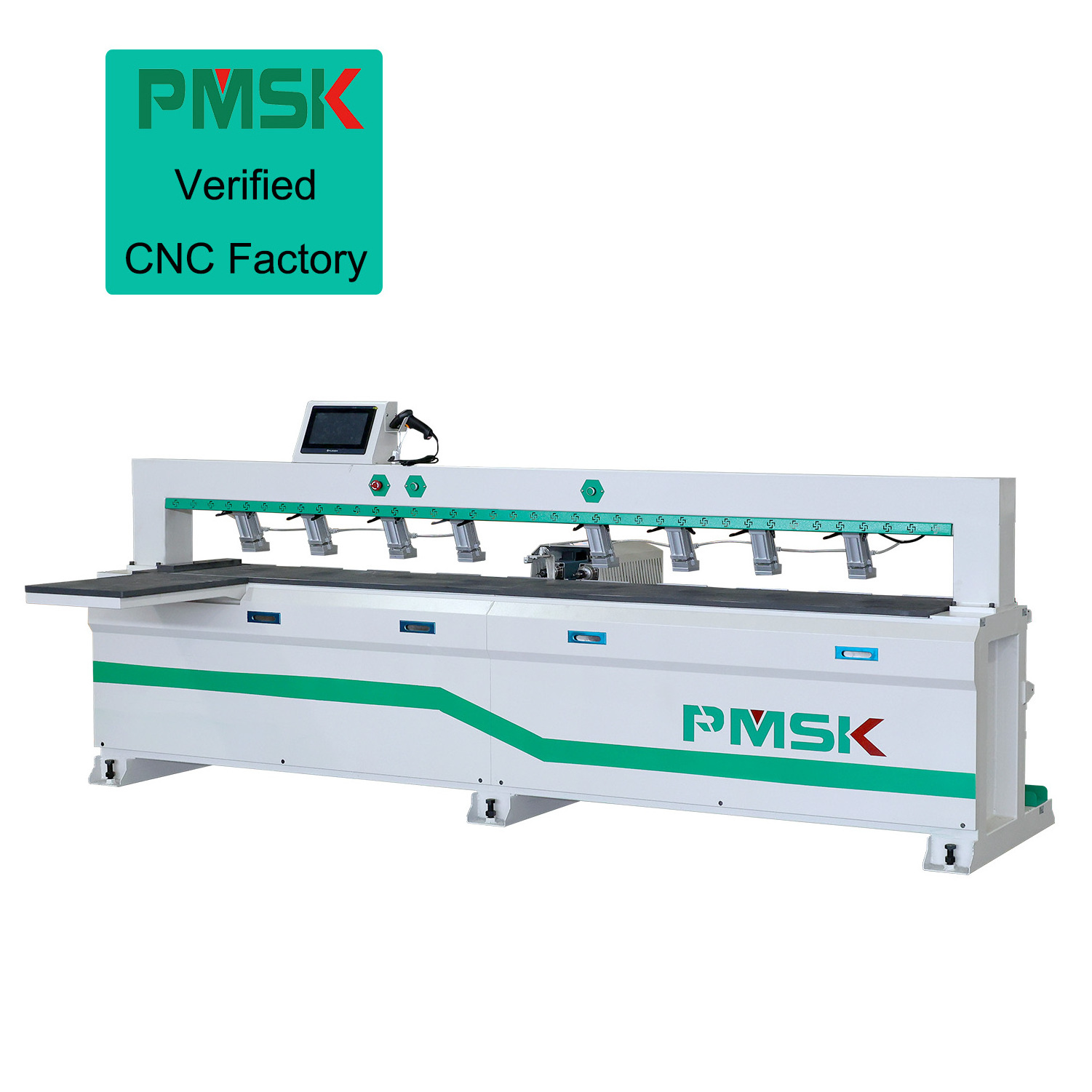

Side Hole Boring Machine Panel Furniture Horizontal Drilling Machine
1.PT-2 CNC horizontal drill is an economical and practical panel furniture horizontal hole making equipment, it can composed economical plate furniture production line with cutting machine,
2.It can replace the traditional table saw and row drilling. Its biggest advantage is that it can scan the side holes directly, cast off the traditional processing methods depend on the chief Boring.
3.The machine is mainly used to solve the problem that the CNC drilling machine can not drills the side holes.Easy to operate，truly make intelligent production with high precision and speed.
4.CNC horizontal single row drilling machine can drill horizontal holes through automatic induction vertical hole. High drilling speed, high efficiency, realize 0 error processing.
|
Model
|
PT-2 Wood Drilling Machine
|
Spindle
|
2 Spindle Drilling Holes
|
||
|
Type of transmission
|
X rack/Z ball screw
|
Traveling speed
|
60m/min
|
||
|
Max working size
|
2800*50mm
|
Drive system
|
Special Servo Motor
|
||
|
Operated system
|
Special Control System
|
Customized
|
Logo, working area, power, etc
|
||
|
After-sales Service Provided
|
4800KG
|
Online support, Video technical support, Free spare part
|
|
||
Detail in Kind Shooting
Double Inclined Rails
Double inclined rails pneumatically press
+Steel plate
+ Silica gel plate countertop
The plate to make the plate stable
Laser Sensing Probe
Japan brand laser vision system or
American Banner laser probe
The laser positioning and stability are
good,and it can realize zero error
in dilling
Air-cooled Double Spindle
Servo drive drilling unti (not pneumati push drilling )is the reason for fast action and well conrol on drilling depth , Main spindle plus drilling
package,
added stealth
link spare parts function
