Quick Details
-
Warranty:
-
3years
-
Brand Name:
-
HOPESUN
-
Model Number:
-
HPSP-100W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
47.3*21.3*1.38inch/1200*540*35mm
-
Product name:
-

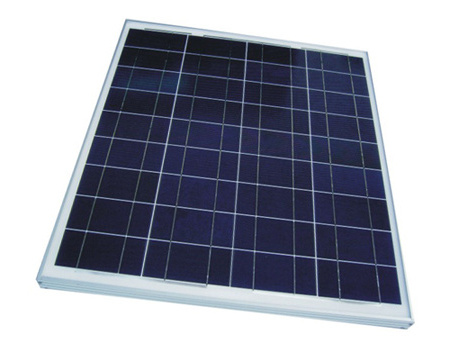

100W Polycrystalline Tempered Glass Solar Panel
-
Voc:
-
21.6V
-
Isc:
-
5.89A
-
Vmp:
-
18V
-
Imp:
-
5.36A
-
Surface Material:
-
3.2mm Tempered Glass
-
Cell Efficiency:
-
16%-17%
-
Weight:
-
10kg/22.1ibs/352.8oz
-
Certificate:
-
CE
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
100W
-
Warranty:
-
3years
-
Brand Name:
-
HOPESUN
-
Model Number:
-
HPSP-100W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
47.3*21.3*1.38inch/1200*540*35mm
-
Product name:
-
100W Polycrystalline Tempered Glass Solar Panel
-
Voc:
-
21.6V
-
Isc:
-
5.89A
-
Vmp:
-
18V
-
Imp:
-
5.36A
-
Surface Material:
-
3.2mm Tempered Glass
-
Cell Efficiency:
-
16%-17%
-
Weight:
-
10kg/22.1ibs/352.8oz
-
Certificate:
-
CE
Features
16-17% high efficiency
Tough and durable
Easy to install
Solar Panel Warranty
10 years lmited manufacturing warranty
12 years for 90% of warranted minimum power
20 years for 80% of warranted minimum power
Front Side
1.The new solar panels,use of highly efficient polycrystalline silicon cell,the conversion rate of up to 16.5%.
2.Use tempered glass,can bear the wind and snow load,wind load(2400 Pascal) and snow load(5400 Pascal).
3.Has a good low light performance.
Back Side
1.Use aluminum frame,with strong resistance to mechanical impact.
2.Use PET,corrosion resistance,aging resistance.
3.The use of high-quality EVA,strong translucent.
Detail 1
3.2 mm (0.13 inches)
Tempered Glass
Detail 2
35 mm (1.37 inches)
Aluminum Frame
Detail 3
156*156 mm
Polycrystalline Cell
Detail 4
90 cm (35.4 inches)
Photovoltaic Cable
65*65*20 mm
Junction Box
Glass solar panel,choose of high efficiency polycrystalline silicon,cell conversion efficiency of up to 16%-17%,tempered glass rugged and durable,the service life of 25 years.It is applied to housing power generation,electric cars,patrol cars,RV,street lamps and others.
