Printing bag one by one
1, 2, 3, 4 colors for you choice.
High speed
Automatic controller system
pp woven bag
non woven bag
paper bag
- Product Details
- {{item.text}}
Quick Details
-
Dimensions(L*W*H):
-
2500mmX 1700MMX 2600MM
-
Weight:
-
3500 KG
-
Print Dimension:
-
560mm
-
Print Speed:
-
600mm
-
Suitable material:
-
HDPE LLDPE LDPE PAPER PP WOVEN, NON WOVEN, CLOTH
-
Color:
-
1,2,3,4,5,6,7,8,9,10Colors
-
Printing speed genreal:
-
60m/min,
-
Application:
-
Revised Printing is avaible
-
Max Material Width:
-
800mm
-
Max Printing Width:
-
780mm
-
Mechanical Speed:
-
80m/min
-
Printing Speed:
-
5-60m/min
-
Machine Weight(kg):
-
2500kg
-
Overall Dimension (m):
-
4x1.8x2.2
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BOSEN
-
Voltage:
-
380v/ Customer's Requirement
-
Dimensions(L*W*H):
-
2500mmX 1700MMX 2600MM
-
Weight:
-
3500 KG
-
Print Dimension:
-
560mm
-
Print Speed:
-
600mm
-
Suitable material:
-
HDPE LLDPE LDPE PAPER PP WOVEN, NON WOVEN, CLOTH
-
Color:
-
1,2,3,4,5,6,7,8,9,10Colors
-
Printing speed genreal:
-
60m/min,
-
Application:
-
Revised Printing is avaible
-
Max Material Width:
-
800mm
-
Max Printing Width:
-
780mm
-
Mechanical Speed:
-
80m/min
-
Printing Speed:
-
5-60m/min
-
Machine Weight(kg):
-
2500kg
-
Overall Dimension (m):
-
4x1.8x2.2
Product Description
Application
Printing machine could be used for printing materials as following:
1.Polyethylene, polyethylene plastic film .
2.Bag( packing bag for food, supermarket handbag, vest bag and clothes bag),
3.Roller paper and craft paper
4.Pp woven bag , pvc film, bopp film,
5.Laminated bag ,
6.Non woven bag,
7.Rice bag
8.Paper cup etc
|
Model
|
BSYT-2800
|
BSYT-4800
|
BSYT-6800
|
||
|
Max. Material Roller
|
1200mm
|
1200mm
|
1200mm
|
||
|
Max. Material Width
|
800mm
|
800mm
|
800mm
|
||
|
Max. Printing Width
|
780mm
|
780mm
|
780mm
|
||
|
Printing Length
|
200-1200mm,or customied
|
|
|
||
|
Print Colors
|
2 colors
|
4 colors
|
6 colors
|
||
|
Mechanical Speed
|
80m/min
|
80m/min
|
80m/min
|
||
|
Printing Speed
|
5-60m/min
|
5-60m/min
|
5-60m/min
|
||
|
Total Power
|
10kw
|
12kw
|
15kw
|
||
|
Plate Thickness (including two-sided glue paper)
|
2.38mm, or customied
|
|
|
||
|
Machine Weight (kg)
|
2500kg
|
3500
|
4500
|
||
|
Overall Dimension (m)
|
4x1.8x2.2
|
6x1.8x2.4
|
6x1.8x2.4
|
||
|
Working Voltage
|
380V 3-phase 50Hz, or customied
|
|
|
||
Main Features
1. Easy operation, flexible starting, accurate Ppcolor register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360°continuous and adjustable longitudinal register device.
7. The motor has inverter controller with different speed.
8. The electric board with buttons let machine operation be easy and effective.
9. Automatic laoding material, computer control is available.
Extra Optional Devices:
1) EPC web guider + Auto tension controller
2) Digital Corona Treater
3) Air Shaft
4) Computer control system for colour register
5) High speed
6) High exported brands parts
7)Ceramic anilox roller
8) Automatic material laoder
Other types for your reference.
BAG PRINTING MACHINE
2 COLORS PRINTING MACHINE
Economic type roller to roller
Winder rolling diameter Dia 600mm to 1000mm
Rewiner Dia 450-600mm
Manual or auto tension controller
Web guide photo for auto web deviation
Inverter control
PP woven printing
Film printing
Non woven roller printing
4 COLORS PRINTING MACHINE
Winder could be manual or automatic tension contoller
Rewinder be tension controller or torque motor
Web guide automatic correction.
Automatic tension controller
Computer regisiter option
Blades option
Corona treatment option
Air shafts or steel roller
8 COLOR PRINTING MACHINE
Automatic material laoder winder unit option
Rewinder could be tension controller or torque motor
Web guide automatic correction.
Automatic tension controller
Computer regisiter option
Blades options
Singe rewinder or double rewinder options
Speed could be middle speed.high speed option
Detailed Images
Sample Photo
2 colors print machine for printing non woven roller, plastic film, craft paper see following:

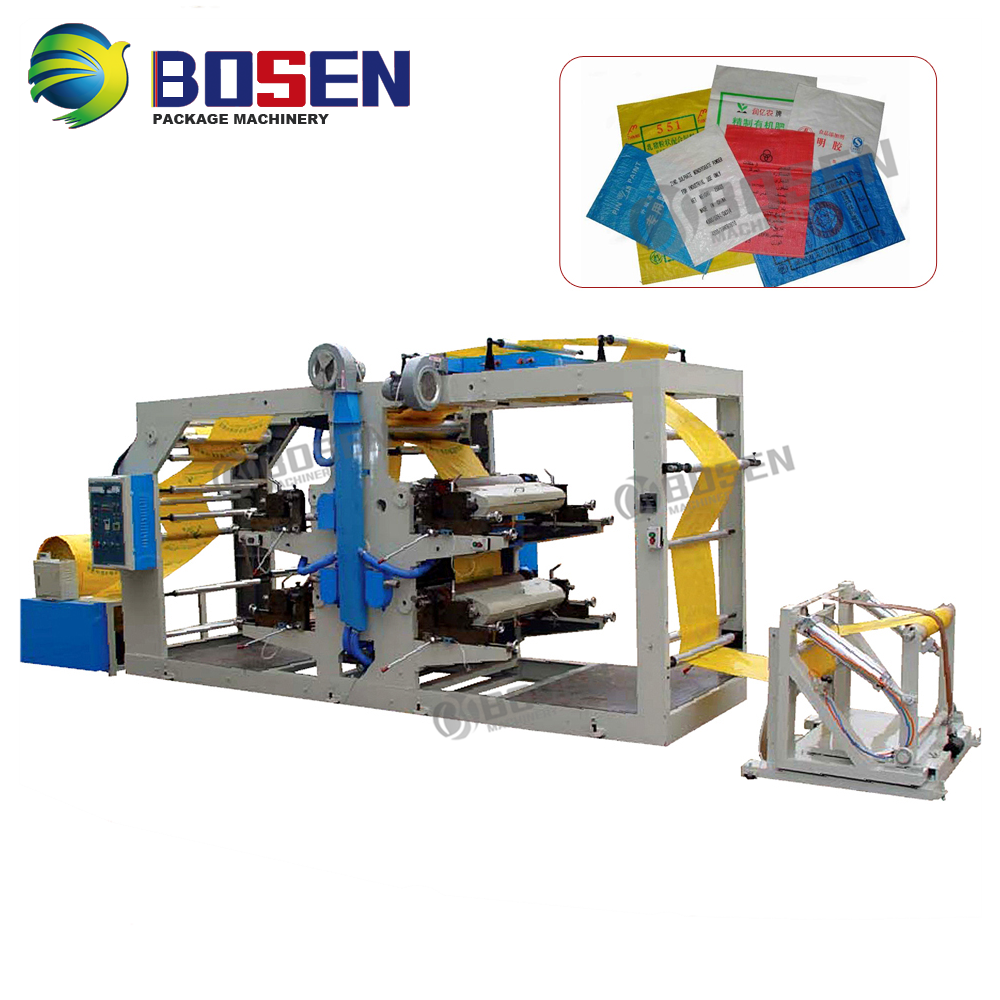

4 colors Automatic type for printing non woven, plastic film, rice bag, woven bag, paper material see following:
Control system Print unit Photo web guide 4 colors
RELATED PRODUCTS
QUALITY INSPECTION & CERTIFICATES
OUR LOGISTICS
FAQ
Guest: Are you a manufacturer or a trade company?
BOSEN:
We have our factory for manufacturer and we also trade associated products. We are Wenzhou bosen machinery co.,tld. And Wenzhou bosen trade co.,ltd. Our factory has over 20 years experience.
Guest: Do you accept special design?
BOSEN:
Yes, we accept design and manufacture products according to client's special requirements.
Guest: Can you arrange engineer to come to us?
Customer: Usually we will arrange video online teaching, also we can send engineer to come.
Guest: How long will you take before shipping?
BOSEN:
Normally it will take 25 days after we receive the payment. It is depends on the products that you need, but we guarantee for shipping as fast as we could.
Guest: How can I go to your factory
BOSEN:
We are in ruian city Zhejiang China. If you want to come, you can take air to Wenzhou air port, Or take train to RuiAn station.
