Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AISO/OEM
-
Model Number:
-
ZW7-35/630+CT(built-out)
-
Product Keywords:
-
Switch vacuum
-
Product name:
-
35kV breaker Switch
-
Rated frequency:
-
50Hz/60Hz
-
Standard:
-
IEC60947-2
-
Rated short-circuit duration:
-
4S
-
Customized:
-
Accept special order
-
Material:
-
Copper
-
Mechanical Life:
-
10000 Times
-
Warranty:
-
2 Years
-
Type:
-
Vacuum
Quick Details
-
Breaking Capacity:
-
31.5kA
-
Rated Voltage:
-
35kV
-
Rated Current:
-
630A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AISO/OEM
-
Model Number:
-
ZW7-35/630+CT(built-out)
-
Product Keywords:
-
Switch vacuum
-
Product name:
-
35kV breaker Switch
-
Rated frequency:
-
50Hz/60Hz
-
Standard:
-
IEC60947-2
-
Rated short-circuit duration:
-
4S
-
Customized:
-
Accept special order
-
Material:
-
Copper
-
Mechanical Life:
-
10000 Times
-
Warranty:
-
2 Years
-
Type:
-
Vacuum

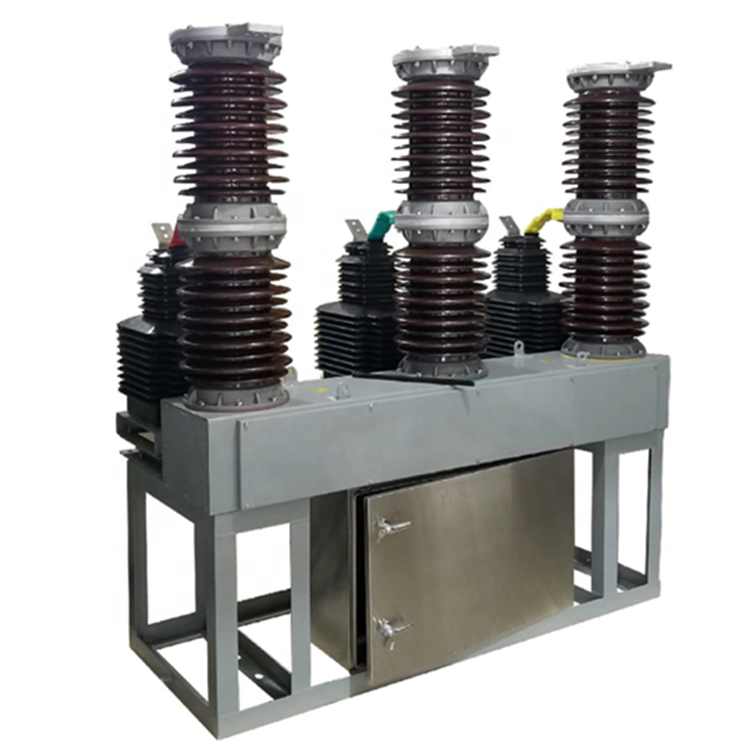

35kV Outdoor High Voltage Electrical Vacuum Circuit Breaker Switch
35kV Outdoor High Voltage Electrical Vacuum Circuit Breaker Switch
Do Better Performances in Demanding Duties
Yueqing Aiso circuit breakers gain client trust thanks to their proven reputation for reliability, performance and long life. CBs from Yueqing Aiso are available for original equipment manufacturers (OEM) to incorporate in their own installations or for use in repair, retrofit and upgrade projects.
1, Full engineering and technical support: 3 professional manufacturers, and technical service team.
2, Quality is No1 ,our culture.
3, Quickly lead times:"Time is gold" for you and for us
4, 30min fast response:we have professional team,7*20H
Contact us
Product Description
Z W 7-40.5 series 35kV Outdoor High Voltage Electrical Vacuum Circuit Breaker Switch:
Applicable place: ( Suitable for frequent operating places )
1. Urban,rural network.
2. Industrial enterprises.
It is mainly used in outdoor 35KV distribution system to control and protect.
35kV Breaker Switch Advantages
1.It conforms to GB1984-89 and IEC56 “ AC high voltage circuit breaker ” .
2.It can be charged and switched by remote control switch or by hand.
3.Good sealing, anti-aging, high pressure, no burning, no explosion, long life, convenient installation and maintenance features.
4.It is composed of spring operating mechanism or electromagnetic operating mechanism .
5. Its overall structure is supported by porcelain insulator, vacuum interrupter built in upper insulator, downside insulator used for supporting. The breaker applies
Vacuum Switch Environmental Conditions
Ambient temperature:
-
15
°C~+40°C
Relative humidity:
≤95%or≤90%
The daily aver a ge saturated vapor pressure : ≤2.2KPa ;
The monthly average value: ≤1.8KPa .
Altitude: ≤ 1 000m
Seismic intensity: ≤8
*No fire, explosion, serious filthy, chemical corrosion and violent vibration of places.
| Description | Unit | Data | ||
| Rated voltage | KV | 35 | ||
| Rated current | A | 630 | ||
| Rated frequency | Hz | 50/60 | ||
| Rated short-circuit brekaing current | kA | 20/25/31.5/40 | ||
| Meachical life | Time | 10000 | ||
Note:Please contact the factory to confirm the latest parameters
