Quick Details
-
Panel Size:
-
25 x 19 mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
KHN205612CSR1D-2C
-
Name:
-
2 digit 7 segment led display
-
HS Code:
-
853 120 0000
-
Warranty:
-
1 Year
-
Dimension:
-
25*19*8 mm
-
Emitting color:
-
Red
-
Surface color:
-
Black
-
Forward Voltage:
-
2.0 V
-
Forward Current:
-
5 - 10mA
-
Soldering Temperature:
-
260 ℃ wave soldering in 3 seconds
-
Connecting type:
-
Common Cathode 10 pins
-
Pixel Pitch:
-
2.5
Quick Details
-
Application:
-
Digital Indicators
-
Brand Name:
-
Kohon
-
Color:
-
Red
-
Panel Size:
-
25 x 19 mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
KHN205612CSR1D-2C
-
Name:
-
2 digit 7 segment led display
-
HS Code:
-
853 120 0000
-
Warranty:
-
1 Year
-
Dimension:
-
25*19*8 mm
-
Emitting color:
-
Red
-
Surface color:
-
Black
-
Forward Voltage:
-
2.0 V
-
Forward Current:
-
5 - 10mA
-
Soldering Temperature:
-
260 ℃ wave soldering in 3 seconds
-
Connecting type:
-
Common Cathode 10 pins
-
Pixel Pitch:
-
2.5
Red emitting 2 digit 0.56 inch common cathode dual 7 segment led display with 10 pins
A. What is a 7 segment led display?
7 segment led display, or seven segment led display, is a form of optoelectronics display component for displaying numerals, decimal points, letters and symbols in all kinds of led digital indicators.
7 segment led display specification of item KHN205612CSR1D-2C
1) Type: 2 digit 7 segment led display red, 0.56" digit height

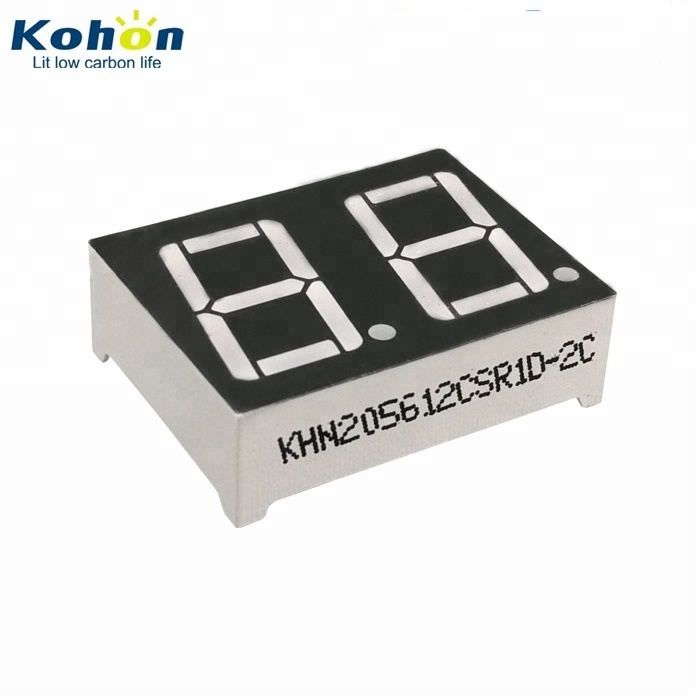

2) Image of display
3) 7 segment led display sizes and pins
4) 7 segment led display circuit diagram
5) 7 segment led display datasheet
Electrical and optical parameters:
| Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
| Luminous Intensity | I v | 50 | / | 70 | mcd | I f =20mA |
| Peak Wavelength | λ P | / | / | / | nm | I f =20mA |
| Dominant Wavelength | λ d | 629 | / | 635 | nm | I f =20mA |
| Forward Voltage | V f | 1.8 | 2.0 | 2.4 | V | I f =20mA |
| Reverse Current | I r | / | / | 50 | μA | V r =5V |
| Forward Current(suggested) | I f | 3 | 5-10 | 20 | mA | / |
Absolute Maximum Ratings:
| Parameter | Rating | Unit |
| Reverse Voltage | 5 | V |
| Power Dissipation | 50 | mW/chip |
| Operation Temperature | -20 to +85 | °C |
| Storage Temperature | -20 to +85 | °C |
| Storage Humidity | 45%-65% | RH |
| Soldering Temperature(Wave soldering) | 260 °C in 3s, Iron soldering<360°C | |
| Peak IF(mA)(1/10 duty cycle 0.1ms pulse width) | 80 | mA/chip |
| Continuous Forwrd Current | 20 | mA/chip |
B. 7 segment led display common anode and common cathode
Common Cathode , all of the cathode(negative terminals) of the segment led are connected and brought out to a common pin.
Common Anode , all of the anode(positive terminals) of the segment led are connected and brought out to a common pin.
C. General 7 segment led display types
- Unit of 1-digit, 2-digit, 3-digit, 4-digit, 5-digit, 6-digit and Custom;
- Digit height from 0.25 inch to 5 inch;
- Emitting colors red , yellow , blue , orange , white , yellow-green , pure green ;
- Surface colors black, grey, red, white;
- Connecting by common anode or common cathode ;
- Lens colors white, yellow, red, green, transparent or water clear;
- Pin diameter ∅ 0.45mm, 0.51mm, 0.6mm...
- Pin length from 7.6mm to 38mm, generally 10.28mm, straight and bent type
