Quick Details
-
Power:
-
2.2KW
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
Customer Size
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Carbonated Drink CO2 Mixer Machine with Stainless Steel Mixing Tank
-
Function:
-
CO2
-
Material:
-
Stainless Steel 304/SUS316
-
Type:
-
Mix Water Co2
-
Application:
-
Carbonated beverage
-
Feature:
-
Automatic (high CO2 Content)
-
Capacity:
-
1000-5000L/h
-
Usage:
-
Mix Carbonated Drinks
-
Customized:
-
Cab be accepted
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
reliable
-
Voltage:
-
220V/380V
-
Power:
-
2.2KW
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
Customer Size
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Carbonated Drink CO2 Mixer Machine with Stainless Steel Mixing Tank
-
Function:
-
CO2
-
Material:
-
Stainless Steel 304/SUS316
-
Type:
-
Mix Water Co2
-
Application:
-
Carbonated beverage
-
Feature:
-
Automatic (high CO2 Content)
-
Capacity:
-
1000-5000L/h
-
Usage:
-
Mix Carbonated Drinks
-
Customized:
-
Cab be accepted
-
Certification:
-
CE ISO

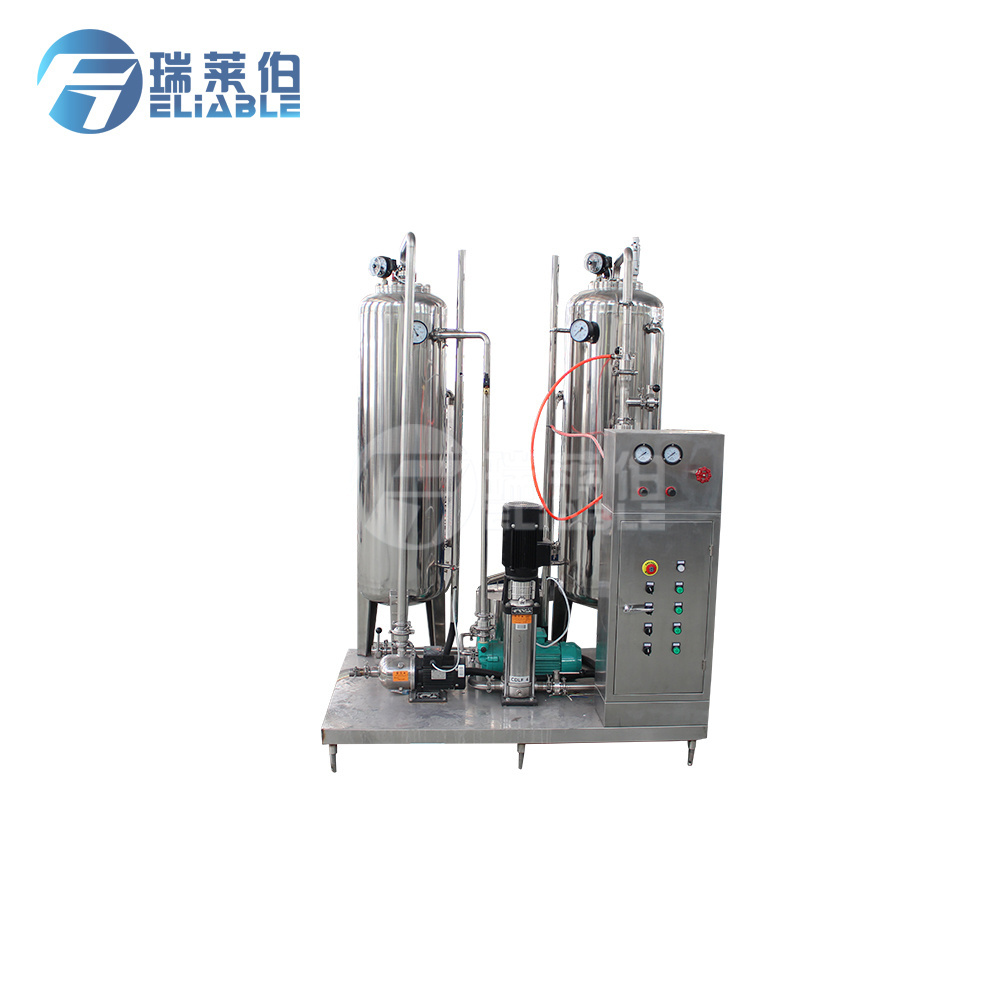

Carbonated Drink CO2 Mixer Machine with Stainless Steel Mixing Tank
The machine is applied for carbonation and proportion mixing of various gas beverages (water, syrup, and CO2), such as lemon and Cola. It is the main equipment among the complete equipment of beverage production line (especially the key equipment producing middle-and top-level beverage).
1 Automation with Alarm:
The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC.Once a error occurs,the alarm lamp will light and the alarm ring will sound and will stop automatically.
2 Easy operation and regulation:
The operation of the mixer is especially convenient.Only turn around the buttons according to the pre-set program,the normal operation can be carried out.The production capacity,water-sugar proportion and gas content can be adjusted without exchanging any parts.
3 Even mixing and accurate proportion:
One time mixing process is adopted,so the mixture is even.The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation.Its precision can reach about 5%.
4 Enough gas content:
adopts vacuum desoxidation technology at normal-temperature.Its desoxidation ratio reaches above 90%.It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice carbonating.So its carbon content is especially high.
Technology data:
|
Capacity |
3500kg/h |
|
Range of proportion on syrup and water |
1:3 – 1:10 |
|
Volume of Carbonation |
(CO2: H2O in volume) >2: 5 |
|
Mixing precise error |
≤2% |
|
Cooling water temperature in entry mouth |
0-4°C |
|
Cooling water pressure in entry mouth |
0.01-0.08Mpa |
|
Syrup temperature in entry mouth |
2-8°C |
|
Syrup pressure in entry mouth |
0.01-0.08Mpa |
|
Drink dehydration method: |
Using carbon dioxide gas replacement of oxygen in the water |
|
CO2 pressure in entry mouth |
0.7-0.8Mpa |
|
CO2 pure % |
>99.9% |
|
Pressure for CO2 tank and syrup tank |
0.05-0.09Mpa |
|
Working pressure of tank |
0.2-0.5Mpa |
Delivery & Packing
Delivery Time:
30-45 days after get your deposit.
Coming Document:
1) Machine Quality Guarantee
2) Complete set install & maintain instruction Book in English language
3) Complete Document for customer to clear its custom
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
