Name:: Electric high voltage polymer pin type insulators

certification:: KEMA,ISO9001

color:: Red/white/Gray,ect,or customized

Material:: composite insulator housing

OEM:: Available

Quick Details

Brand Name:: GDCN

Place of Origin:: Zhejiang, China

Model Number:: FZSW-10

Name:: Electric high voltage polymer pin type insulators

certification:: KEMA,ISO9001

color:: Red/white/Gray,ect,or customized

Material:: composite insulator housing

OEM:: Available

Product Description

Our company specially produces composite insulator for power transmission line, the important structure is made of shed housing,epoxy fiberglass core and metal end fittings.The surface of terminal end fittings is covered with zinc coating(hot-dip galvanization) for corrosion protection. Compared with same type ceramic and glass insulator, silicone rubber insulator has the following advantages:

（1）Small volume, light weight(is 1/7~1/10 times than ceramic insulator in the same voltage), sheds have good elasticity, not broken, convenient transportation and installation, economy.

（2）High mechanical strength. FRP ROD has high tensile strength, which is 5-10 times than ceramic materials, for core is small cross section, which makes the products small size, light weight, high tensile strength, and easy to manufacture more than 300KN large tons insulators.

（3）High antifouling property, good
aging resistance performance, the sheds made of silicone rubber injection mold has good hydrophobicity and migration, which makes insulator high anti pollution flashover voltage and good electric corrosion resistance.

（4）Easy installation and maintenance, can greatly reduce outage loss which cause due to maintenance and maintenance charges which cause by manual labor intensity.

（5）Simpleproduction process, short delivery time.

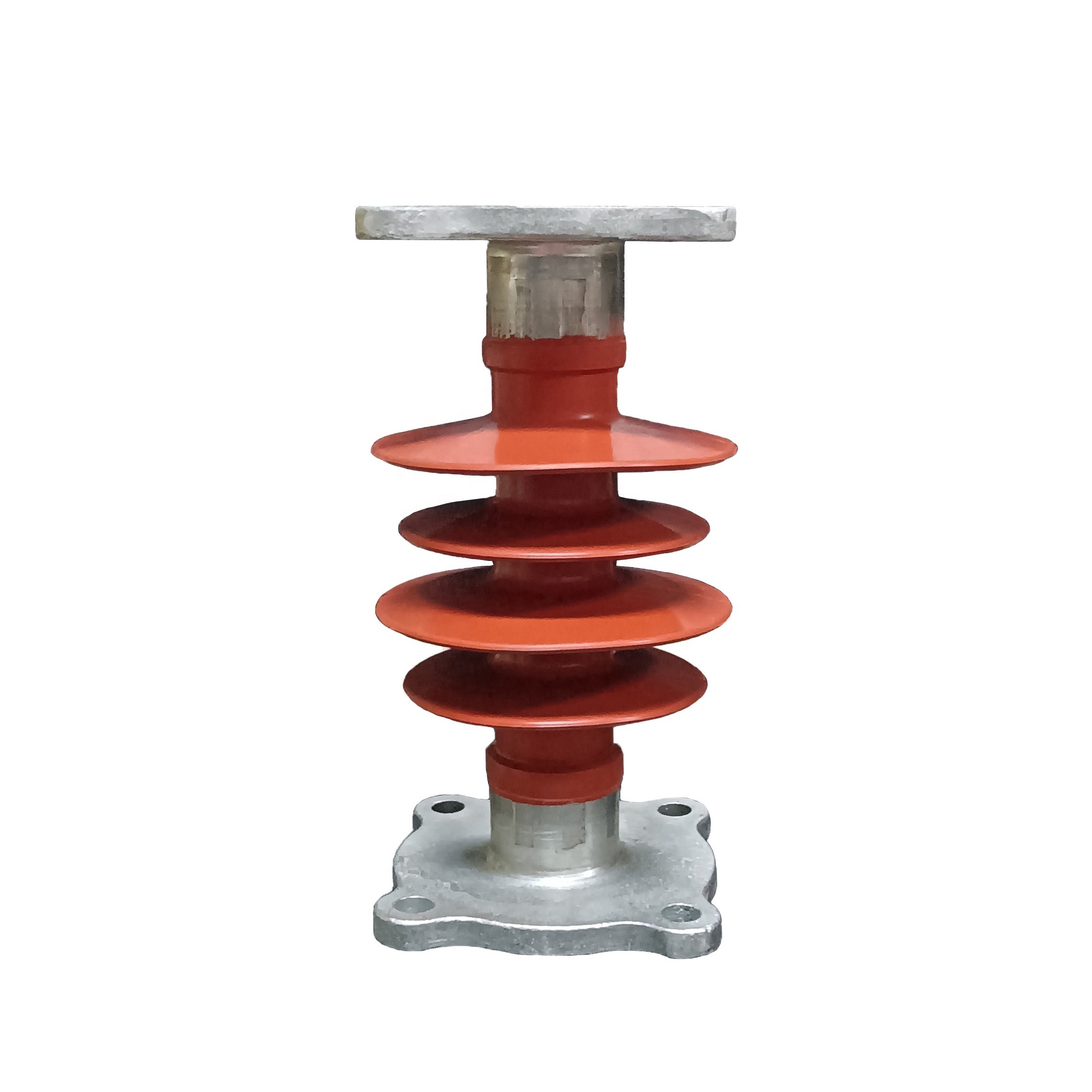

Composite Post Insulator

1. Shed connected with core by integral forming

2. Metal end fittings, core and sheds connected by new crimping process
3. The thickness of housing > 3mm, uniform thickness, confirm to IEC Standard
4. Acid resistant, high temperature resistant of epoxy fiberglass core
5.The material of metal end fittings is used with hot galvanization and technology of rare earth aluminum coating to avoid coating
shedding when crimping, prolonging the service life of the product.

Related Products

Specification

Product Model	Rated Voltage	Rated mechanical Bending load(KN)	lightning impulse withstand voltage	Wet power frequency voltage	Min nominal creepage distance	Structure height (mm) H
FZSW-10/4.0	12	4.0	90	40	420	215
FZSW-10/6.0	12	6.0	90	40	420	215
FZSW-20/8.0	24	8.0	130	60	780	305
FZSW-35/4.0	40.5	4.0	190	85	1015	445
FZSW-35/6.0	40.5	6.0	190	85	1015	445
FZSW-35/8.0	40.5	8.0	190	85	1015	445
FZSW-66/4.0	72.5	4.0	350	150	1780	770
FZSW-66/8.0	72.5	8.0	350	150	1800	770
FZSW-110/4.0	126	4.0	500	230	3150	1220
FZSW-110/8.0	126	8.0	500	230	3150	1220
FZSW-110/10	126	10	500	230	3150	1220
FZSW-220/4.0	126	4.0	1050	450	6300	2300
