Simple panli,adjustable temperature 0-200℃ (can be adjust according to product thickness)start up preheating 10-15 minutes to start working
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
unioncoding
-
Voltage:
-
220V/50HZ
-
Dimension(L*W*H):
-
34X30X38CM
-
Weight:
-
9 KG
-
Printing lines:
-
2 and 3 lines
-
ribbon size:
-
25/30/35mm
-
Word Font letter size:
-
2mm*3/4mm*15mm
-
Printing Speed:
-
0-200 pieces/min
-
OEM:
-
Accept
-
After Warranty Service:
-
Video technical support
Quick Details
-
Automatic Grade:
-
Semi-Auto
-
Application:
-
Food, Beverage, Chemical, Food beverage for expiry date printing
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
unioncoding
-
Voltage:
-
220V/50HZ
-
Dimension(L*W*H):
-
34X30X38CM
-
Weight:
-
9 KG
-
Printing lines:
-
2 and 3 lines
-
ribbon size:
-
25/30/35mm
-
Word Font letter size:
-
2mm*3/4mm*15mm
-
Printing Speed:
-
0-200 pieces/min
-
OEM:
-
Accept
-
After Warranty Service:
-
Video technical support
Products Description
|

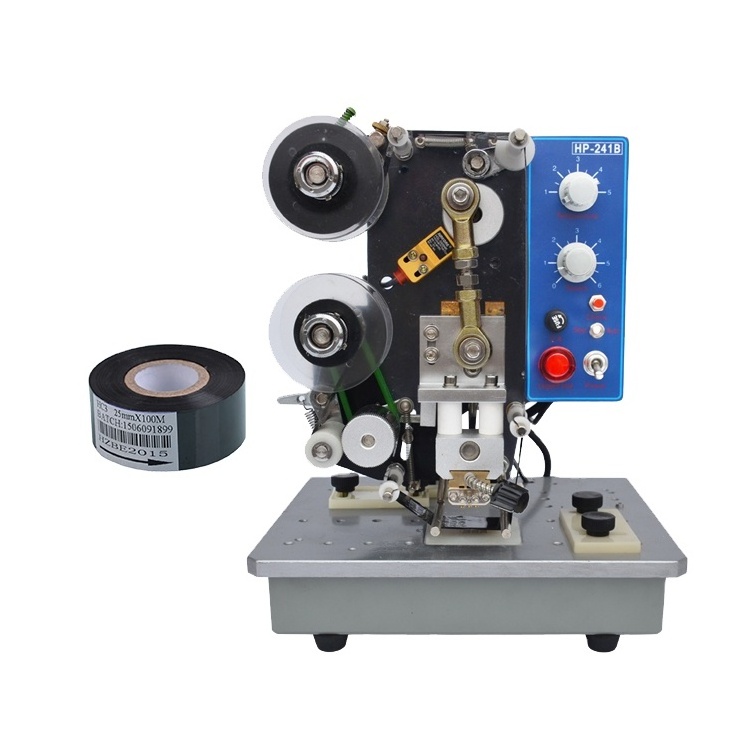

HP-241B semi-auto coding machine is desktop type. It mainly used on Plastics/ paper/ card/ box to print date and batch number.
|
|
MODEL
|
HP-241
|
|
VOLTAGE
|
110V / 220V
|
|
PRINTING SPEED
|
20-120 times/min(Speed Adjustable)
|
|
PRINTING AREA
|
For Single row, maximum at 4x35mm, allowing around 15 types.
For Double row, maximum at 8x35mm, allowing around 30 types. For Double row, maximum at 12x35mm, allowing around 45 types. |
|
RIBBON WIDTH
|
25mm*100m, 30mm*100m, 35mm*100m, MAX: 35mm
|
|
PACKAGE SIZE
|
30*20*42cm
|
|
WEIGHT
|
10KGS
|
It delivers high quality printing on flexible packaging films foils and labels.
1, Takes use of the hot stamp printing technology instead of the ink printing;
2, Can print clearly on various soft seal material;
3. Special change type struture, more convinient to change the type;
4. Perfect code, light weight, easy to operate, modular design, convenient maintenance and repair costs low;
Details Images
The pure copper characters on the
metal ironing head conduct heat
quickly,and a row can hold 13
characters.When removing the
characters,you need to use a
Phillips screwdriver to loosen the
right screvs to install
When not using continuous
automatic printing mode,you can
choose to use debug mode in
conjunction with
4.Belt wrench
When putting on the tape,press
the wrench to feed the tape
tensioning shaft,which is easy to unfold and the tape will not be scratched.
Ribbon fixing ring,easy to remove
and install the ribbon, just
unscrew the screws on the outsid
The baffle can help fix the object
and accurately code, The work button can start work at any time and can pause it, to deal with emergencie
Print effect display
By the help of the heat and pressure from the coding machine,the foil color is transferred onto the substrate product to create the desired information or image.
H
P-241B CODING MACHINE FATORY ASSEMBLE DISPLAY
|
Common Consumables: Hot coding foil
Any sizes and colors can be customized according to your need.
|
|
PRODUCT NAME
|
HOT CODING FOIL
|
|
USUAL SIZE
|
25mm*100m 30mm*100m
35mm*100m 40mm*100m
|
|
COLOR
|
BLACK WHITE GOLD SILIVER
|
|
WEIGHT
|
10.5 KGS
|
|
PACKAGE
|
ONE CARTON = 100pcs
|
|
CARTON SIZE
|
39cm*30cm*20cm
|
|
MACHINE
|
HP-241, HP-241B, DY-8 MACHINES
|
