- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Yesncer
-
Dimension(L*W*H):
-
720x720x390mm
-
Volume:
-
1360m3/h
-
Power:
-
126w
-
Cooling capacity:
-
7.2kw/h
-
Heating capacity:
-
10.8kw/h
-
Noise:
-
46A
-
Weight:
-
31.5kg
-
Use:
-
hall, office ,restaurant
-
Size:
-
720x720x390mm
-
Color:
-
White
-
Brand:
-
Yesncer
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ce
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Type:
-
Fan Coil Unit
-
Mounting:
-
Ceiling Mount
-
Airflow:
-
1360m3/h
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Yesncer
-
Dimension(L*W*H):
-
720x720x390mm
-
Volume:
-
1360m3/h
-
Power:
-
126w
-
Cooling capacity:
-
7.2kw/h
-
Heating capacity:
-
10.8kw/h
-
Noise:
-
46A
-
Weight:
-
31.5kg
-
Use:
-
hall, office ,restaurant
-
Size:
-
720x720x390mm
-
Color:
-
White
-
Brand:
-
Yesncer
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ce
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
-
Marketing Type:
-
Ordinary Product

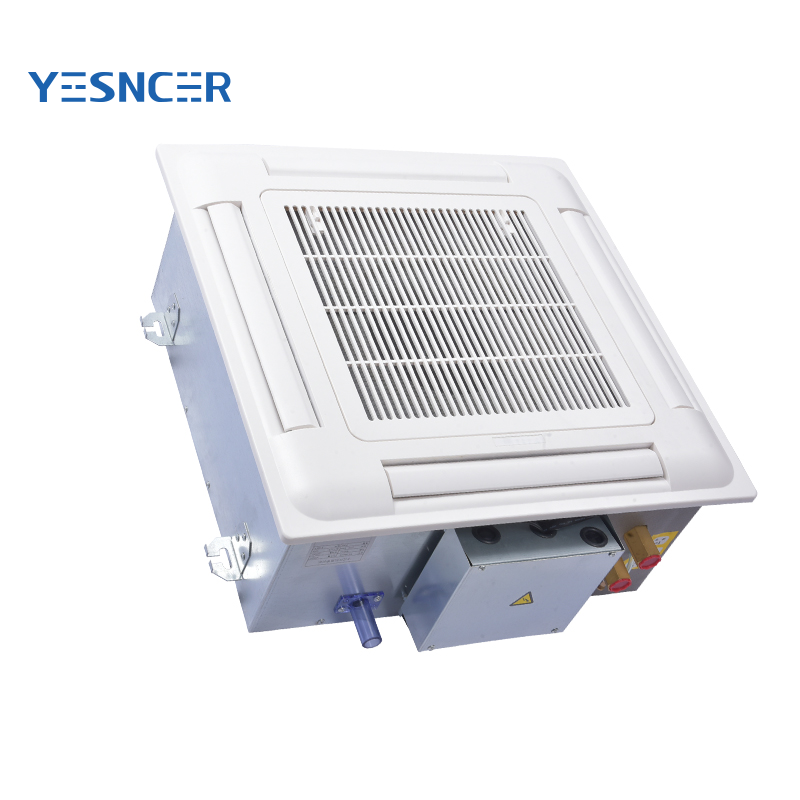

Cooling 30000 Btu Air Conditioner Fan Coil Unit Cassette Type AC
The pipe of water collecting head adopts forged brass structure, which is reliable and durable.
Circular heat exchanger design, wind uniformity, seamless copper tube and new high-efficiency corrugated double curved open window hydrophilic aluminum foil fin, optimize flow design and effectively improve heat transfer efficiency.
Foam insulation, thickening foam insulation layer inside the fuselage, not easy to produce condensation beads in summer, not easy to corrode, and extend the service life.
4-way cassette fan coil unit
|
Model and performance |
|
FP-34 |
FP-51 |
FP-68 |
FP-85 |
FP-102 |
FP-136 |
FP-170 |
FP-204 |
FP-238 |
|
Rated air flow m3/h |
high |
340 |
510 |
680 |
850 |
1020 |
1360 |
1700 |
2040 |
2380 |
|
Medium |
280 |
390 |
520 |
640 |
790 |
1030 |
1290 |
1500 |
1800 |
|
|
low |
180 |
260 |
350 |
430 |
520 |
690 |
860 |
1030 |
1200 |
|
|
Rated cooling capacity W |
high |
1980 |
|
3680 |
4980 |
5580 |
7200 |
9900 |
10800 |
12600 |
|
Medium |
1631 |
2279 |
2814 |
3750 |
4322 |
5534 |
7512 |
8088 |
9681 |
|
|
low |
1048 |
1519 |
1894 |
2519 |
2854 |
5534 |
5008 |
5554 |
6454 |
|
|
Rated heat W |
high |
2980 |
4800 |
5480 |
7200 |
8180 |
10800 |
14500 |
16200 |
18900 |
|
Medium |
2454 |
3671 |
4191 |
5421 |
6335 |
8179 |
11005 |
12353 |
14521 |
|
|
low |
1578 |
2447 |
2821 |
3600 |
4481 |
5479 |
7335 |
8482 |
9681 |
|
|
The input power |
W |
34 |
50 |
58 |
72 |
92 |
126 |
128 |
152 |
198 |
|
The amount of water m3/h |
0.42 |
0.52 |
0.62 |
0.86 |
0.98 |
1.08 |
1.58 |
1.78 |
1.92 |
|
|
Water press loss Kpa |
14 |
14 |
16 |
18 |
22 |
25 |
39 |
44 |
46 |
|
|
Motor number |
1 |
2 |
3 |
4 |
|
|||||
|
power |
220V~240/50HZ |
|||||||||
1. The rated air volume refers to the outlet static pressure of 0Pa.
2. Cooling operation parameters: inlet air dry bulb temperature is 27℃, humidity temperature is 19.5℃, outlet water temperature is 7℃, return water temperature is 12℃.
3. Heating condition parameters: inlet air dry bulb temperature is 20℃, inlet water temperature is 60℃, outlet water temperature is 50℃.
Pre-Sales Service
*Tell customers how to use our products and matters needing attention.
* Guide customers to choose the best and economic product, recover the investment within short time. .
* Site inspection if you need.
After-Sales Service
* If the project needs our installation guidance, we can send our engineer
and translator. We can also send customers installation video to teach them
how to fix and operate with our product.
*Usually, our product warranty is 36months after leaving factory . within
this months, all parts broken will be responsible for our factory.
