Quick Details
-
Panel Size:
-
32 / 43 / 49 / 55 / 65 / 75 inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
super thin floor standing digital signage kiosk
-
Pixel Pitch:
-
1080p / 2K / 4K, 0.227mm (H) x 0.227mm (W)
-
Product name:
-
kiosk,Wifi/3G Advertising Player Digital Signage
-
Resolution (pixel):
-
1920X1080 / 2K / 4K
-
Brightness:
-
300 - 400 cd/m2
-
View Angle:
-
178/178
-
Response Time:
-
6ms
-
Life (hrs):
-
50000
-
Type:
-
TFT
-
Input Voltage:
-
10V~240V
-
Contrast Ratio:
-
3000:1
Quick Details
-
Application:
-
Indoor
-
Brand Name:
-
Gemdragon Display
-
Color:
-
black, 16.7M
-
Panel Size:
-
32 / 43 / 49 / 55 / 65 / 75 inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
super thin floor standing digital signage kiosk
-
Pixel Pitch:
-
1080p / 2K / 4K, 0.227mm (H) x 0.227mm (W)
-
Product name:
-
kiosk,Wifi/3G Advertising Player Digital Signage
-
Resolution (pixel):
-
1920X1080 / 2K / 4K
-
Brightness:
-
300 - 400 cd/m2
-
View Angle:
-
178/178
-
Response Time:
-
6ms
-
Life (hrs):
-
50000
-
Type:
-
TFT
-
Input Voltage:
-
10V~240V
-
Contrast Ratio:
-
3000:1

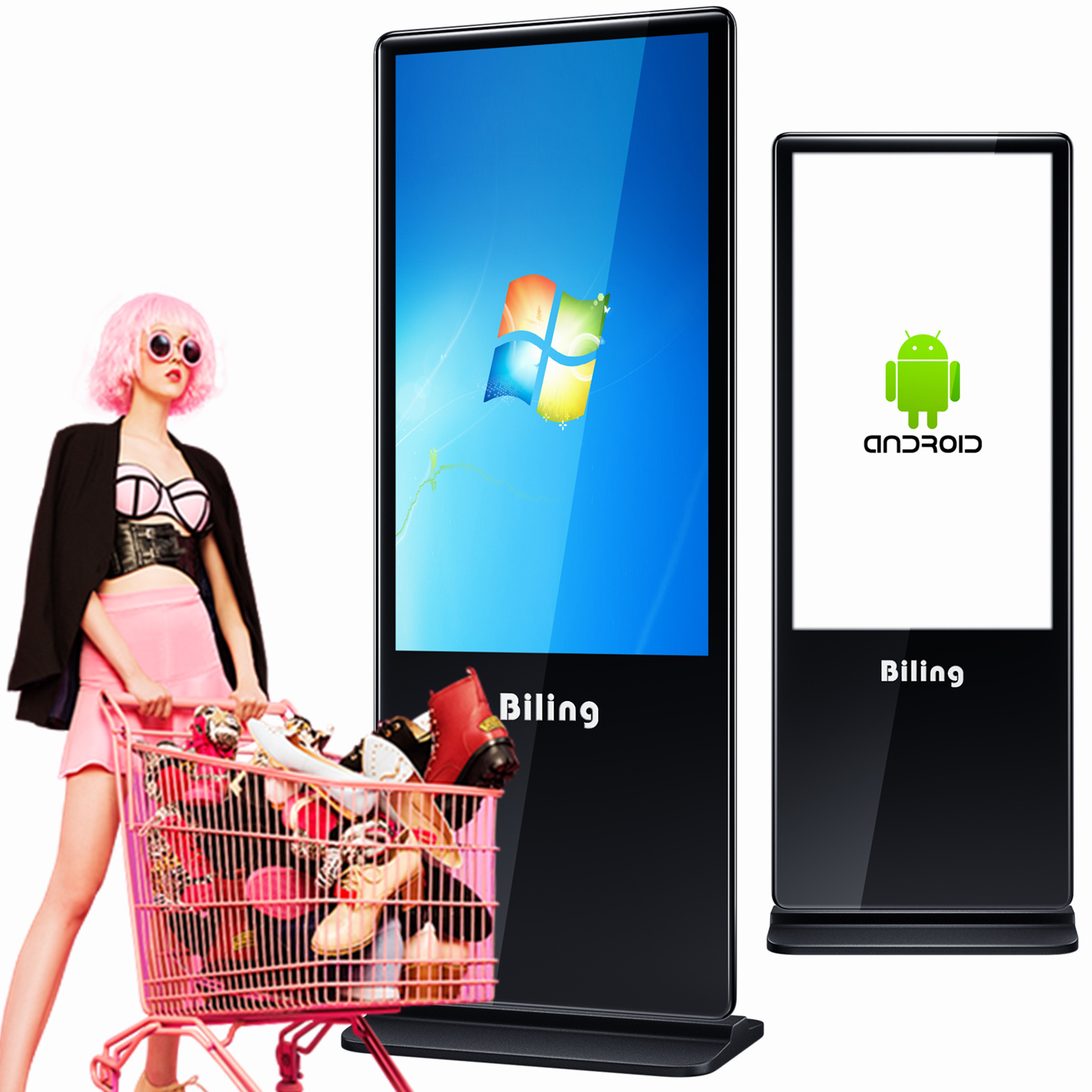

100"86"65"55 inch Indoor lcd Interactive/ ir touch digital signage frame Advertising screen Displays totem kiosk screen
Specification
Support OEM / ODM Infrared TOUCH ( optional ),
Thickness :3cm(or 2cm)
32 / 43 / 49 / 55 / 75 inch Screen can support
Stand-alone / Android / windows version optional
black , gold , silver ( optional )
Tips: The price of this link is the price of 32 inch super thin floor standing kiosk ( with touch screen )
Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.
|
Screen size
|
43" (
32 / 49 / 55 / 75 inch Screen can support
)
|
|
Resolution
|
1920 (RGB) × 1080 [FHD]
|
|
Display size
|
941.184 × 529.416 mm (H × V)
|
|
Visual size
|
945.18 × 533.42 mm (H × V)
|
|
Brightness (cd/m2)
|
300 - 400 (Typ.)
|
|
Best angle
|
full view
|
|
Viewing angle
|
89/89/89/89 (Min.) (CR ≥ 10)
|
|
Pitch
|
0.227mm (H) x 0.227mm (W)
|
|
Number of colors
|
16.7M/1.07B, 95% [CIE1931]
|
|
Screen weight
|
6.30Kgs (Typ./Max.)
|
|
Refresh rate
|
60Hz
|
|
Signal system
|
LVDS (2 ch, 10-bit), terminal, 51 pins
|
|
Supply voltage
|
12.0V (Typ.)
|
|
Maximum rating
|
Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C
|
|
Screen type
|
LCD module, a-Si TFT-LCD.
|
|
Pixel configuration
|
RGB vertical strip
|
|
Appearance size
|
975.5 × 582.2 × 10.5 (H × V × D)
|
|
Surface treatment
|
matte (Haze 3%), Hard coating (1H)
|
|
Contrast ratio
|
1100 : 1 (Typ.) [Transmission]
|
|
Optical mode
|
IPS, normally black display, transmissive
|
|
Response speed
|
6 (Typ.) (G to G) ms
|
|
Backlight type
|
WLED, 30K hours, no drive
|
|
CPU
|
RK3188, quad-core, frequency 1.6GHz
|
|
Memory
|
1 / 2G (optional)
|
|
Built-in memory
|
EMMC FLASH 8G (optional)
|
|
Built-in ROM
|
2KB EEPROM
|
|
Decoding resolution
|
up to 1080P
|
|
Operating system
|
Android 4.4 above
|
|
Play mode
|
support for the cycle, timing, spots and other playback modes
|
|
Network support
|
3G, Ethernet, WiFi support, wireless peripherals expansion
|
|
Video playback
|
support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
|
|
Picture format
|
support BMP, JPEG, PNG, GIF
|
|
USB2.0 interface
|
3 USB HOST, 3 USB socket
|
|
Serial port
|
3 serial socket
|
|
TVIn
|
CVBS input 2, support N, P standard
|
|
GPS
|
built-in GPS (optional)
|
|
WIFI, BT
|
built-in WIFI, BT (optional)
|
|
Ethernet
|
1, 10M / 100M adaptive Ethernet
|
|
Timing switch machine
|
support
|
|
Material
|
Glass thickness
|
|
Surface abrasion strength
|
strong, determined by the glass surface
|
|
Homogeneity
|
good
|
|
Design life
|
more than 5 years
|
|
Touch the fastest response speed
|
6ms
|
|
Touch the average reaction speed
|
8ms
|
|
Working voltage
|
4.5 ~ 5.5Vdc
|
|
Working current
|
≤120mA
|
|
Power
|
≤ 900mW
|
